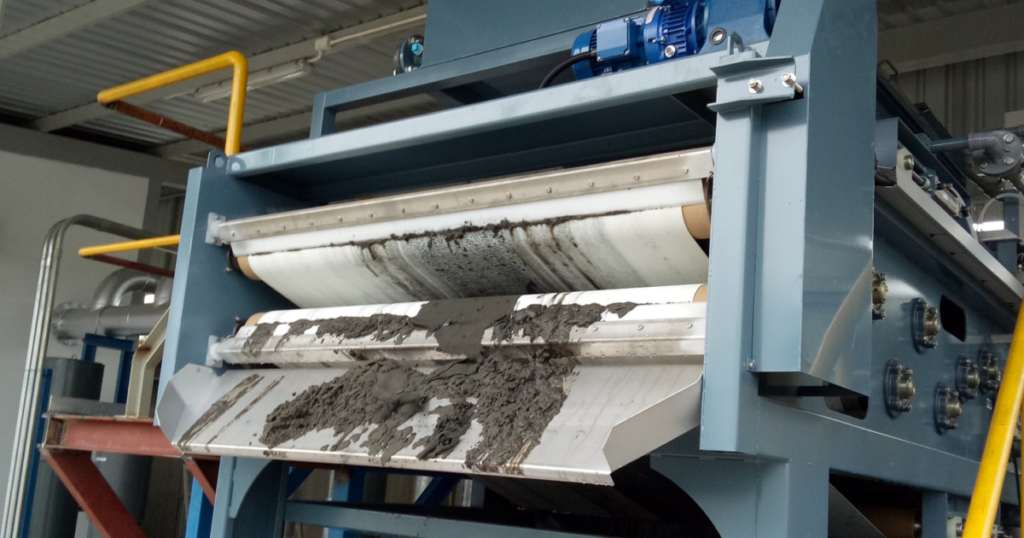

Belt Filter Presses in Wastewater Treatment: Maximizing Efficiency and Performance

Belt filter presses are commonly used in wastewater treatment plants to dewater biosolids. This process reduces the volume of the sludge, improving efficiency and reducing costs associated with its disposal. The technology behind belt filter presses includes squeezing the water out of the sludge between a series of belts that are textured or have rollers to apply pressure. By doing so, they separate the liquid, or filtrate, from the solids, which form a cake that can be easily handled and processed further.

The design and operation of belt filter presses require careful consideration to achieve optimal performance. Various types, each with specific features and modifications, are available to handle different kinds of sludge consistency and volume. Operational considerations such as conditioning the sludge with polymers can impact the effectiveness and cost-efficiency of the dewatering process. The environmental impacts are also an important consideration as the focus on sustainability drives improvements in biosolid management and resource recovery.

Key Takeaways

  • Belt filter presses reduce sludge volume, aiding in cost-effective disposal.
  • Design variations cater to different sludge types and dewatering needs.
  • Environmental considerations inform operational improvements in sludge management.

History and Development of Belt Filter Presses

The development of belt filter presses marked a significant advancement in the efficient management of wastewater. Initially, wastewater treatment relied heavily on gravity sedimentation processes, which were time-consuming and less efficient.

In the 1960s, the introduction of the first belt filter presses offered a new solution for sludge dewatering in wastewater treatment plants. The design was based on the principle of gradually applying pressure to sludge between two tensioned cloth belts, which allowed for greater dewatering capabilities than traditional methods.

Decade Development
1960s Introduction of first belt filter presses
1970s Enhancements in belt materials and press designs
1980s Integration of advanced automation for improved efficiency
1990s Focus on higher throughput and better filter belt tracking
2000s Implementation of environmentally-friendly technologies

Throughout the 1970s and 1980s, technological advancements in belt materials and press designs were introduced. These enhancements led to increased performance and ease of maintenance, making belt filter presses a popular choice in the wastewater industry.

The integration of computer automation during the 1980s allowed for more precise control over the dewatering process, as well as reduced labor requirements. By the 1990s, manufacturers focused on achieving higher throughput capacities, better filter belt tracking, and improved filtration efficiencies.

Today, modern belt filter presses embody advancements that emphasize energy conservation and reduced operational costs. Environmental considerations have also influenced the development of belt filter press technologies, steering the industry towards more sustainable dewatering solutions. The continued evolution of belt filter presses reflects the dedication of the wastewater industry to meet the demands of effective sludge management while adhering to environmental regulations.

Fundamental Principles of Belt Filter Press Operation

Belt filter presses in wastewater treatment are widely utilized for sludge dewatering, a critical process for reducing waste volume and weight. Understanding the fundamental principles of their operation is crucial for efficiency and effectiveness.

Initially, sludge conditioning’s role is vital. Sludge is often mixed with conditioners such as polymers, which promote effective dewatering by enhancing particle bonding. This step is crucial as it prepares the sludge for optimal moisture removal.

The operation of a belt filter press involves three primary stages: gravity drainage, wedge zone, and high-pressure shear zone. During the gravity drainage, free water is removed from the sludge, which is spread evenly across the width of the belt.

In the wedge zone, two belts converge to gently squeeze the sludge, allowing for further dewatering without disturbing the flocculated structure.

The final phase, the high-pressure shear zone, applies increased pressure through a series of rollers to maximize water extraction, producing a sludge cake with significantly reduced moisture content.

The pressure exerted by the rollers must be carefully controlled; excessive pressure risks damaging the belt and negatively impacts the sludge structure, whereas insufficient pressure will result in a wetter sludge cake.

Key variables impacting the performance of a belt filter press include:

  • Sludge characteristics: The type, composition, and consistency of sludge can greatly influence dewatering efficiency.
  • Polymer type and dose: The selection and dosage of the conditioner are tailored to the specific sludge.
  • Belt speed: Balancing the belt speed optimizes retention time and dewatering efficacy.
  • Belt tension: Proper tension is essential to maintain effective pressure and prevent belt slippage or misalignment.

Through precise control and monitoring of these factors, belt filter presses effectively reduce the volume and weight of the sludge, facilitating easier handling and disposal.

Design and Components

The design and components of belt filter presses in wastewater treatment are essential for efficient dewatering and solid-liquid separation. These systems are comprised of multiple integral parts working in harmony to manage the sludge produced during the treatment process.

Frame and Structural Aspects

The frame of a belt filter press is a robust structure that provides the necessary support for all other components. It’s typically made from strong metals like steel to withstand the demands of continuous operation. The structural aspects are designed to sustain the pressure and weight exerted by the machinery and the sludge it processes.

Filter Belts and Dewatering Process

At the heart of the machine, filter belts engage in the dewatering process. These belts are made from durable fabrics that filter solids from the liquid. As sludge is introduced on the belts, water is squeezed out through the fabric by rollers. The belts’ movement through the press allows for optimal removal of water, leaving behind a drier cake.

Drive Mechanisms and Rollers

Drive mechanisms enable the movement of the filter belts. This typically involves motors and gearboxes that provide the required torque for belt advancement. Rollers are spaced throughout the press, guiding, applying pressure, and supporting the belts as they transport the sludge through the dewatering zones, which are critical for effective moisture reduction.

Wash Systems and Filtrate Collection

A belt filter press includes wash systems that clean the belts after the dewatering phase to remove any adhering solids, maintaining efficiency and prolonging the belts’ life. Filtrate collection systems capture the water removed from the sludge, which is either discarded or sent back into the treatment process, depending on the level of contaminants present.

Types of Belt Filter Presses

Belt filter presses in wastewater treatment are typically categorized based on the method of dewatering or thickening the sludge. They are central to the effective management of sludge, enhancing the efficiency of wastewater treatment processes. Here are the types of belt filter presses used:

Gravity Belt Filter Presses

Gravity belt filter presses utilize gravity as the primary force for dewatering. Sludge is evenly distributed on a moving belt and passed over a series of rollers. During this stage, water starts to separate from the solids by gravity, which makes this type of press efficient in reducing the volume of the sludge.

Sludge Dewatering Presses

Sludge dewatering presses employ a combination of mechanical pressure and shearing forces to remove water from the sludge. The efficiency of these presses can be attributed to the use of high-pressure zones established through a series of progressively tighter rollers, which squeeze out moisture resulting in drier solids or “cake.”

Combination Systems

Combination systems integrate features of both gravity and dewatering belt filter presses. Initially, they utilize gravity to remove a portion of the free water, then mechanically press the sludge for further water removal. These systems are advantageous because they maximize water removal efficiency, thereby producing a drier end product.


The implementation of belt filter presses is an integral step in the wastewater treatment process, significantly impacting the manageability and reduction of waste volume.

Performance Metrics and Optimization

When evaluating Belt Filter Presses in Wastewater Treatment, performance metrics are crucial for gauging efficiency, optimizing operations, and ensuring cost-effectiveness.

Throughput and Efficiency

The throughput of a Belt Filter Press is measured by the volume of sludge processed per unit of time. High throughput is indicative of efficiency but must be balanced with the quality of output. Optimizing the speed of the belt, pressure applied, and the gradation of the filtration zones can enhance throughput without compromising the treatment quality.

Cake Dryness and Consistency

Cake dryness is a critical metric in determining the effectiveness of a Belt Filter Press. It refers to the percentage of solids in the sludge cake post-treatment. Operators aim for higher dryness levels to reduce disposal costs. Consistency in cake dryness is also essential, as it indicates a stable and reliable dewatering process. Optimization can be achieved by adjusting the polymer type and dose, the belt tension, and the press’s dwell time.

Polymer Usage and Conditioning

The use of polymers in conditioning the sludge is a vital component of the dewatering process. Efficient polymer usage helps form a firmer sludge cake and improves separation. Tracking the amount of polymer consumed relative to the sludge volume treated helps in optimizing the process for cost and performance. The key is to find the minimal effective dose that achieves the desired cake dryness and clarity of the filtrate.

Operational Considerations

For efficient operation of Belt Filter Presses in Wastewater treatment, attention to maintenance, training, and troubleshooting is essential. These elements ensure the longevity and effectiveness of the equipment.

Maintenance and Servicing

Belt Filter Presses require regular maintenance to operate at optimal efficiency. This includes the routine inspection and cleaning of belts and rollers, as well as the replacement of worn parts. It’s crucial to follow the manufacturer’s servicing schedule to prevent unexpected downtimes. For instance, tracking the belt tension and alignment can avoid extensive wear and tear. Moreover, regular lubrication of moving parts is essential to reduce friction and preserve the lifespan of components.

  • Weekly Tasks:
    • Inspect belt condition
    • Check for proper belt tracking
    • Lubricate bearings and rollers
  • Monthly Tasks:
    • Verify the integrity of the filter cloth
    • Examine the rollers for wear
    • Tighten bolts and connections

Operator Training and Safety

Operators of Belt Filter Presses must receive thorough training to handle the machinery effectively. They should be well-versed in operational procedures, safety protocols, and emergency responses. Ensuring operators are equipped with personal protective equipment (PPE), including gloves, goggles, and hearing protection, is a priority to maintain a safe working environment. Additionally, familiarization with the control systems and readouts enables them to adjust operations for different sludge types and conditions.

  • Key Training Components:
    • Control panel operation
    • Recognizing normal and abnormal machine sounds
    • Emergency stop procedures
    • Proper cleaning techniques

Troubleshooting Common Issues

When dealing with Belt Filter Presses, operators may encounter various issues that can affect performance. Common problems include belt misalignment, insufficient dewatering, and high filter cake moisture content. They should be able to identify signs of trouble, such as an off-center belt or abnormal noises, and understand how to resolve these issues swiftly. Keeping a detailed log of operations and maintenance can aid in diagnosing recurring problems, resulting in more effective troubleshooting.

  • Troubleshooting Tips:
    • Check belt alignment if the filter cake is uneven
    • Adjust plows or skirting to correct belt tracking
    • Review tension settings if the belt slips or has low pressure

Applications in Wastewater Treatment

Belt filter presses are essential tools for dehydrating sludge in wastewater treatment processes. They function by applying mechanical pressure to sludge through a series of progressively tighter mesh belts, effectively separating liquids from solids.

Municipal Wastewater Management

In municipal wastewater management, belt filter presses are commonly employed to condense the sludge generated from the biological treatment processes. This equipment is crucial for reducing the volume of sludge, which subsequently minimizes storage and disposal costs. The consistent, high-throughput operation makes them appropriate for treating the large volumes associated with municipal wastewater, which includes household sewage and runoff.

Municipalities may choose belt filter presses because they offer:

  • High efficiency: Achieving a significant reduction in moisture content
  • Low energy consumption: Compared to other dewatering methods
  • Facilitating easier handling and disposal of dewatered sludge

Industrial Effluent Processing

For industrial effluent processing, belt filter presses help manage waste generated from various industries like food and beverage, pharmaceuticals, and chemical manufacturing. These industries require reliable and effective methods to treat wastewater that contains a diverse mixture of solid waste and chemicals.

The use of belt filter presses in industrial settings can:

  • Tailor treatment processes to specific waste characteristics
  • Provide compliance with environmental regulations by ensuring that the treated effluent meets required standards before discharge or reuse
  • Offer a cost-effective solution for sludge dewatering, by reducing the volume and weight of waste, leading to lower transportation and disposal costs

Environmental Impact and Sustainability

Belt filter presses are instrumental in the wastewater treatment process. They serve to dewater sludge, reducing its volume and weight, which in turn minimizes the environmental footprint associated with its disposal.

Energy Efficiency: One of the key sustainable aspects of belt filter presses is their energy efficiency. These systems require less energy to operate compared to other dewatering methods, such as centrifuges, making them a more sustainable option within wastewater treatment facilities.

Reduced Greenhouse Gases: By lowering sludge volume, belt filter presses reduce the amount of material sent to landfills. Consequently, this diminishes methane emissions—a potent greenhouse gas—resulting from the decomposition of organic material in landfills.

Materials and Waste Management:

  • Construction materials: Belt filter presses are often made of stainless steel, which offers durability and the potential for recycling.
  • Waste reduction: Effective dewatering results in a smaller quantity of waste, simplifying transport and reducing associated carbon emissions.

In terms of pollutant management, these systems are part of a larger strategy to ensure that solids and associated contaminants are efficiently removed from wastewater. Alongside proper operation, belt filter presses contribute to the protection of aquatic ecosystems by reducing the potential for water pollution.

Additionally, advancements in technology have led to more automated and refined control of belt filter presses, enhancing their effectiveness and further reinforcing their role in sustainable wastewater management.

Advancements and Future Trends

Recent advancements in belt filter press technology have largely focused on improving the efficiency and effectiveness of dewatering municipal wastewater sludges. The incorporation of higher speeds and automated controls in centrifuge operations has been a significant development, enhancing the operational performance of belt filter presses.

Innovations in the industry are also aiming towards the optimization of filter materials and structures, which are crucial in achieving higher solid capture rates and reducing moisture content. With the push for sustainability, future trends suggest a movement towards energy-efficient designs that require less maintenance and promote longer service lives.

Advancements in solids treatment and disposal systems are evident in the creation of comprehensive checklists that ensure designers have the necessary information to create highly efficient wastewater management systems. This focus on precise planning and implementation stands as an essential factor for the future of belt filter presses in wastewater management.

Future trends indicate that there might be a shift towards integrating smart technology into belt filter press operations. The real-time monitoring and adjustment of filtration processes through IoT (Internet of Things) could lead to more adaptive and responsive systems.

Furthermore, manufacturers are likely to continue researching and developing more effective mechanical separation processes. This will enhance the separation efficiencies of not just belt filter presses but also other mechanisms involved in the treatment of waste solids, which is imperative for the conservation of water resources.

Regulations and Standards

Belt filter presses are essential in the wastewater treatment process, allowing for the efficient dewatering of biosolids. They are subject to a range of regulations and standards to ensure they operate safely, effectively, and in an environmentally responsible manner.

In the United States, the Environmental Protection Agency (EPA) sets forth guidelines that include operations, maintenance, and costs. For instance, the EPA’s Fact Sheet specifically for belt filter presses highlights these considerations. Operational efficiency and maintenance protocols must adhere to the agency’s stringent requirements to mitigate environmental impact.

Given the complexity of wastewater treatment, industry standards also come into play. These standards dictate specifics such as:

  • Design requirements
  • Safety measures
  • Operational procedures
  • Inspection routines

Local regulations may further dictate how belt filter presses should be managed. These can include:

  • Spacing requirements: ensuring adequate distance from protected areas
  • Disposal policies: proper handling of waste products
  • Noise regulations: adherence to local noise ordinances

Various safety protocols, documented by agencies like the Mine Safety and Health Administration (MSHA), must be followed to protect workers from the mechanical and operational hazards that can arise from using a belt filter press.

Facilities need to stay current with these regulations and standards to avoid legal repercussions and to maintain efficient and environmentally sound operations.

Frequently Asked Questions

What are the different types of belt filter presses used in wastewater treatment?

There are various belt filter presses designed to meet the specific needs of wastewater treatment, including standard, high-performance, and heavy-duty presses. The selection is typically based on the type of sludge, the desired dryness of the cake, and the procession rate.

How does a belt filter press operate in the wastewater treatment process?

A belt filter press operates by applying mechanical pressure to sludge through a series of progressively tight rollers. During this process, free water is separated from the solids in the sludge, resulting in a concentrated and dry cake ideal for disposal or further processing.

What are the primary advantages and disadvantages of using belt filter presses for dewatering in wastewater treatment?

Advantages of belt filter presses include continuous operation, high throughput, and a relatively lower cost of ownership. Disadvantages encompass the requirement for skilled operation, regular maintenance, and the potential need for preconditioning chemicals to improve dewatering.

How does the working principle of a belt filter press differ from a traditional filter press?

While traditional filter presses rely on high pressure exerted over batch cycles to dewater sludge, belt filter presses continuously dewater sludge using a combination of gravity drainage and progressively increased roller pressure, allowing for more consistent and controlled processing.

Can you explain the main factors affecting the performance of a belt filter press in wastewater applications?

The performance of belt filter presses can be affected by factors including sludge characteristics, feed solids concentration, polymer type and dosage used for sludge conditioning, belt speed, and the pressure applied through the rollers.

What maintenance procedures should be followed to ensure optimal operation of belt filter presses?

To ensure optimal operation, belt filter presses should undergo routine inspections for wear and damage, regular cleaning of belts and rollers, and lubrication of moving parts. Adherence to the manufacturer’s guidelines and prompt replacement of worn components are also essential for maintaining performance.
