Packed Column DAF: Advancing Water Treatment Efficiency

Packed column DAF, or Dissolved Air Flotation, is an innovative water treatment technology that efficiently separates contaminants from water. DAF systems are particularly effective for the removal of solids, oils, and greases that are lighter than water and thus can be floated to the surface with the aid of fine air bubbles. Packed column DAF systems utilize a tower packed with media, which provides a large surface area for the attachment of air and suspended solids.

The operational principle of packed column DAF relies on the fine bubbles of air generated under pressure, which attach to the solid contaminants in the water causing them to float. These systems are designed to optimize the contact time between air bubbles and contaminants, leading to higher flotation rates and superior water quality. These DAF units are used in a variety of industrial applications, including municipal wastewater treatment, food and beverage processing, and petrochemical industries.

Key Takeaways

  • Packed column DAF is effective for removing contaminants that have a propensity to float.
  • Its design optimizes contact time between air bubbles and solids for improved water treatment.
  • The technology is versatile and applicable across multiple industries for water purification.

Principles of Dissolved Air Flotation

Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by the removal of suspended matter such as oil, grease, or solids. It employs the principle of air dissolution under pressure and subsequent release, creating microbubbles that attach to particulate contaminants, causing them to float to the surface.

Fundamentals of DAF

The foundational concept of Dissolved Air Flotation involves the solubility of air in water under elevated pressure. When water is pressurized, the amount of air that water can hold in solution increases. As pressure is reduced, the air becomes supersaturated, and microbubbles form. These bubbles attach to the surface of the suspended matter, reducing the overall density of the particles and allowing them to ascend to the water’s surface.

Role of Air in Flotation

Air is the central agent in the DAF process. Its role is essential in the formation of microbubbles that interface with contaminants. The effectiveness of flotation is directly proportional to the number and size of the air bubbles, with smaller bubbles providing a larger surface area for adhesion, and facilitating effective flotation of finer particles.

Saturation and Release System

A saturation and release system is a critical component in a Packed Column DAF. It consists of:

  1. Saturation Tank: Water is pressurized in the tank, allowing air to dissolve until the water becomes saturated. Conditions such as temperature and pressure within the tank are tightly controlled to optimize air dissolution.
  2. Release Mechanism: When the pressurized water is released to atmospheric pressure in the flotation tank, microbubbles form. The size of these bubbles can be influenced by factors such as the rate of pressure release and the design of the release mechanism.

Packed Column DAF systems specifically employ a packing material that enhances contact between water and air, fostering a more effective saturation process. The packing material increases the surface area available for air to dissolve into the water, leading to a more efficient generation of microbubbles upon depressurization.

Packed Column DAF Design

Packed Column Dissolved Air Flotation (DAF) systems are critical for removing contaminants and ensuring water purity. The design of such systems incorporates careful consideration of the column structure, selection of packing materials, and flow configuration to optimize the treatment process.

Column Construction

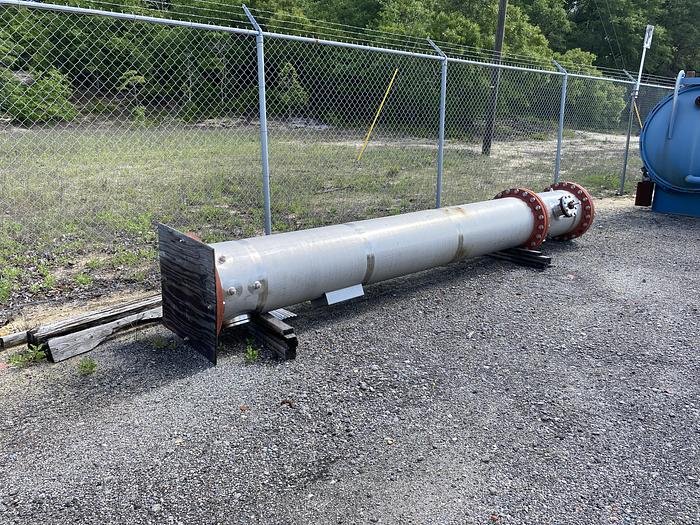

The column in a Packed Column DAF system is typically cylindrical and engineered for durability to withstand operating pressures. Materials such as stainless steel or reinforced plastics are commonplace. The height and diameter of the column are calculated based on the desired capacity and flow rates, ensuring efficient contact between water, air, and packing material.

Packing Material Types

The packing material plays a pivotal role in the effectiveness of a Packed Column DAF system. The types of packing materials often include plastic or metal structured packing, random packings such as Raschig rings, and various types of pall rings or saddle packings. Each packing type offers a different surface area and void space, affecting the overall removal efficiency and contact time with contaminants.

Flow Configuration

In Packed Column DAF systems, the flow configuration is essential for uniform distribution and contact of wastewater with the air bubbles. Counter-current, co-current, and cross-flow are typical configurations, with counter-current being the most efficient for gas-liquid contact. Proper design ensures the maximization of the flotation process, leading to effective separation and removal of contaminants.

Operational Aspects

In the context of Packed Column Dissolved Air Flotation (DAF) systems, successful operation hinges on specific parameters that are essential for efficient water treatment. These include the quality of feed water, the precise air-to-solids ratio, and the carefully controlled pressure and retention time.

Feed Water Quality

Packed Column DAF systems require feed water of a certain quality to function effectively. Impurities such as volatile organic compounds (VOCs) must be within treatable limits. The presence of oil, grease, and suspended solids impacts the system’s efficiency. Pre-treatment processes may be necessary to ensure that the feed water quality is adequate for the air stripping and flotation processes.

Air to Solids Ratio (A/S)

The Air to Solids Ratio (A/S) is critical in Packed Column DAF systems for the formation of microbubbles, which facilitate the flotation of contaminants. An optimal A/S ratio ensures the formation of a sufficient number of small bubbles, improving the removal efficiency of suspended particles while minimizing the use of air, which is both an operational cost and a system performance variable.

Pressure and Retention Time

In the Packed Column, DAF systems, pressure, and retention time are closely monitored and controlled to ensure peak performance. The systems operate under elevated pressures, which are necessary for dissolving air into the water. Once released, the air forms microbubbles that attach to particles, aiding in their separation from the water. The retention time within the packed column must be enough to allow for the proper contact between air and solids, yet short enough to prevent unnecessary delays in the treatment process.

The successful operation of a Packed Column DAF system relies on understanding and controlling these operational aspects to achieve the desired water quality output.

Applications of Packed Column DAF

Packed Column Dissolved Air Flotation (DAF) systems are essential for removing suspended solids and clarifying water and wastewater. Through a combination of air bubbles and packing material, these systems effectively separate contaminants and enhance purification processes across various industries.

Water Treatment

In water treatment, Packed Column DAF is instrumental in the removal of algae, oil, and fine particles from surface water, making it safer for human consumption. It operates by releasing dissolved air into the column packed with media, which facilitates the attachment of air bubbles to particles, causing them to float to the surface for easy removal.

Wastewater Treatment

For wastewater treatment, this technology is used to treat industrial effluent and municipal wastewater. The process excels at reducing biochemical oxygen demand (BOD), and chemical oxygen demand (COD), and removing suspended solids and oil, significantly lowering the pollutant load before the effluent is discharged or undergoing further treatment.

Industrial Processes

Packed Column DAF systems find extensive use in various industrial processes, including the food and beverage sector, petroleum refining, and chemical manufacturing. They serve a critical role in treating process water and wastewater, ensuring compliance with environmental regulations, and aiding in water reuse and recycling efforts.

Performance and Efficiency

The performance and efficiency of Packed Column Dissolved Air Flotation (DAF) systems are pivotal aspects determining their success in treating wastewater. These systems are designed to achieve high removal rates of contaminants, with specific operational parameters influencing their functionality. Effective monitoring and control are essential for maintaining optimal performance.

Removal Efficiency

The removal efficiency of Packed Column DAF systems is gauged by their ability to separate and remove various contaminants such as oils, solids, and organic materials. One of the standout points of these systems is their capability to consistently achieve high removal rates. Studies have shown that when properly designed and operated:

  • Packed Column DAF can remove up to 95% of Total Suspended Solids (TSS).
  • They are also highly effective in separating free oils and greases.

Operational Parameters

Several operational parameters are critical to the functioning of Packed Column DAF systems. They include:

  • Hydraulic Loading Rate: This determines the volume of water treated over time and directly impacts efficiency.
  • Air to Solids Ratio (A/S): An optimal ratio is crucial for effective flotation and separation processes.
  • Recycle Rate: It influences the amount of treated water that is reintroduced to the system, affecting the formation of microbubbles and overall effectiveness.

Each of these parameters must be carefully managed to maintain the system’s performance.

Monitoring and Control

Effective monitoring and control of Packed Column DAF systems are essential for sustained operation:

  • Regular monitoring of influent and effluent quality helps in adjusting the operational parameters as required.
  • Control mechanisms may include automated sensors and software systems that adjust flows and pressures in real time.
  • The use of activated carbon in treatment, as mentioned in an EPA guide, can further enhance the process by treating VOC vapors post-stripping.

These systems must be continuously overseen to respond to changing conditions and input variations.

Maintenance and Troubleshooting

The efficient operation of Packed Column Dissolved Air Flotation (DAF) systems requires diligent maintenance and the ability to address issues promptly. This section outlines effective practices for routine upkeep, identifies common problems encountered with these systems, and provides strategies for troubleshooting.

Routine Maintenance

Proper routine maintenance of a Packed Column DAF system is crucial for its longevity and effectiveness. Common maintenance tasks include:

  • Inspection and Cleaning: Operators should regularly inspect and clean the injection nozzles and packing material to prevent clogs and maintain adequate gas-to-liquid contact.
  • Pressure Checks: Periodic checks of the system pressure are vital to ensure that the DAF is operating within the recommended limits.
  • Calibration: Regular calibration of instrumentation, such as flow meters and pressure gauges, ensures accurate monitoring and control of the DAF process.

Common Issues

Packed Column DAF systems may encounter a range of operational issues, such as:

  • Filtration Problems: Clogged or fouled packing material can lead to decreased efficiency in contaminant removal.
  • Pressure Fluctuations: Excessive variation in system pressure can disrupt the dissolved air saturation process, impacting flotation performance.

Troubleshooting Strategies

When troubleshooting a Packed Column DAF, operators can follow these strategies to identify and correct common problems:

  1. System Assessment:
    • Begin with a comprehensive assessment of the system, checking for any visual signs of wear, leakage, or damage in the components.
  2. Performance Analysis:
    • Compare the current operational data against the system’s design specifications to pinpoint deviations.
  3. Step-by-Step Approach:
    • Methodically inspect each critical component – from the air compressors and saturation vessel to the aeration system and flotation tank – to avoid missing potential issues.

By adhering to a strong maintenance routine and adopting a systematic troubleshooting approach, operators can uphold the efficiency and reliability of Packed Column DAF systems.

Regulations and Standards

When implementing Packed Column Dissolved Air Flotation (DAF) systems, adherence to environmental regulations, industry standards, and safety protocols is crucial for lawful and efficient operations.

Environmental Compliance

Packed Column DAF systems are subject to stringent environmental regulations aimed at the treatment and discharge of industrial and municipal wastewater. Operators must ensure compliance with the Clean Water Act (CWA) and the guidelines set by the U.S. Environmental Protection Agency (EPA). These regulations address the control of pollutants in wastewater streams and require appropriate permitting. Operators can refer to the Community Guide to Air Stripping provided by the US EPA for details on volatile organic compound (VOC) removal, which is closely related to the DAF process.

Industry Standards

The design and operation of Packed Column DAF units must conform to established industry standards. These standards cover various aspects, including equipment design, performance criteria, and maintenance practices. Entities like the American Water Works Association (AWWA) and ASTM International have developed relevant standards, ensuring that systems are efficient and reliable. The adherence to industry standards not only safeguards the system’s performance but also guides operators in maintaining system integrity and consistent treatment quality.

Safety Protocols

Safety protocols are essential for the operation of Packed Column DAF systems due to the involvement of pressurized vessels and potential exposure to hazardous materials. Regular safety audits, proper training for operators, and the use of personal protective equipment (PPE) are mandatory aspects. Facilities should implement protocols that adhere to the Occupational Safety and Health Administration (OSHA) guidelines to preclude workplace accidents and to ensure the safe handling of chemicals and equipment. These measures protect both the workers and the environment from potential hazards associated with the DAF treatment process.

Advancements and Innovations

In the field of water treatment, Packed Column Dissolved Air Flotation (DAF) systems have seen significant progress through various technological advancements and new applications supported by ongoing research and development efforts.

Technological Advancements

Improved Packing Materials: Modern Packed Column DAF systems utilize advanced packing materials that enhance the contact efficiency between air and water. These materials often have increased surface area, promoting the formation of microbubbles essential for effective flotation.

Automation and Control Systems: The integration of sophisticated control systems has allowed for more precise regulation of air injection and saturation, leading to improved performance and consistency in the removal of suspended solids.

Emerging Applications

Industrial Wastewater Treatment: Packed Column DAF technology is being increasingly applied in industries such as pharmaceuticals and food processing due to its effectiveness in treating high-strength waste streams.

Aquaculture: These systems are also emerging as an important tool for managing water quality in fish farming operations, where maintaining optimal conditions is critical for fish health and growth.

Research and Development

New Designs: Research is being conducted to optimize the column design, allowing for more compact DAF units that can handle larger volumes of water with higher efficiency.

Environmental Impact Studies: Studies are underway to understand the long-term environmental impacts of Packed Column DAF systems, ensuring that they meet stringent regulatory standards.

Case Studies and Real-world Examples

Packed Column Dissolved Air Flotation (DAF) systems have a proven track record in various applications. The following subsections detail how they have been effectively utilized in municipal and industrial settings, and how they have been engineered to enhance flotation efficiency.

Municipal Water Treatment

Packed Column DAF systems have demonstrated their effectiveness in municipal water treatment plants. For instance, a treatment facility in Virginia successfully incorporated this technology to reduce the levels of suspended solids and algae in its drinking water supply. The packed column design allowed for a smaller footprint and a higher rate of contaminant removal compared to traditional DAF systems.

Industrial Wastewater Management

In industrial wastewater management, packed column DAF systems offer significant advantages. A notable application includes a chemical manufacturing plant where the DAF system was utilized to separate and remove various emulsified oils and suspended particles from their wastewater stream before discharge, ensuring compliance with local environmental standards.

Enhancing Flotation Efficiency

Packed Column DAF systems are specifically engineered to enhance flotation efficiency in a variety of contexts. By increasing the contact time between air and water, they promote the formation of smaller air bubbles, which attach to particles more effectively. This results in improved separation and a clearer effluent. For example, a food processing plant implemented a packed column DAF to increase the removal efficiency of organic waste from its process water, thereby improving overall water quality and reuse within the facility.

Frequently Asked Questions

How do packed columns function in dissolved air flotation systems?

Packed columns enhance the effectiveness of DAF systems by facilitating the formation of microbubbles. These bubbles attach to the suspended matter in the water, causing them to rise to the surface for easier removal.

What are some common maintenance challenges associated with DAF systems?

Maintenance challenges for DAF systems typically involve the regular cleaning of the flotation tank to prevent fouling and ensure the reliability of the air injection and bubble formation mechanisms.

How does pre-treatment affect the performance of a DAF system in water treatment?

Pre-treatment processes, such as coagulation and flocculation, are critical for optimizing the performance of DAF systems. They help to aggregate particles, making them more amenable to separation by the microbubbles in the flotation process.

In what ways does the DAF process contribute to wastewater management?

DAF systems are a key component in reducing solids and oil and grease levels from wastewater. Their efficiency in removing fine particles and colloidal substances makes them an essential step in the treatment and purification of industrial and municipal wastewater streams.
