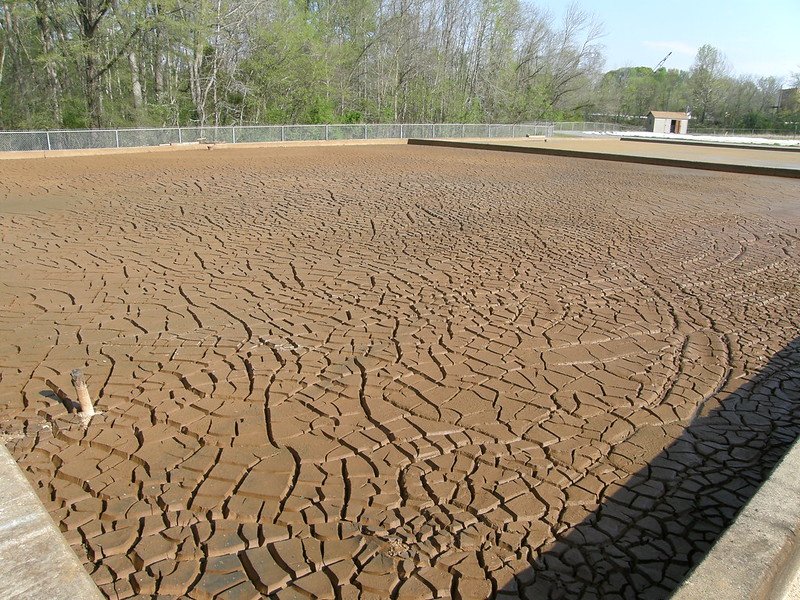

Drying Beds in Wastewater Treatment: An Overview of Sludge Management Techniques

Drying beds in wastewater treatment are an essential component for the efficient management and recycling of the byproducts of treated water. They operate on a relatively simple principle: separating solids from the liquid in sludge and then allowing the water content to evaporate, leaving behind dried solids that can be disposed of or repurposed. The effectiveness of drying beds comes from both their simplicity and their ability to handle various types of sludges. Commonly utilized in municipal and industrial wastewater treatment plants, these beds are designed to be a cost-effective solution for sludge dewatering.

The design and operation of drying beds require careful consideration to achieve optimal performance and efficiency. The types of drying beds, including sand drying beds and paved drying beds, each offer distinct advantages and can be selected based on specific treatment needs. Ensuring the proper functioning of these beds is not just about achieving drier sludge; it is also about addressing health and safety concerns and mitigating environmental impacts. Regular maintenance and monitoring are integral to the operation of drying beds, preventing issues such as odor generation or the harboring of pathogens.

Key Takeaways

  • Drying beds aid in separating solids from wastewater, reducing volume and facilitating disposal.
  • They vary in type and design, tailored to meet the requirements of different wastewater treatments.
  • Proper maintenance is crucial for performance, safety, and environmental protection.

Fundamentals of Drying Beds

Drying beds are a simple yet effective means to remove moisture from sludge in wastewater treatment. They leverage natural processes to achieve solid-liquid separation.

History and Development

Sludge drying beds have been used for centuries, evolving from simple sun-baked plots to more sophisticated engineered systems. The need to manage sludge in an economical and environmentally friendly way propelled the development of various designs.

Basic Principles

The basic principles of drying beds revolve around dewatering sludge through a combination of drainage and evaporation. Typically, a drying bed consists of several layers:

  1. Gravel support layer: Supports the sand layer and prevents clogging
  2. Sand drainage layer: Facilitates the drainage of the filtrate
  3. Sludge layer: The sludge applied to be dried

Drying is facilitated by percolation through the layers and evaporation due to sun and wind. The moisture content of the sludge is reduced until it reaches a solid form that is easy to handle. The effectiveness of these beds can be influenced by factors such as the type of sludge, climatic conditions, and bed maintenance practices.

Types of Drying Beds

In the context of wastewater treatment, drying beds are an essential method for separating sludge from water. They are generally categorized into two main types: Sludge Drying Beds and Planted Drying Beds. Each type employs distinct mechanisms and is designed for specific scenarios and capacities within wastewater management facilities.

Sludge Drying Beds

Sludge Drying Beds are the conventional approach used for dewatering sludge. They typically consist of a layer of sand and gravel that acts as a filter. The sludge is applied to this filtration medium and allowed to dry through a combination of evaporation and seepage. As the water content in the sludge decreases, it undergoes volume reduction and weight loss, resulting in a semi-solid cake that can be removed for disposal or further processing. The key factors in the effectiveness of Sludge Drying Beds are the weather conditions, particularly the presence of sunlight and wind, as well as the initial properties of the sludge.

Planted Drying Beds

Planted Drying Beds, also known as Reed Beds, utilize vegetation, commonly reeds, to enhance the drying process. The roots of the plants create channels within the sludge, increasing the porosity and aeration, which significantly aids in dewatering and stabilizing the sludge. These beds not only remove water but also contribute to the degradation of organic matter within the sludge due to the microbial activity associated with the root system. Planted Drying Beds are especially advantageous in that they can improve the aesthetics of a treatment facility and offer a more natural appearance. They serve as a habitat for wildlife and can contribute to the local ecosystem’s biodiversity.

Design Considerations

When designing drying beds for wastewater treatment, it is crucial to consider specific factors that ensure efficient operation and maintenance. These factors include the dimensions and capacity of the beds as well as the selection of suitable materials for construction and drainage.

Size and Loading Rates

The size of a drying bed is closely tied to its loading rate, which should be optimized to ensure effective drying while preventing leaching or overflow. The EPA’s Primer for Municipal Wastewater Treatment Systems illustrates that the area of the drying bed needs to accommodate the volume of sludge produced, with a safety margin for peak events.

  • Depth: Typically, beds are designed with a sludge depth of 20 to 30 centimeters.
  • Loading Rates: The application rate is usually calculated based on the dry solids loading, generally ranging from 100 to 250 kg of dry solids per square meter annually.

It is important to adjust the size and loading rates based on climatic conditions, expected sludge characteristics, and drying times to ensure the beds function at maximum efficiency.

Drainage and Construction Materials

Drainage materials are selected based on compatibility with sludge and longevity. A well-designed drainage system is essential for removing excess liquids to facilitate proper drying.

  • Underdrains: Often made from PVC pipes or gravel, positioned to ensure uniform liquid collection and removal.
  • Sand and Gravel Layers: Efficient drainage systems incorporate graded layers of sand and gravel above the underdrains, a practice detailed in the Municipal Wastewater and Sludge Treatment document by the EPA.

Construction materials for the drying beds should withstand the harsh chemical environment of sludge:

  • Walls: Typically built of concrete to provide sturdy containment.
  • Liner Materials: Options include clay and synthetic materials, which must ensure groundwater protection.

The choice of construction and drainage materials should achieve a balance between cost-effectiveness and longevity, factoring in the specific characteristics of the wastewater and sludge they will handle.

Operation of Drying Beds

Drying beds are an essential component in the wastewater treatment process, utilized for dewatering and mineralizing the sludge. They are simple to operate, but careful attention to the method of sludge application and regular monitoring is crucial for optimal performance.

Sludge Application Method

Sludge is typically applied to drying beds in a uniform and controlled manner to ensure even drying and maximum efficiency. The thickness of the sludge layer is critical; operators aim for a balance that is neither too thin, which would be inefficient, nor too thick, which could impede evaporation and percolation. Past practices suggest an optimal sludge depth of approximately 20 to 30 centimeters. Once applied, the sludge is allowed to dry through a combination of evaporation and percolation. Gravitational water drains through the bed media, while evaporation assists in removing moisture from the top layer of the sludge.

Monitoring and Maintenance

Regular inspection is vital for maintaining the effectiveness of drying beds. Operators monitor the moisture content of the sludge, the weather conditions, and any signs of clogging within the bed’s drainage system. It is crucial to check the integrity of the bed’s media and underdrain system to ensure proper filtration and effluent removal. Scheduled maintenance may include the removal of the dried sludge, which is crucial for freeing up space for additional cycles of sludge application. The frequency of sludge removal depends on the rate of drying, which can be influenced by climatic conditions and the inherent characteristics of the sludge itself.

Performance and Efficiency

Drying beds in wastewater treatment is a cost-effective method for reducing sludge volumes and preparing residuals for final disposal. The efficiency of these systems relies on well-understood dewatering mechanisms and numerous factors that can impact their performance.

Dewatering Mechanisms

Drying beds utilize evaporation and drainage as their main dewatering mechanisms. After wastewater sludge is applied to the bed, water begins to percolate through the sand and gravel layers beneath, effectively separating the liquid from the solids. Over time, evaporation of the remaining moisture occurs, further drying the sludge. The simplicity of this process contributes to the high effectiveness of drying beds, especially in climates conducive to rapid evaporation.

Factors Affecting Performance

Several factors influence the performance of drying beds in wastewater treatment:

  • Climatic Conditions: Temperature, humidity, and wind play a crucial role in the evaporation rate. Higher temperatures and wind speeds promote quicker drying, while high humidity can slow the process significantly.
  • Sludge Characteristics: The type and consistency of sludge determine how easily water can be removed. Thin, uniform layers of sludge with low organic content generally allow for better drainage and quicker drying.
  • Bed Design: Optimal design, including the size of the bed and the materials used for the drainage layer, can enhance the efficiency of moisture removal. Poor design may lead to clogging and inefficient dewatering.
  • Loading Rates: Applying the appropriate amount of sludge, in terms of both volume and frequency, ensures that the beds can function effectively without becoming overloaded.
  • Maintenance Practices: Regular cleaning and raking of the sand surface are necessary to maintain infiltration rates and avoid the development of a hard crust on the drying bed, which can impede drying.

Understanding and managing these factors are critical for maximizing the efficiency of drying beds in wastewater treatment facilities.

Health and Safety Concerns

In the context of drying beds in wastewater treatment, health and safety concerns primarily involve mitigating the exposure to pathogens and controlling odors that arise during the sludge drying process. These issues need to be addressed to protect workers and the surrounding community.

Pathogen Reduction

Drying beds are designed to dewater sludge, which often contains a variety of pathogens such as bacteria, viruses, and parasites. Proper pathogen reduction is critical. Operational procedures should ensure that:

  • The sludge is dried to achieve a sufficient reduction in moisture content, which helps to limit pathogen survival.
  • Exposure to undried sludge is minimized, and personal protective equipment (PPE) is used by personnel handling the material.

Odor Control

Odor control is another significant health and safety concern:

  • The decomposition of organic material in the sludge can produce unpleasant odors, typically those of hydrogen sulfide and ammonia.
  • Effective strategies should be employed to minimize these odors, such as ensuring a proper aeration rate and adding odor-neutralizing agents when necessary.

Control measures must be in place to protect against health risks and deliver a treatment process that is both effective and safe.

Environmental Impact

Drying beds in wastewater treatment are essential in minimizing the environmental footprint of sewage disposal by reducing the volume and weight of sludge. They aid in transforming sludge into a more stable form suitable for disposal or application as fertilizer.

Sustainable Practices

When drying beds are utilized in wastewater treatment, they leverage the natural processes of evaporation and percolation. This method is energy-efficient as it reduces the reliance on mechanical means for dewatering sludge. A well-maintained drying bed setup minimizes the release of odors and contaminants, which is conducive to a healthier ecosystem. Additionally, the resultant biosolids can often be repurposed in agriculture, thus closing the nutrient loop and contributing to sustainable land management.

Regulatory Compliance

Wastewater treatment plants employing drying beds must adhere to stringent regulatory standards to minimize harmful effects on the environment. These regulations dictate the acceptable levels of pathogens, heavy metals, and organic pollutants in the treated biosolids. Compliance ensures that biosolids are safe for disposal or land application, protecting soil health as well as water quality. Regular monitoring and reporting are typically mandated to ensure these standards are continuously met, safeguarding environmental integrity.

Case Studies

This section showcases specific instances where drying beds have been implemented in wastewater treatment. It examines both the triumphs and the hurdles encountered, providing insight into practical applications and problem-solving strategies in the field.

Success Stories

Sludge Drying Beds, a low-cost and low-energy solution for sludge dewatering in wastewater treatment plants, have seen numerous success stories around the globe. These systems are praised for their straightforward design and the high-quality, reusable end product they often yield.

  • Municipality A: Implemented drying beds that led to a 60% reduction in sludge volume, significantly lowering disposal costs.
  • Wastewater Treatment Plant B: Successfully repurposed dried sludge as a soil conditioner in local agriculture, demonstrating environmental sustainability.

Challenges and Solutions

Despite the successes, certain challenges are common with drying beds, such as maintenance issues and climatic limitations. Solutions have been developed and refined through experience and innovation.

  • High Moisture Retention: In cases where beds retained excess moisture, adjustments were made to the underdrainage systems to improve efficiency.
  • Odor Management: Plant C tackled odor complaints by incorporating a layer of sawdust which served as a biofilter, suppressing unpleasant smells effectively.

Future Perspectives

As wastewater management continues to evolve, drying beds remain a crucial component in the sludge treatment process. This section explores the advancements expected to enhance their efficiency and effectiveness.

Innovations in Design

Design improvements in drying beds aim to increase water evaporation rates and optimize sludge drying. For instance, engineers are exploring the use of sloped surfaces and strategic bed orientations to maximize solar exposure and airflow. Another focus is material innovation, where novel geomembranes and geotextiles are being tested to improve filtration and support quick and uniform drying of sludge.

Emerging Technologies

The integration of emerging technologies into drying bed operations is set to redefine wastewater treatment. Developments include solar desalination processes that couple solar-thermal energy with traditional drying methods to enhance the overall efficiency. Furthermore, smart monitoring systems utilizing sensors and IoT connectivity are being implemented to provide real-time data on moisture content and meteorological conditions, enabling precise control over the drying process.

Frequently Asked Questions

What is the purpose of drying beds in wastewater treatment?

Drying beds in wastewater treatment are designed to remove moisture from sludge, the solid byproduct of wastewater treatment processes. This drying is essential for reducing sludge volume and facilitating its disposal or reuse.

How do sludge drying beds function within wastewater management?

Sludge drying beds work by allowing water to evaporate and drain from the sludge, typically through a combination of percolation into underlying sand and gravel layers and direct evaporation into the air. The process is aided by the natural percolation of water and the use of conducive environmental conditions.

What are the design considerations for an effective sludge-drying bed?

Effective sludge drying bed design considers factors such as climate, sludge characteristics, bed size, and construction materials to optimize dewatering efficiency. Proper drainage systems and bed material selection are critical to ensure consistent and efficient drying.

What are the cost implications of implementing drying beds in wastewater facilities?

Implementing drying beds in wastewater facilities involves initial construction costs along with ongoing operation and maintenance expenses. Choosing the appropriate technology and design can greatly influence the economic efficiency of the system.

What alternative methods are available for sludge dewatering besides drying beds?

Beyond drying beds, alternative dewatering methods include centrifuges, belt filter presses, and frame filter presses. Each has distinct operational, performance, and cost profiles that may be more suitable for specific wastewater treatment facilities.

What is the recommended depth for a sludge drying bed to optimize performance?

The recommended depth for a sludge drying bed typically ranges from 200 to 300 mm. The optimal depth ensures adequate dewatering while maintaining operational efficiency and minimizing odor issues.
