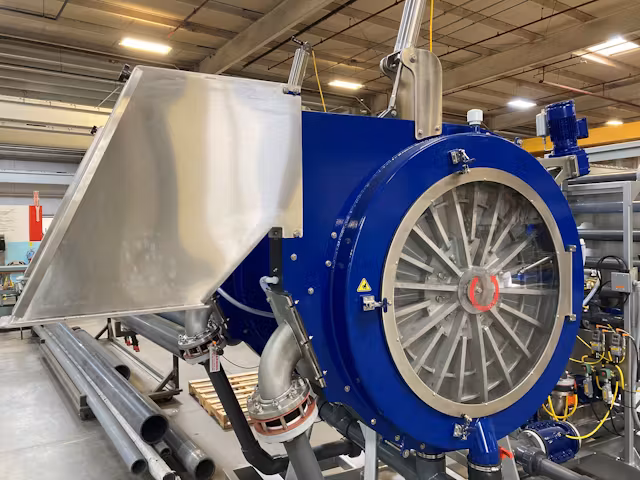

Rotary Fan Presses in Wastewater Treatment: Efficient Sludge Dewatering Solutions

Efficient wastewater management is a critical concern for municipalities and industries around the globe, and rotary fan presses play a significant role in streamlining this process. Rotary fan presses are an advanced dewatering technology designed to separate liquids from solids in sludge, a byproduct of wastewater treatment. By applying steady pressure and rotational movement, these machines effectively extract moisture from sludge, turning it into a semi-solid cake that is easier to handle, dispose of, or repurpose.

The demand for reliable and sustainable wastewater treatment solutions has led to the integration of rotary fan presses in various applications. Their compact design, low energy consumption, and ease of operation make them an attractive option for facilities looking to reduce their environmental footprint and operational costs. The efficiency of rotary fan presses also supports compliance with stringent regulatory waste disposal standards and contributes to sustainable waste management practices.

Key Takeaways

  • Rotary fan presses enhance dewatering efficiency in wastewater treatment.
  • Their design supports environmental sustainability and cost-effective operation.
  • Adherence to regulatory standards is facilitated by the performance of these presses.

Principles of Operation

The operation of Rotary Fan Presses in wastewater treatment hinges on two pivotal processes. These technologies work in tandem to efficiently reduce the water content of sludge, resulting in a semi-solid cake that is easier and more cost-effective to handle and dispose of.

Mechanical Dewatering Process

The mechanical dewatering process in Rotary Fan Presses involves the physical separation of liquids from solids. Wastewater sludge is fed into the press, where it is subjected to gradually increasing pressure. This pressure is achieved through the use of tapered channels. As the sludge moves through these channels, its water content is squeezed out, passing through a filter medium, typically a screen or a cloth.

  • Slow Rotation: The slow rotation of the filter elements minimizes energy usage and wear.
  • Continuous Operation: Designed for 24/7 operation, these presses rarely require shutdowns for cleaning.

Rotary Pressure Technology

Rotary pressure technology incorporates a slow-moving, rotating screw within a permeable membrane. This technology is harnessed by Rotary Fan Presses to exert consistent pressure on the sludge, leading to:

  • Consistent Dewatering: Ensures uniform moisture content in the discharged cake.
  • Low Maintenance: Due to the lack of fast-moving parts and the low rotation speed, the technology is known for its low wear-and-tear and extended operational life.

Through these processes, Rotary Fan Presses offer an efficient solution for conditioning sludge in wastewater treatment plants, leading to effective moisture reduction and a more manageable biosolid.

Design and Components

Rotary Fan Presses in wastewater treatment are robust machines designed for efficiency and reliability. Their design encompasses a sturdy frame, precision filter elements, and sophisticated drive mechanisms.

Frame and Structural Features

The frame of a Rotary Fan Press serves as the skeleton of the equipment, providing structural integrity and support for all other components. It typically consists of heavy-duty materials like stainless steel to withstand the harsh conditions of wastewater environments. Additionally, the structural features are engineered to facilitate ease of maintenance and accessibility, ensuring long-term durability and performance.

Filter Elements

At the heart of the Rotary Fan Press are the filter elements. These components play a crucial role in the dewatering process. They are usually made of finely woven, durable fabrics or screens that effectively separate solids from liquids. The design of these filter elements is focused on maximizing the filtration area while ensuring clog resistance and easy cleaning.

Drive Mechanisms

Drive mechanisms provide the necessary force to operate the Rotary Fan Press. These systems often include a combination of motors, gearboxes, and variable frequency drives (VFDs) for precise control over rotational speed. The drive mechanisms are critical for consistent performance and achieving optimal dewatering results, as they regulate the pressure and rate at which the sludge passes through the filter elements.

Applications in Wastewater Treatment

Rotary Fan Presses serve as an effective solution in the reduction of sludge volume by efficiently dewatering both municipal and industrial wastewater. Their continuous operation and automated control systems allow for consistent performance in various settings.

Municipal Wastewater

In municipal wastewater treatment, Rotary Fan Presses are primarily utilized for the concentration of biological sludge. They provide a high-performance option for municipalities looking to minimize their sludge handling and disposal costs. Thanks to their design, they achieve excellent dry solids content with low energy consumption. The process is simple—wastewater enters the press, and the slow rotation of the rotary fan separates the solid waste, resulting in a dewatered cake that can be handled and disposed of or potentially used as fertilizer, depending on local regulations.

Industrial Effluents

For industrial effluents, these presses are versatile and adapt to various types of sludge, including those from food processing, pharmaceuticals, and chemical manufacturing. The efficiency of Rotary Fan Presses in these contexts is crucial for industries aiming to meet stringent effluent quality standards. They not only reduce the volume of waste for disposal but also recover water that can be recycled into industrial processes, which is both economically beneficial and environmentally friendly.

Installation and Maintenance

The proper installation and rigorous maintenance of Rotary Fan Presses are critical to ensuring their efficient operation within wastewater treatment settings.

Setup and Commissioning

The installation of Rotary Fan Presses requires a controlled environment, ensuring that the selected area complies with the manufacturer’s specifications for space, power, and weight support. Commissioning involves aligning the press with the plant’s operational flow, calibrating sensors, and establishing baseline performance metrics. This phase often necessitates the presence of a certified technician to confirm proper setup and to train plant personnel on basic operations.

Operational Best Practices

Adherence to operational best practices is essential for the longevity and efficiency of Rotary Fan Presses in wastewater treatment. Operators should monitor performance indicators such as flow rates and solids capture frequently. Additionally, integrating real-time monitoring systems can help anticipate issues before they lead to significant downtime or maintenance costs.

Routine Maintenance Requirements

Routine maintenance is vital for the consistent operation of Rotary Fan Presses. A maintenance checklist should include:

  • Daily: Visual inspections for leaks or wear; check lubrication levels.
  • Weekly: Verify torque on bolts and integrity of seals.
  • Monthly: Inspect the gearbox and motor for signs of distress.
  • Annually: Conduct a comprehensive review, replacing parts like filters and seals as necessary.

By staying on top of these requirements, plant operators can help ensure that their Rotary Fan Presses remain a reliable component of their wastewater treatment process.

Performance Metrics

When evaluating Rotary Fan Presses in the wastewater treatment process, performance metrics play a critical role in determining their efficiency and suitability for specific applications. Key factors include dewatering efficiency, throughput capacity, and operational reliability.

Dewatering Efficiency

Rotary Fan Presses are designed to separate solids from liquids, and the effectiveness of this process is quantified through their dewatering efficiency. This metric is usually expressed as the percentage of water removed from the sludge during treatment, leading to a drier cake. For example, a high-performing press might consistently achieve an 85% water removal rate.

Throughput Capacity

The throughput capacity of a Rotary Fan Press indicates the volume of sludge it can process within a given timeframe, typically measured in gallons per minute (gpm) or cubic meters per hour (m³/h). The capacity will vary depending on the model and size of the press. A larger press may process up to 150 gpm, ideal for high-volume treatment facilities.

Operational Reliability

Operational reliability is crucial for wastewater treatment plants, where downtime can be costly and disruptive. Rotary Fan Presses are known for their reliability and require minimal maintenance. Factors contributing to their dependable operation include low-speed rotation, fewer moving parts, and built-in safety features that prevent common mechanical failures.

Through these metrics, facilities can assess and select the most appropriate Rotary Fan Press for their needs while ensuring cost-effective and high-quality wastewater treatment.

Environmental Impact and Sustainability

Rotary Fan Presses in Wastewater Treatment offer significant environmental benefits. These systems optimize energy usage and contribute to waste reduction efforts, aligning with sustainability goals.

Energy Consumption

Rotary Fan Presses are designed for efficiency, utilizing a slow, rotational movement that requires less energy compared to traditional dewatering equipment. The energy consumption of these systems is reduced due to the continuous dewatering process that operates with a low horsepower drive. This process results in lower operational costs and a smaller carbon footprint.

  • Typical energy usage: Reduced by the press’s low-energy design.
  • Operational costs: Diminished due to lower power requirements.

Waste Reduction

With an innovative dewatering approach, Rotary Fan Presses facilitate waste volume reduction. They achieve high solids capture rates, which minimizes the weight and volume of solids for disposal.

  • Solids capture rates: High, leading to less waste generation.
  • Disposal volume: Tends to be significantly lower, cutting down on landfill use.

By integrating Rotary Fan Presses, wastewater treatment facilities can operate more sustainably, underscored by reduced energy demand and effective waste reduction.

Cost Considerations

When assessing cost considerations for Rotary Fan Presses in wastewater treatment, it’s crucial to meticulously evaluate capital investment, operating costs, and life cycle analysis. These factors collectively influence the financial viability and long-term sustainability of the investment in this technology.

Capital Investment

The initial capital investment for Rotary Fan Presses includes the purchase price, installation costs, and any additional infrastructure modifications required. Prices can vary significantly depending on the size and specific design of the press. On average, smaller units are suitable for low-flow applications and can be more affordable, whereas larger units, designed for high-capacity processing, represent a more substantial initial expenditure. Careful selection aligned with processing needs is paramount to optimize capital outlay.

Operating Costs

Operating costs for Rotary Fan Presses deserve careful attention as they encompass ongoing expenditures such as energy consumption, maintenance, and potential downtime. These presses are reputed for their energy efficiency, as they generally consume less electricity compared to other dewatering equipment. Maintenance demands are relatively low due to fewer moving parts, translating into cost savings over time. Regular service intervals and proactive monitoring are recommended to prevent costly unplanned maintenance.

Life Cycle Analysis

In a life cycle analysis, Rotary Fan Presses presents an attractive profile with its long service life and the potential for high residual value. They are engineered to provide consistent performance over many years with proper maintenance. This longevity, along with minimal consumable needs and the ability to operate continuously, can lead to a favorable return on investment when viewed through the prism of their entire operational lifespan. It’s advised to include potential upgrades and the cost of disposal at the end of the press’s life cycle in this analysis.

Regulatory Compliance and Standards

Rotary fan presses play a crucial role in wastewater management, and they must adhere to stringent regulatory compliance and standards. These regulations ensure that the equipment functions efficiently and within the environmental guidelines set by authoritative entities.

Environmental Protection Agency (EPA) guidelines are pivotal for operations involving rotary fan presses. They require facilities to:

  • Reduce emissions of pollutants
  • Comply with the Clean Air Act standards
  • Implement waste management practices in line with current regulations

For example, facilities burning municipal solid waste, which might be relevant to wastewater treatment plants using incineration, must work to reduce emissions that contribute to air pollution, as guided by EPA proposals.

In California, the State Water Resources Control Board provides directives regarding wastewater reuse and treatment processes. Compliance often involves:

Aspect Description
Permitting Acquiring appropriate permits for wastewater operations
Monitoring Regular reporting on discharge quality and volume

The operation of rotary fan presses should also be in keeping with state-specific regulations, like those from the Connecticut Department of Energy and Environmental Protection, which may set forth guidelines on the evaporation and disposal of solvents.

Furthermore, each facility must ensure its rotary fan presses are maintained within the parameters of safety standards, such as those related to pressure systems provided by Lawrence Berkeley National Laboratory’s guidelines.

Compliance and adherence to these standards are not just legal necessities—they also represent a commitment to environmental stewardship and the well-being of the community. Facilities using rotary fan presses must remain vigilant in their ongoing education and application of the latest standards to maintain compliance.

Advancements and Innovations

Rotary Fan Presses has seen significant advancements and innovations, focusing on improving efficiency and automation in wastewater management.

Technological Enhancements

Technological enhancements in Rotary Fan Presses have led to improved performance in dewatering processes. Manufacturers have introduced high-performance polymers for filter media that are more durable and allow for better water separation. This results in a drier waste product and reduces disposal costs. Additionally, they have optimized drum designs for more effective pressure application, enhancing the overall effectiveness of the sludge dewatering process.

Smart Control Systems

The integration of Smart Control Systems into Rotary Fan Presses has revolutionized their operation. These systems employ real-time data monitoring and adjustments, which ensure the presses operate at peak performance with minimal human intervention. Automated feedback loops control the pressure and rotational speed to optimize the dewatering process. Moreover, these smart systems can predict maintenance needs, reducing downtime and extending the equipment’s life.

Case Studies and Real-world Applications

Rotary fan presses have been employed in various wastewater treatment contexts, showcasing their efficiency and effectiveness. In Virginia, a thesis by Jeffrey R. Schwartz at Virginia Tech conducted an experimental analysis of dynamic flow, relevant to understanding the environmental applications of rotary mechanics.

Furthermore, the United States Department of Energy outlined the application of these systems in the Whirlpool Amana Operations, demonstrating a commitment to energy-efficient practices including the use of rotary fan presses which, when integrated correctly, contribute to energy conservation.

In terms of environmental impact, a study highlighted the usage of fan presses in Colorado. A Denver Supermarket case study emphasized that supermarkets, which are some of the most energy-intensive buildings, can significantly reduce energy consumption in refrigeration systems by optimizing fan presses, a critical component of such systems. The success of fan press optimization is thoroughly documented, indicating a potential for energy savings of up to 40% in refrigeration systems.

From these instances, it’s evident that rotary fan presses play a crucial role in wastewater treatment, energy conservation practices, and broader environmental engineering applications, providing substantial operational benefits while addressing sustainability goals.

Frequently Asked Questions

What is the principle of operation for a rotary fan press in sludge dewatering?

A rotary fan press operates by exerting continuous pressure through a slowly rotating hollow cylindrical drum comprised of filtering membranes or screens. Sludge is introduced into the press, and as the drum rotates, filtrate passes through the screens, while dewatered solids (sludge cake) are scraped off for disposal.

How does the performance of a Fournier Rotary Press compare to other sludge dewatering equipment?

The performance of a Fournier Rotary Press stands out; it typically uses less electricity and requires minimal operator attention compared to equipment like belt filter presses or centrifuges, often resulting in lower operational costs and better dewatering efficiencies.

What are the common maintenance issues and troubleshooting tips for a Fournier Rotary Press?

Common maintenance issues for a Fournier Rotary Press may include wear and tear of the filter cloth and seals or blockages in the nozzles. Regular inspection and prompt replacement of worn parts along with keeping the nozzles clean are reliable troubleshooting measures.

What innovations did the Evoqua Rotary Press introduce to the wastewater treatment industry?

Evoqua introduced innovative rotary press features such as improved filtrate clarity, superior capture rate, and a more user-friendly interface, thereby enhancing overall performance and reducing maintenance demands in the wastewater treatment process.

Can you outline the history and development of rotary press technology in wastewater management?

Rotary press technology has evolved from simple mechanical dehydration processes to sophisticated systems capable of handling a variety of sludges in wastewater management. Its development can be traced back to efforts to improve efficiency and reliability in sludge dewatering.

How do rotary fan presses differ from dewatering screw presses in functionality and efficiency?

Rotary fan presses and screw presses both work to separate solids from liquids in sludge. However, rotary fan presses generally offer a higher dryness percentage of the solid output and are considered to be more efficient regarding energy consumption and water recovery, often resulting in a lower moisture content of the sludge cake.
