Gravity-Based Filtration: Enhancing Water Purity with Simple Technology

Gravity-based filtration is a simple and effective technique for removing impurities from liquids. By leveraging gravity, this method allows for the separation of solids from liquids without the need for complex machinery. This type of filtration is widely used in various applications, including water purification and laboratory settings.

In gravity-based filtration, a filter medium is utilized to trap particles as the liquid passes through due to the force of gravity. This process is not only cost-effective but also environmentally friendly since it doesn’t require external power sources. Understanding the design and proper maintenance of these systems can significantly enhance their efficiency and longevity.

For example, installing gravity-based drip pans can help reduce aerosolization in indoor environments. Additionally, proper upkeep of non-stream humidifiers and the use of filters to capture airborne particles contribute to healthier living spaces. Gravity-based filtration systems are reliable tools for ensuring clean water and air, making them indispensable in both domestic and industrial contexts.

Key Takeaways

  • Gravity-based filtration leverages gravity to separate solids from liquids.
  • Proper maintenance and installation are key to the efficacy and longevity of these systems.
  • This method is environmentally friendly and cost-effective for water and air purification.

Fundamentals of Gravity Filtration

Gravity filtration is a water treatment method that relies on gravity to move water through a filtration medium, removing impurities and contaminants. It is widely used due to its simplicity and effectiveness.

Principles of Gravity Filtration

Gravity filtration operates on the principle of gravitational force driving water through a filter medium. The filter medium is usually composed of granular materials such as sand, anthracite, or activated carbon. The force of gravity pulls the water down through the layers, trapping particulate matter and pollutants.

Key factors include the size and type of the filter media, the flow rate, and the concentration of contaminants. Smaller pore sizes in the filter medium trap finer particles, resulting in cleaner water. Proper maintenance, including regular cleaning of the filter media, is essential to maintaining efficiency and prolonging the system’s operational life.

Components of Gravity Filtration Systems

A typical gravity filtration system comprises several components:

  • Inlet Structure: Introduces the water to the system and may include screens to remove large debris.
  • Filter Media: Layers of materials such as sand or granular activated carbon that trap contaminants.
  • Support Gravel: Located beneath the filter media to support it and enhance water distribution.
  • Underdrain System: Collects the filtered water and channels it out of the system.
  • Backwash System: Used periodically to clean the filter media by reversing the flow of water.

These components work together to ensure efficient filtration. The choice of filter media and the design of the underdrain and backwash systems are critical for effective performance and longevity.

Types of Gravity Filtration

There are various types of gravity filtration systems, each serving different applications:

  • Rapid Sand Filters: Use sand as the primary filter medium. They are effective for removing suspended solids and are often used in municipal water treatment plants.
  • Slow Sand Filters: Utilize a biological layer known as a biofilm to remove contaminants. They are suitable for small-scale water systems and rural communities.
  • Dual Media Filters: Combine layers of sand and anthracite to improve the filtration of finer particles. These are commonly used in more demanding applications where higher water quality is required.

Each type of gravity filtration system has its unique advantages and is chosen based on specific water treatment needs and available resources.

Gravity Filtration Apparatus

A gravity filtration apparatus is essential for separating solids from liquids using the force of gravity. This section discusses the design and material of the apparatus and how to properly set it up and maintain it.

Design and Material

A gravity filtration apparatus generally includes a funnel, filter paper, and a collection container. The funnel is usually made from glass or plastic and is designed to hold the filter paper securely. The filter paper is crucial for trapping solid particles; it must be chosen based on the particle size being filtered.

Glass funnels are preferred for chemical reactions due to their resistance to heat and corrosion. Plastic funnels are more commonly used in environments that do not require harsh chemicals. The collection container is positioned below the funnel to catch the filtered liquid. Containers are often made of glass or plastic, depending on the chemical compatibility needed.

Stands and clamps are used to hold the funnel in place, ensuring stability during the filtration process. Proper selection of materials for these components ensures the longevity and effectiveness of the filtration setup.

Setup and Maintenance

Setting up a gravity filtration apparatus requires attention to detail to ensure efficient operation. Start by securely attaching the funnel to a stand using clamps. Place the filter paper inside the funnel, ensuring it fits snugly against the funnel walls. Wetting the filter paper slightly can help it adhere better.

Position the collection container directly beneath the funnel. Carefully pour the liquid mixture into the funnel, avoiding overflow and ensuring that the liquid passes through the filter paper efficiently.

Regular maintenance is vital. After each use, thoroughly clean the funnel, collection container, and stand. Replace the filter paper to ensure there is no cross-contamination. Inspect the apparatus for any signs of wear or damage, such as cracks in glass funnels or weakened plastic components, to maintain safety and efficiency.

Comparison of Filtration Methods

Different filtration methods, such as gravity and vacuum filtration, have distinct advantages and suitable applications. Understanding their differences and uses can help in choosing the right method for specific needs.

Gravity vs Vacuum Filtration

Gravity filtration uses the natural force of gravity to pull liquid through a filter. This method is simple and requires minimal equipment. It’s used mainly when the particles to be filtered are large and the liquid flow doesn’t need to be rapid.

In contrast, vacuum filtration employs a vacuum pump to increase the pressure difference across the filter, speeding up the liquid flow. This method is more efficient for filtering small particles and is faster than gravity filtration. Moreover, vacuum filtration is often used in labs when a quick separation is needed, and time is critical.

Gravity filtration is more straightforward and cost-effective for larger particles and slower processes. Vacuum filtration is more suitable for finer particles and situations that demand efficiency and speed.

Suction vs Gravity Filtration

Suction filtration, also known as vacuum filtration, uses a vacuum to pull liquid through the filter medium. This method increases filtration speed and efficiency, especially when dealing with small particles.

Gravity filtration relies solely on gravity to perform the filtration. This makes it slower but simpler, and it is best suited for larger particles where high-speed filtration isn’t necessary.

The main difference lies in the mechanism to drive the liquid through the filter. Suction filtration is powerful for fine particles and faster results, while gravity filtration excels in simplicity and handling larger particulates without needing extra equipment like vacuum pumps.

Gravity Water Filtration

Gravity water filtration is a process that uses the force of gravity to remove impurities from water. This method is used both in homes and in industrial settings to ensure water quality is maintained without the need for complex machinery.

Domestic Applications

Gravity water filtration is popular for home use due to its simplicity and effectiveness. These systems often include multiple stages of filtration, such as activated carbon and ceramic filters, to remove contaminants like sediment, bacteria, and chlorine. Gravity-fed water filters require no electricity, making them ideal for areas with inconsistent power supply. They are also easy to maintain, with filter elements that are simple to replace.

Many families use tabletop gravity filters to ensure safe drinking water. These systems are portable and can be moved easily. This makes them perfect for travel, camping, and emergencies. Berkey and Brita are well-known brands offering reliable gravity water filtration systems.

Industrial Applications

In industrial settings, gravity water filtration is used to treat large volumes of water efficiently. It is often implemented in wastewater treatment plants and manufacturing facilities. These systems can handle high levels of pollutants and are designed to operate continuously. They remove oil, grease, heavy metals, and other industrial contaminants.

Industrial gravity separators, such as oil-water separators, rely on gravity to separate oil from water. This reduces environmental impact and helps companies comply with regulations set by organizations like the U.S. Environmental Protection Agency. The use of multi-stage filtration grants higher efficiency and better results, ensuring that the treated water meets the necessary standards.

Advanced Types of Gravity Filtration

Gravity-based filtration systems come in various types, with distinctive methods and applications. Here, the focus is on two advanced types: Slow Sand Filtration and Rapid Gravity Filtration.

Slow Sand Filtration

Slow sand filtration is one of the oldest forms of filtration and relies on a natural process to clean water. The system involves water slowly passing through a sand bed where microorganisms on the surface help to break down contaminants. This sand bed is usually between 0.5 to 1.5 meters deep.

The primary advantages of this method include its simplicity and low operational cost. It doesn’t need complex machinery, making it ideal for rural or low-resource settings. Additionally, it effectively removes bacteria and organic matter, which is beneficial for producing potable water.

However, one key aspect is that it requires a large area and regular maintenance to scrape off the top layer of sand, which becomes clogged over time. Despite this, its efficiency in certain scenarios makes it an enduring solution.

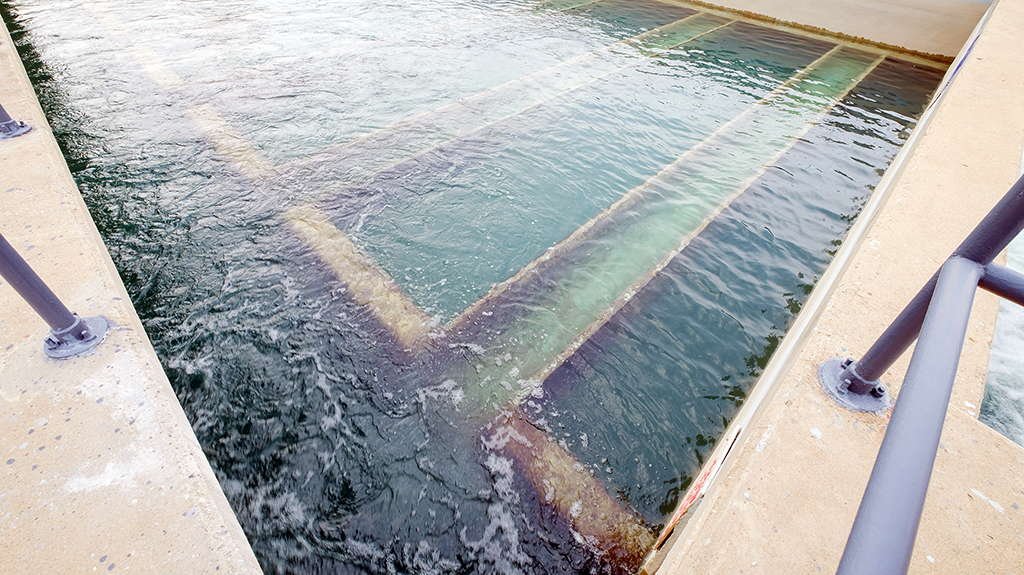

Rapid Gravity Filtration

Rapid gravity filtration, on the other hand, is a more modern and faster method. This system forces water through a sand bed at a much quicker rate compared to slow sand filtration. Usually, this type of system is paired with pre-and post-treatment stages, such as coagulation and disinfection.

Due to its faster processing time, rapid gravity filtration is widely used in municipal water treatment facilities. It can handle greater volumes of water and is more suitable for urban areas with high water demand.

Key components of the system include a sand bed that’s about 1 meter deep, along with additional layers of gravel to support the sand. Crucially, the sand bed needs to be backwashed periodically to remove accumulated impurities, ensuring the system remains efficient.

Rapid gravity filtration’s speed and capacity make it a vital part of modern water treatment infrastructure, particularly in cities.

Installation and Operation

Gravity-based filtration systems require careful planning and execution to ensure a smooth and efficient process. Key considerations include selecting an ideal site for installation and following proper operational procedures to maintain system performance.

Site Selection and Setup

Choosing the right location for a gravity filtration system is crucial. The site must be stable and free from flooding risks. It should have adequate space to accommodate the filtration components and allow for easy access during maintenance.

The setup begins with preparing the ground, ensuring it is level and compacted. Install a base layer of gravel or concrete to provide stability. Position the filtration tank and connect it to the inlet and outlet pipes. Ensure all fittings are secure to prevent leaks.

Placing a protective cover over the system can shield it from debris and harsh weather. Proper ventilation around the setup will aid in system efficiency. Finally, check local regulations and guidelines to comply with environmental standards.

Operational Procedures

Operating a gravity filtration system involves regular monitoring and maintenance to ensure optimal performance. Checking the system daily for any signs of clogging or mechanical issues is key.

Start by examining the inlet for blockages and ensure the flow rate is consistent. Clean the filter media as recommended by the manufacturer, usually by backwashing or replacing the filter material. This helps maintain filtration efficiency and prolongs the system’s life.

Monitor the water quality before and after filtration. Regular water testing can identify any issues in the filtration process. Adjust flow rates and perform necessary maintenance based on these results. Proper record-keeping of all operational checks and maintenance activities will help track the system’s performance and identify potential improvements.

For further details, refer to the EPA’s factsheet on gravity thickening which provides additional insights on related processes.

Maintenance and Troubleshooting

Regular upkeep ensures optimal performance of gravity-based filtration systems. Addressing common issues promptly helps in maintaining efficiency and prolongs the lifespan of the equipment.

Regular Maintenance

Gravity filtration systems require consistent preventative measures to function effectively. Cleaning filter media is crucial. Depending on the usage, filters should be backwashed or replaced periodically to prevent clogging. Inspecting the seals and gaskets for leaks can help avoid malfunctions.

It is also important to monitor the pressure levels and flow rates. Deviations from normal parameters could indicate a problem. Regularly checking the system for wear and tear on components such as pumps and valves can also prevent unexpected failures.

Keeping detailed maintenance records aids in tracking performance trends and scheduling maintenance tasks.

Common Issues and Solutions

One common problem in gravity filtration systems is clogging. This can be mitigated by ensuring filters are regularly cleaned or replaced. If flow rates suddenly drop, checking for obstructions in the filtration path is necessary.

Leaks are another issue that can compromise system efficiency. These can be caused by worn-out seals or gaskets, which should be inspected and replaced as needed.

Unexpected noises or vibrations could indicate mechanical issues with pumps or other moving parts. Lubricating these components or tightening loose parts often resolves these issues.

Calcium buildup can also impede performance. Periodic descaling treatments can prevent this problem, ensuring the system operates smoothly.

For more detailed procedures and specific recommendations, reviewing manufacturer guidelines and consulting with professionals can be useful.

Environmental and Health Implications

Gravity-based filtration systems play a vital role in improving water quality and ensuring sustainable water use. These systems can have significant environmental and health benefits through their ability to remove pollutants and reduce energy consumption.

Water Quality Impact

Gravity water filtration systems can effectively remove contaminants from drinking water. They target harmful substances like bacteria, viruses, and heavy metals. This makes water safer for consumption and helps prevent waterborne diseases. Pathogens such as E. coli and Giardia are significantly reduced.

Additionally, these systems can improve the taste and smell of water. By filtering out impurities, they ensure that the water remains palatable. This can encourage more people to drink water, which is essential for health.

Water quality is further enhanced by the removal of sediments and turbidity. This is especially important in regions prone to water pollution. For instance, gravity-based filtration can help address issues related to high water turbidity caused by glacial runoff.

Sustainability Considerations

Gravity-based filtration systems often require no electricity to operate. This makes them highly energy-efficient compared to other filtration technologies. The low energy consumption also means a smaller carbon footprint, contributing to environmental sustainability.

These systems are also durable and require minimal maintenance. They typically use readily available materials, which reduces both cost and environmental impact. Many gravity-based filters can be reused after cleaning, reducing waste.

Moreover, the implementation of gravity water filtration supports sustainable water use. By improving water quality at the point of use, these systems can reduce dependence on bottled water. This, in turn, reduces plastic waste and its associated environmental hazards.

In areas with limited access to clean water, gravity-based filtration can be a practical and sustainable solution. It ensures that communities have access to safe drinking water without relying on complex infrastructure. This approach aligns with global efforts to promote sustainable water management practices.

Frequently Asked Questions

Gravity-based water filtration systems offer a simple yet effective method for purifying water. This section addresses common queries about their advantages, costs, and performance.

What are the advantages and disadvantages of gravity-based water filtration systems?

The primary advantage of gravity-based systems is their simplicity. They do not require electricity, making them great for areas without power. One disadvantage is that they may filter water more slowly compared to other methods. Additionally, they may not remove all types of contaminants.

How do gravity filters compare to other filtration methods in water treatment?

Compared to methods like reverse osmosis and activated carbon filters, gravity filters are generally more affordable and portable. They are ideal for areas with intermittent water supply. However, methods like reverse osmosis may remove a broader range of contaminants, including heavy metals and dissolved salts, which gravity filters often can't.

What is the average cost involved in installing a gravity filtration system?

The cost of installing a gravity filtration system varies. Basic units can start as low as $50, while more advanced models with larger capacities and additional features can cost upwards of $200. Maintenance costs are also relatively low, primarily involving occasional replacement of filter cartridges.

How do users rate the performance of gravity-based filtration units?

Users generally rate gravity-based filtration units favorably for their ease of use and maintenance. They appreciate the lack of need for electricity and the portability of the units. However, some users note that these units may not perform as well as other filtration methods in removing certain types of contaminants.

Which gravity water filtration systems are considered the best on the market?

Top-rated gravity water filtration systems often include brands like Berkey, Sawyer, and LifeStraw. These brands are praised for their reliability and effectiveness. The Berkey systems, in particular, are noted for their high capacity and ability to filter out bacteria, viruses, and heavy metals.

What contaminants and impurities can a gravity water filter typically remove?

Gravity water filters can remove various contaminants such as sediment, bacteria, and protozoa. They are typically effective at removing chlorine and other chemicals that affect taste and odor. However, they may not be as effective at filtering out viruses, heavy metals, and dissolved salts as other filtration systems.
