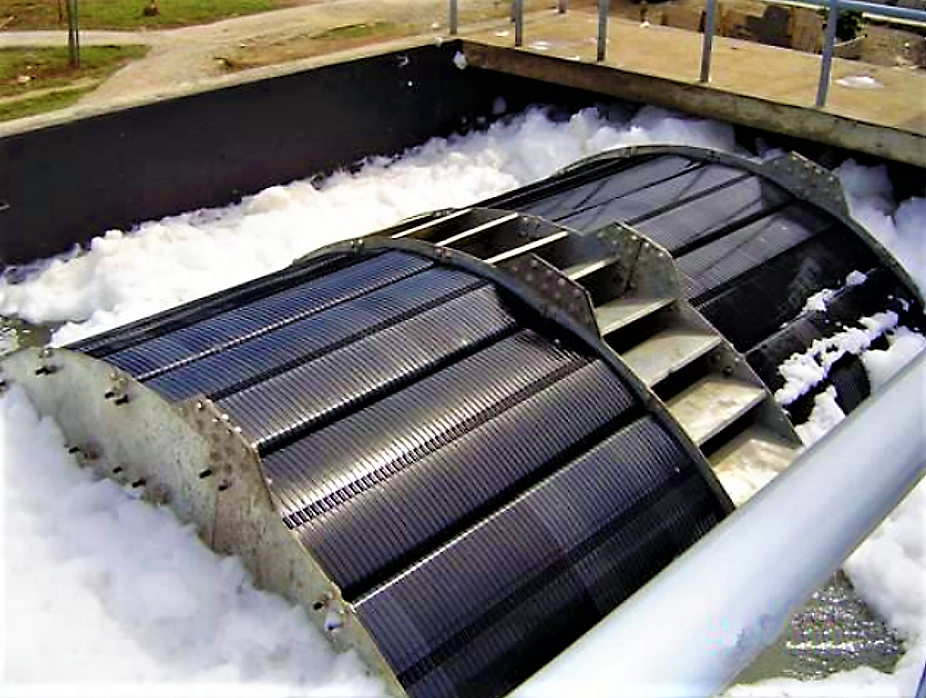

Rotating Biological Contactors: An Overview of Wastewater Treatment Efficiency

Rotating Biological Contactors (RBCs) are an efficient means of treating wastewater through a biological process that involves microorganisms affixed to a rotating media. These systems are engineered to remove organic and nitrogenous waste from water by allowing microorganisms to come into contact with waste in the water. An RBC system consists of a series of closely spaced, parallel discs mounted on a rotating shaft, which is partly submerged in effluent. As these discs turn, a thin film of wastewater flows over the surface of the media, allowing for aerobic degradation of pollutants by the biomass attached to the discs.

The design of RBC units makes them applicable in a variety of settings, ranging from small communities to individual industrial facilities, due to their compact footprint and adaptive capabilities. They are recognized for their simplicity in operation and maintenance, as well as their ability to withstand fluctuations in wastewater flow and composition. These systems have evolved, incorporating advancements that result in higher treatment efficiency and reliability while maintaining environmental compliance. With their low energy requirements and potential for automation, RBCs offer a sustainable option for wastewater treatment, addressing the increasing demand for solutions that combine effectiveness with environmental responsibility.

Key Takeaways

  • RBCs are designed to remove organic and nitrogenous wastes from water using microorganisms.
  • They are valued for their compact design, adaptability, and straightforward operation and maintenance.
  • RBCs represent an environmentally sustainable wastewater treatment solution with low energy consumption.

Principles of Operation

Rotating Biological Contactors (RBCs) are advanced wastewater treatment systems that utilize microorganisms to degrade organic pollutants. They consist of a series of closely spaced, parallel discs mounted on a rotating shaft that is partially submerged in wastewater.

Primary Components:

  • Media Discs: Provide a large surface area for biofilm growth.
  • Shaft: Rotates the discs, exposing the biofilm to air and wastewater.

Process Steps:

  1. Attachment: Microorganisms naturally found in wastewater adhere to the media discs, forming a biofilm.
  2. Rotation: As the shaft rotates, the discs move in and out of the wastewater, allowing the biofilm to absorb oxygen from the air and nutrients from the wastewater.
  3. Degradation: Microorganisms within the biofilm metabolize organic matter, effectively reducing Biological Oxygen Demand (BOD) and nutrient levels.

RBC Systems are characteristically efficient because they balance oxygen availability with organic substrate uptake. The rotation speed is controlled to optimize contact time between the biofilm and pollutants—too fast and the microorganisms cannot effectively process the waste; too slow and there isn’t enough oxygenation.

Advantages:

  • Energy Efficiency: Reduced requirement for mechanical aeration.
  • Process Stability: The biofilm can withstand variable loads.
  • Simplicity: Low complexity compared to other treatment methods.

They represent a cost-effective, low-energy alternative especially suited for small to medium-sized wastewater treatment plants. Adaptability to changing loads and minimal sludge production make RBCs an attractive option for biological wastewater treatment.

Design and Engineering

In the engineering of Rotating Biological Contactors (RBCs), precise considerations must be taken concerning rotational speed, media selection, and aeration, each playing a pivotal role in the treatment efficiency and operational stability of the system.

Rotational Speed

The rotational speed of an RBC is critical since it impacts biofilm thickness and oxygen transfer rates. Optimal speeds reduce shear forces, preventing biofilm from being stripped away, yet must be adequate to ensure sufficient oxygenation. Generally, RBC units rotate between 1 and 2 rpm, dependent on specific design parameters and wastewater characteristics.

Media Selection

Media selection influences the surface area for biofilm growth and the overall treatment capacity of an RBC unit. Media should have a high surface area-to-volume ratio and be durable enough to withstand the wastewater environment and rotational forces. Choices often include materials like polyvinyl chloride (PVC) or corrugated plastic structures specifically designed for microbial attachment and longevity.

Aeration and Oxygen Supply

The aeration process is integral as it supplies the necessary oxygen for aerobic bacterial activity. RBCs naturally introduce oxygen as media rotates through the air and wastewater, but some designs incorporate supplemental aeration to maintain a high level of dissolved oxygen, especially in high-strength wastewater applications. The design must balance energy costs with oxygen needs to ensure an efficient system.

Biological Considerations

In the realm of Rotating Biological Contactors (RBCs), biological considerations are paramount as they directly impact the treatment efficiency and stability of the system. The two key aspects revolve around Biofilm Growth and the makeup of Microbial Communities within the apparatus.

Biofilm Growth

Biofilm formation on the discs of RBC units is a critical process for the degradation of organic pollutants. The growth needs to be carefully managed to ensure an optimal thickness of biofilm. The specific surface area loading expressed as gallons per day per square foot is a crucial design parameter that influences biofilm development and must be considered for effective process design.

  • Parameters influencing biofilm growth:
    • Nutrient concentration: Sufficient nutrients must be present to support microbial growth.
    • Temperature: Growth rates are temperature-dependent, with higher temperatures typically accelerating biological activity.
    • Organic load: Must be balanced to avoid either underloading, which results in poor biofilm development, or overloading, which can cause sloughing.

Microbial Communities

The microbial populations within RBC systems carry out the removal of contaminants through diverse metabolic processes. These communities are complex and vary in wastewater characteristics. The rotating action in RBCs ensures sufficient oxygen transfer, which is vital for the aerobic microorganisms responsible for breaking down organic pollutants.

  • Characteristics of microbial communities:
    • Diversity: A range of aerobic, anoxic, and anaerobic microorganisms can exist within different regions of the biofilm.
    • Resilience: Microbial communities can adapt to changes in wastewater composition and load.
  • Factors affecting microbial community composition:
    • Wastewater properties: Such as pH, temperature, and organic/inorganic makeup.
    • Oxygenation: An adequate oxygen supply is necessary for aerobic microbial activity, directly tied to the rotational speed of the RBC unit.

In summary, RBC systems rely on a delicate balance of biological processes, where Biofilm Growth and Microbial Communities play critical roles in wastewater treatment efficacy.

Applications and Uses

Rotating Biological Contactors (RBCs) are utilized in wastewater treatment processes. They function effectively in both municipal and industrial settings, providing a reliable method for the reduction of organic pollution.

RBC systems are known for their application in treating wastewater from small to medium-sized communities. This form of treatment is advantageous due to its low energy requirements and ease of operation. RBCs are also frequently used in remote locations where fewer personnel are available to manage the wastewater treatment processes.

In the realm of industrial applications, businesses that produce organic waste in their effluent, such as food processing plants or beverage manufacturers, employ RBCs to pre-treat their wastewater. This step helps to reduce the demand for municipal sewage facilities and complies with governmental discharge regulations.

Listed below are primary uses of RBCs:

  • Municipal Wastewater Treatment:
    • Secondary treatment process
    • Nitrogen removal
    • Small to medium community sewage treatment
  • Industrial Wastewater Treatment:
    • Pre-treatment for organic waste
    • Treatment for specific sectors (e.g., dairy, tanneries, breweries)

These systems also serve an educational purpose, often installed in university research facilities to study biological treatment processes and to optimize wastewater management techniques.

The installation of RBCs often involves considerations of space and climate since they can cover extensive areas and are sensitive to extreme temperatures. Despite these considerations, they are increasingly recognized for their efficiency and cost-effectiveness in diverse wastewater treatment scenarios.

Performance and Efficiency

Rotating Biological Contactors (RBCs) are effective for the treatment of wastewater, primarily due to their moderate energy consumption and consistent effluent quality. They operate on the principle of biological oxidation, with microorganisms attached to media discs rotating slowly in wastewater.

  • Aeration Efficiency: Oxygen transfer in RBC systems is achieved passively as the discs rotate, exposing the biofilm to the air. This method is more energy-efficient than forced aeration systems.
  • Process Stability: They offer reliable performance, particularly in situations with fluctuating wastewater volumes or organic loads. The large surface area of the biofilm promotes resiliency and robustness in treatment quality.
  • Organic and Nutrient Removal: RBCs can effectively reduce levels of biochemical oxygen demand (BOD), chemical oxygen demand (COD), and nutrients like nitrogen and phosphorus through microbial digestion.
Advantages Considerations
Low energy inputs Requires regular maintenance
High oxygen transfer rates Susceptible to temperature fluctuation efficient
t in organic load reductions Potential for biofilm detachment

RBCs are also noted for their simplicity of design, making them a suitable option for small to medium-sized wastewater treatment facilities. However, they must be carefully monitored to prevent issues such as biofilm overgrowth or disc damage, which could impede performance.

In terms of cost, RBCs may offer a lower capital investment compared to other advanced treatment methods, but the trade-off comes with operational considerations such as the need for skilled maintenance. The U.S. EPA provides detailed information on package plants, including those utilizing RBC technology.

Operation and Maintenance

Rotating Biological Contactors (RBCs) require diligent operation and regular maintenance to ensure reliable performance in wastewater treatment. The two critical aspects of RBC maintenance involve cleaning practices and effective troubleshooting.

Cleaning Practices

Regular cleaning is vital for the optimal performance of RBCs. Biofilm thickness should be monitored, as excessive growth can lead to reduced oxygen transfer and system imbalance. A recommended practice is to:

  • Inspect the media periodically and clean to prevent excessive biofilm accumulation.
  • Utilize low-pressure water sprays to remove any solids that may have adhered to the discs without disrupting the biofilm.

Troubleshooting

Addressing common operational issues quickly prevents long-term damage to RBC units. Some troubleshooting steps include:

  • Checking for uneven rotation or wobble in the units, which can indicate worn bearings or shaft misalignment.
  • Listening for unusual noises, such as scraping, which may suggest debris entanglement or mechanical issues.
  • Observing the effluent quality, as a sudden decline could signify overloading or toxicity to the biomass.

Environmental Impact and Sustainability

Rotating Biological Contactors (RBCs) serve as an environmentally friendly wastewater treatment technology. They operate on the principle of biological degradation, where microorganisms attached to rotating discs break down organic pollutants in wastewater. This process results in a reduction of biological oxygen demand (BOD) and total suspended solids (TSS), which are key indicators of water quality.

The sustainability of RBCs stems from their low energy consumption, as they require only the power to rotate the discs. This feature not only reduces the carbon footprint but also minimizes operational costs. Moreover, RBC systems are known for their durability and long-term performance, which contributes to a less frequent need for replacements and therefore, less material waste.

  • Advantages:
    1. Energy-efficient operation
    2. Minimal sludge production
    3. Low noise levels
    4. High oxygen transfer efficiency
  • Considerations:
    • Potential for channeling if not properly designed
    • Requires regular maintenance of rotating parts to ensure optimal performance

In terms of land use, RBCs have a relatively small footprint, making them suitable for installation in areas where space is at a premium. They are applicable in various settings, from small communities to large industrial facilities. However, the environmental impact of RBCs does rely on the correct design and operation, as insufficient treatment can lead to the discharge of pollutants into natural water bodies.

Ultimately, when implemented and managed correctly, RBCs represent a sustainable wastewater treatment option that aligns with environmental protection goals and contributes to the conservation of aquatic ecosystems.

Advancements and Innovations

Rotating Biological Contactors (RBCs) have experienced significant advancements, focusing on efficiency and adaptability to various wastewater compositions.

  • Modular Design: Modern RBCs feature a modular configuration, allowing for scalable treatment systems that can be easily customized to the specific needs of a wastewater treatment facility.
  • Materials: The use of novel materials has led to the development of more durable and efficient contactor media, which has an increased surface area for biofilm growth.
  • Control Systems: Enhanced control systems have been integrated to optimize the rotational speed of the contactors, leading to improved oxygen transfer rates and reduced energy consumption.
  • Maintenance: Advancements in design also include features that simplify maintenance procedures and increase the longevity of the system.

Recent innovations include:

  • Automated Monitoring: Real-time monitoring technologies that provide timely feedback on system performance to prevent overloads and ensure consistent effluent quality.
  • Hydrodynamic Improvements: RBC units have been redesigned to enhance the hydrodynamics, which minimizes dead zones and maximizes treatment efficiency.
  • Energy Recovery: Some systems now incorporate energy recovery mechanisms that harness the kinetic energy from the rotation of the contactors, contributing to the overall energy efficiency of the wastewater treatment plant.

These ongoing technological enhancements aim to make RBC systems more effective, less energy-intensive, and capable of handling a wider array of wastewater treatment challenges. They are becoming increasingly sophisticated yet remain a reliable and user-friendly choice for biological treatment.

Regulations and Compliance

Rotating Biological Contactors (RBCs) are subject to various regulatory guidelines and compliance standards to ensure environmental safety and operational efficiency. These systems, primarily used in wastewater treatment, must adhere to specific operational and design criteria.

Federal Regulations: In the United States, the Environmental Protection Agency (EPA) sets forth requirements for RBCs. The EPA’s technology fact sheets provide detailed information about the types of processes RBCs perform and the standards for effective biological treatment.

State Requirements: Individual states may impose additional regulations. For example, Virginia’s Sewage Collection and Treatment Regulations outline compliance measures for biological treatment systems, which include RBCs. This detailed information can be found within the state’s administrative code.

  • Design and Performance Standards: RBCs must meet design standards to handle the expected sewage flow and organic loading rates effectively.
  • Periodic Inspections: Regular inspections ensure that RBCs operate within the permitted parameters.
  • Maintenance Protocols: Proper maintenance is crucial for ensuring the continual, efficient operation of RBCs.

Local Compliance: Local entities may also set forth guidelines for RBC operation. Compliance with local ordinances is essential for operators to remain within legal parameters.

Operators of RBC systems must be knowledgeable about and strictly adhere to these regulations to ensure the longevity of the systems, protection of public health, and prevention of environmental harm. Non-compliance can lead to legal repercussions and ecological issues.

Case Studies and Real-world Applications

Rotating Biological Contactors (RBCs) have been implemented successfully in various locations, showcasing their effectiveness in wastewater treatment applications. One notable case involves a small community in the United States, where an RBC system was installed to treat domestic sewage for a population equivalent to 500 people. The system was chosen for its low energy consumption and simple maintenance requirements, demonstrating excellent removal rates for organic pollutants as indicated by biochemical oxygen demand (BOD) and chemical oxygen demand (COD) measurements.

In Europe, a comprehensive study conducted on an RBC system treating industrial wastewater from a dairy processing facility revealed it to be highly effective. The system’s ability to reduce ammonia-nitrogen (NH3-N) levels was particularly noted, with performance remaining consistent across various operational conditions. The adaptability of RBC systems under different types of wastewater streams is thus evident.

Table 1: Performance Indicators for RBC Systems in Selected Case Studies

Location Type of Wastewater Key Performance Indicator Results
USA, small community domestic c sewage BOD and COD reduction >90% reduction Europe
e, industrial dairy y wastewater Ammonia-N reduction Significant reduction

In the realm of research, studies on RBCs have diversified into exploring their applications beyond traditional settings. A study highlighted the potential use of RBCs in aquaculture for maintaining water quality by efficiently managing nitrogen waste products.

Through these case studies, it becomes clear that RBCs are versatile systems suitable for both municipal and industrial waste treatment applications. The technology has been proven to work efficiently in different environmental conditions, emphasizing its role as a reliable component in modern waste management strategies.

Frequently Asked Questions

How does a rotating biological contactor (RBC) function in wastewater treatment?

A rotating biological contactor (RBC) treats wastewater by rotating media in a tank, which allows for biofilm growth on the media's surface. As the media rotates, the biofilm comes into contact with wastewater, facilitating the degradation of organic pollutants through microbial action.

What are the primary advantages and disadvantages of using RBCs for sewage treatment?

RBCs offer advantages such as simplicity of design, low energy requirements, and high resistance to shock loads. However, they can be prone to problems like media fouling and might require large footprints for installation compared to other systems.

What maintenance requirements are associated with rotating biological contactors?

Maintenance for RBCs typically involves regular inspection of the drive mechanism, cleaning of the media to prevent fouling, and ensuring that the biofilm thickness is optimal for effective treatment.

In what ways do RBCs differ from other wastewater treatment technologies?

RBCs differ from other treatment methods in their use of a fixed-film process over suspended growth processes. They require less sludge handling and can be more energy-efficient but are less flexible than activated sludge systems in terms of capacity expansion.

How does RBC design impact its performance and efficiency in water treatment processes?

The design of an RBC impacts its performance by influencing parameters such as surface area for biofilm growth, rotational speed, and oxygen transfer efficiency. Proper design is essential for maximizing treatment efficiency and ensuring operational reliability.

Can you explain the role of the rotating disc within the RBC system?

The rotating discs in an RBC system serve as the medium for biofilm attachment. Their rotation helps in oxygen diffusion to the biofilm and provides regular exposure to the wastewater for treatment, which is key to the RBC's functionality.
