Gravity Belt Thickeners in Wastewater Treatment: Enhancing Efficiency and Sustainability

Gravity belt thickeners are an integral component in the field of wastewater treatment. Their primary function is to thicken sludge by removing excess water, thereby reducing the volume of sludge that needs to be processed further or disposed of. This thickening process is crucial as it helps in reducing the costs associated with sludge handling and disposal. Working on the basic principle of gravity separation, gravity belt thickeners achieve this by allowing the heavier solids in the sludge to settle to the bottom while the water content rises to the top.

The design and operation of gravity belt thickeners involve a continuous belt with porous media, which allows water to drain through as the sludge is gently agitated and moves across the belt. These thickeners are tailored to handle varying inflow rates and sludge consistencies, making them applicable across a range of wastewater treatment scenarios. Ensuring proper maintenance and operation is paramount in achieving the desired thickening efficiency and extending the lifespan of the equipment. Additionally, they offer a simpler, more energy-efficient option compared to other mechanical thickening technologies, which can be advantageous for wastewater treatment plants looking to minimize operating costs.

Key Takeaways

  • Gravity belt thickeners concentrate sludge in wastewater treatment by removing excess water.
  • They operate on gravity separation principles and involve specially designed equipment.
  • Proper operation and maintenance of thickeners are essential for efficiency and longevity.

Principles of Operation

Gravity Belt Thickeners (GBTs) are an integral part of modern wastewater treatment processes, primarily designed to thicken sludge by removing a portion of the liquid fraction. These systems rely on the natural force of gravity, alongside mechanical means, for dewatering and thickening sludge from municipal and industrial wastewater treatment plants.

Gravity Drainage Area

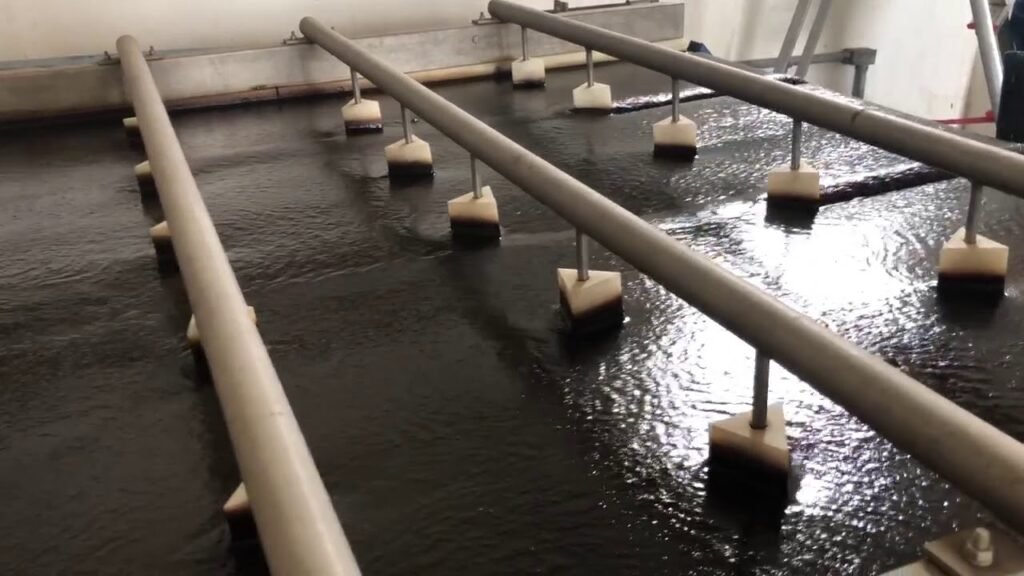

The operation begins in the Gravity Drainage Area, where sludge is evenly distributed across a porous belt. Here, free water begins to separate from the solids by gravity. The sludge starts to thicken as the water percolates through the belt and is collected below.

Wedge Zone

As the thickened sludge moves forward, it enters the Wedge Zone. This zone prepares the sludge for further dewatering by gently compressing it between the belt and a wedge-shaped area. The gradual increase in pressure aids in releasing more water while preventing the disruption of the sludge layer integrity.

Pressure Shear Zone

Finally, the sludge arrives at the Pressure Shear Zone, where a series of low-pressure rollers apply shear force and increase pressure to the belt. This action further dewaters the sludge, resulting in a higher solids content. The pressure shear zone is critical for achieving the final desired thickness and moisture content of the sludge.

Design and Specifications

In the domain of wastewater management, Gravity Belt Thickeners (GBTs) play a critical role. They are designed to enhance the concentration of sludge through the use of gravity, which results in reduced sludge volumes and consequently, lower handling costs.

Belt Type and Material

The belt of a Gravity Belt Thickener is a crucial component as it facilitates the separation of water from the solids. Typically, the belts are made from durable materials like polyester or polypropylene to withstand the harsh conditions of sludge processing. Belt widths vary and are selected based on the capacity requirements of the wastewater treatment facility. The materials used must be chemical-resistant and allow for adequate drainage.

Frame Construction

The frame provides the necessary support for the GBT and is constructed from high-grade materials such as stainless steel or coated carbon steel. This is to ensure longevity and resistance to the corrosive nature of sludge. The design of the frame is also engineered to provide stability during operation and accommodate the forces exerted by the thickening process.

Drive Mechanism

GBTs are equipped with a drive mechanism that controls the belt speed and tension. This can be a direct drive, chain drive, or gearbox, amongst others. The selection of the drive system is dependent on the required throughput and the degree of control needed. Precise control over the belt’s movement is essential for optimal sludge thickening.

Wash Water System

An integral part of GBTs is the wash water system, which prevents clogging and maintains the efficiency of the belt. This system utilizes high-pressure sprays to remove any residual sludge from the belt. The design specifies parameters such as water pressure and flow rate, which are vital to ensure thorough cleaning while also conserving water.

Applications in Wastewater Treatment

Gravity Belt Thickeners (GBTs) are employed in wastewater treatment to reduce the volume of sludge, thereby enhancing the efficiency of subsequent processing steps. They operate by using gravity to separate solids from the liquid in sludge, often as a preliminary process before dewatering.

Primary Use: The primary role of GBTs is to concentrate sludge, which reduces the volume and therefore the cost associated with its storage or further treatment. The concentrated sludge, or ‘thickened’ sludge, requires less space and resources when undergoing further dewatering processes, such as those involving filter presses or centrifuges.

  • Efficiency: GBTs provide efficient thickening, resulting in a remarkable reduction in the volume of sludge. They are capable of producing a sludge consistency that may range from 5% to 10% solids by weight.
  • Operation: Offering a simple and cost-effective operation, they are low energy-consuming units compared to other thickening technologies.

Design Advantages:

  • GBTs have a relatively small footprint, making them suitable for facilities with limited space.
  • They are designed to handle variations in the sludge flow and concentration without compromising performance.

Compatibility: These systems harmonize with many types of wastewater treatment facilities, including municipal and industrial plants. They are particularly effective in applications where fine, free-settling solids are encountered and when a clear filtrate is desired for further processing or disposal.

Integration: Their ease of integration with other wastewater treatment components is a key advantage. They can be combined with polymer dosing, which enhances solid-liquid separation by binding fine particles, thus optimizing the thickening process.

In summary, GBTs serve as a crucial step in the wastewater treatment process, offering both economic and operational benefits that streamline the management of sludge.

Performance Parameters

When assessing the efficacy of Gravity Belt Thickeners (GBTs) in wastewater treatment, various performance parameters are critical indicators of operational success. These parameters include solids capture rate, throughput capacity, polymer usage, and energy consumption. Each plays a significant role in the overall efficiency and cost-effectiveness of the thickening process.

Solids Capture Rate

The solids capture rate is a crucial measure of a GBT’s performance, reflecting the proportion of solids retained after the separation process. A high solids capture rate indicates that the GBT is effective in separating solids from the liquid sludge, which is essential for reducing the volume of waste and enhancing the final sludge quality.

Throughput Capacity

Throughput capacity refers to the volume of sludge a GBT can process within a given timeframe. This metric is pivotal in determining the GBT’s adequacy to handle the anticipated daily waste flow—and whether it can do so without sacrificing the quality of sludge dewatering.

Polymer Usage

The amount of polymer usage directly influences the GBT’s operational cost and the effectiveness of sludge thickening. Optimal polymer usage ensures efficient flocculation, which enhances the separation of solids and liquids, while excessive use can increase costs without proportional benefits.

Energy Consumption

Lastly, energy consumption is an essential parameter when evaluating the environmental footprint and operational expenses of a GBT. Energy-efficient models are preferable, as they can significantly lower the overall costs associated with wastewater treatment over time.

Operation and Maintenance

In the management of Gravity Belt Thickeners (GBTs) in wastewater treatment, diligent operation procedures and maintenance practices are critical for efficiency and longevity. Adhering to daily protocols ensures continuous functionality, while troubleshooting tackles specific issues, and safety considerations protect both personnel and equipment.

Routine Procedures

GBTs require regular monitoring and adjustment to perform optimally. Operators need to:

  • Check the polymer feed system to ensure proper mixing and dosage.
  • Inspect the conditioning zone for consistent flocculation.
  • Monitor belt tension and tracking to avoid misalignment or slippage.
  • Maintain a clear filtrate by observing the quality of wastewater overflow.

Troubleshooting

Issues with GBTs often manifest in the form of poor thickening performance or excessive wear. Some common problems and solutions include:

  • Excessive Belt Wear: Check for improper tracking and correct as necessary.
  • Low Solids Capture: Increase polymer dosage or improve flocculation.
  • High Filtrate Turbidity: Inspect the belt for damage or adjust plows.

Safety Considerations

Safety protocols are imperative for preventing injuries during the operation and maintenance of GBTs. Steps include:

  • Implement lock-out/tag-out procedures before servicing.
  • Ensure guards and safety devices are in place and functional.
  • Use personal protective equipment (PPE) as required by site policies.

By following these structured procedures, operators can ensure the effective and safe operation of Gravity Belt Thickeners in wastewater treatment facilities.

Advantages and Limitations

Advantages:

Gravity Belt Thickeners (GBTs) in wastewater treatment offer several benefits:

  • Efficiency in Sludge Thickening: They efficiently thicken sludge, reducing the volume and thereby decreasing handling and disposal costs.
  • Continuous Operation: GBTs operate continuously, allowing for consistent treatment of wastewater.
  • Low Energy Consumption: They utilize gravity rather than mechanical means to thicken sludge, leading to lower energy usage compared to other thickeners.
  • Ease of Operation: GBTs have a straightforward design, making them simpler to operate and maintain.
Aspect Advantage
Sludge Volume Reduced
Operation Continuous
Energy Consumption Low
Maintenance Simplified

Limitations:

Despite their advantages, Gravity Belt Thickeners have limitations:

  • Limited to Medium Concentration Sludge: They are most effective with sludges of medium concentration. Very dilute or thick sludges may not be handled as efficiently.
  • Chemical Requirement: Coagulants or flocculants are often necessary to improve separation, incurring additional material costs.
  • Odor Potential: Thickening activities can give rise to unpleasant odors if not properly managed.
  • Space Requirement: GBTs can require significant space, which may limit their use in facilities with space constraints.
Aspect Limitation
Sludge Concentration Limited range additional
l Materials Chemicals may be required
Odor Can be an issue
Space Substantial footprint needed

GBTs serve as an integral part of wastewater management, yet the choice to implement them should be informed by these qualifications.

Case Studies and Applications

Gravity Belt Thickeners (GBTs) are utilized in municipal wastewater treatment facilities to enhance the process of sludge concentration. They operate by allowing water to drain from the sludge through a porous belt under gravitational forces, leading to thickened sludge with reduced water content.

In Stamford, Connecticut, the Water Pollution Control Facility implemented GBTs for sludge management. This adaptation demonstrated substantial improvements in the facility’s operational efficiency, showcasing the effectiveness of GBT technology in a practical municipal setting.

Moreover, an innovative nutrient removal technology report highlighted that Waste waste-activated sludge (WAS) could be thickened effectively using gravity thickeners before undergoing further treatment. Pairing gravity belt thickeners with other processes underscores their pivotal role in comprehensive wastewater management strategies.

In New York, Local Law 97 focused on sustainability in city operations. Initiatives under this law identified the potential for sludge thickening enhancements, noting gravity belt thickeners as a part of proposed updates for the Oakwood Beach Wastewater Resource Recovery Facility, thereby aligning wastewater treatment with environmental regulations.

Besides, studies into FGD (flue gas desulfurization) products found applications for GBTs. The research indicated that running thickeners at higher sludge depths could lead to better outcomes in specific industrial settings.

Lastly, investigations into water treatment plant (WTP) residuals revealed that GBTs could be applied to treat surface water-derived waste. The technology’s adaptability to various sources of wastewater contributes to its broad applicability in the sector.

Each case reflects the GBT’s ability to merge with existing wastewater infrastructure, illustrating its adaptability and confirming its significance in modern waste management practices.

Regulations and Compliance

Gravity belt thickeners (GBTs) are subject to rigorous regulatory standards to ensure the safe and effective processing of wastewater. Compliance with federal, state, and local regulations is crucial for wastewater treatment facilities that utilize GBTs.

  • Federal Requirements: The Environmental Protection Agency (EPA) sets nationwide guidelines for biosolids management, which include the use of GBTs for centrifuge thickening and dewatering. These processes must effectively separate solids from liquids, transforming sludge into a non-liquid material, known as ‘cake’.
  • State and Local Regulations: Specific standards at the state level, such as those detailed in the Montana Circulars for Public Sewage Systems, supplement federal guidelines. These regulations can dictate stricter compliance requirements for facility plans and operational practices.

Facilities using GBTs must ensure:

  1. Documentation of compliance with all pertinent regulatory bodies.
  2. Adherence to approved facility plans encompassing major collections and treatment systems.
  3. Regular reporting of operational data to demonstrate ongoing compliance.

Operators must stay informed about the regulatory landscape, which can evolve to incorporate more stringent standards or new compliance methodologies. Keeping abreast of changes ensures GBTs are managed within legal requirements and operational best practices continue to protect community health and the environment.

Future Trends

Gravity belt thickeners (GBTs) are expected to see advancements aimed at enhancing efficiency and sustainability. The focus will be on optimizing energy consumption and increasing automation. Future GBTs may incorporate intelligent sensors that provide real-time data, enabling adaptive control systems to adjust operations for maximum efficiency.

  • Energy Efficiency
    • Development of low-energy consumption models
    • Integration with renewable energy sources
  • Automation & Control
    • Implementation of AI and machine learning algorithms
    • Enhanced process control for consistent output quality

Waste minimization is a priority, with research into reducing the volume of sludge produced by GBTs. Advancements are aimed at producing thicker sludge, which reduces transport and disposal costs.

  • Sludge Reduction
    • Use of innovative flocculants
    • Improved belt materials for better dewatering performance

Within materials technology, high-strength belts are anticipated, which have longer lifespans and require less maintenance. Nanomaterials could also be introduced to the belts to resist fouling and improve water release.

  • Material Innovations
    • Development of nano-coated belts
    • Exploration of sustainable, durable materials

Looking at regulatory compliance, trends indicate an increased focus on reducing the environmental impact. GBT systems will likely be tailored to meet stricter effluent standards and resource recovery regulations, such as nutrient recovery from wastewater streams.

  • Environmental Compliance
    • Adaptation to new effluent guidelines
    • Integration of resource recovery processes

In conclusion, Gravity belt thickeners in wastewater treatment are set to evolve significantly in the pursuit of enhanced performance, greater sustainability, and compliance with environmental standards.

Comparison with Other Thickening Technologies

Gravity Belt Thickeners (GBTs) are a widely used technology within wastewater treatment plants for sludge thickening. They operate on the principle of allowing solids to settle by gravity and then removing the concentrated sludge. Their design includes a belt and rollers, over which sludge is spread and allowed to thicken as it moves.

Comparatively, Centrifugal Thickeners rely on centrifugal force to separate solids from the liquid. They tend to be faster and can handle larger volumes, but also require more energy, which results in higher operational costs. The US EPA outlines these distinctions, emphasizing that centrifugal thickeners produce a thicker sludge, termed “cake”, more rapidly than GBTs.

Another method is the use of Gravity Thickeners, which are typically large, circular tanks with a cone-shaped bottom and scrapers. These differ from GBTs in that they are a passive system—relying solely on gravity rather than mechanical means to assist in the thickening process.

Below is a brief comparison:

Technology Energy Use Throughput Capacity Sludge Volume Reduction
Gravity Belt Thickeners Moderate Moderate High
Centrifugal Thickeners High High Very High
Gravity Thickeners Low Low Moderate

GBTs are generally considered cost-effective and efficient, particularly for small to medium-sized plants. They offer a lower energy footprint than centrifugal options and are more controlled than gravity thickeners, but they might not be suitable for all scenarios, especially where high throughput is required.

Vendor Selection and Procurement

When selecting a vendor for Gravity Belt Thickeners in wastewater treatment applications, certain criteria should be thoroughly evaluated to ensure successful procurement. These criteria broadly include technological competence, cost-effectiveness, and reliability.

Key Considerations

  • Technology Match: Selecting a vendor whose technology aligns with the specific needs of the wastewater treatment facility is crucial. Factors such as the type of sludge, the desired dryness level, and throughput must be accounted for.
  • Cost: Obtain detailed quotes and assess the cost-effectiveness of each option. This includes initial purchasing costs, as well as long-term operational and maintenance expenses.

Steps in the Procurement Process

  1. Define Specifications
    • Clearly outline the performance requirements and technical specifications for the Gravity Belt Thickener.
  2. Vendor Research
  3. Request for Proposal (RFP)
    • Send a detailed RFP to the shortlisted vendors, inviting them to submit their proposals for evaluation.
  4. Evaluation and Selection
    • Assess the proposals against a predefined set of criteria such as performance history, after-sale service, and compliance with regulations.
  5. Negotiation and Contract Awarding
    • Negotiate terms and conditions, aiming for mutually beneficial outcomes, and officially award the contract to the chosen vendor.

Additional Considerations

  • Maintenance and Service: Evaluate the vendor’s support structure and the availability of spare parts and services.
  • Regulatory Compliance: Ensure the selected Gravity Belt Thickener meets all relevant environmental and industry regulations.
  • References and Past Performance: Check the vendor’s references and history of past installations to gauge performance and reliability.

By adhering to a structured approach in vendor selection and procurement, wastewater treatment facilities can secure the right equipment that meets their operational needs and standards for performance and reliability.

Installation and Implementation

When implementing Gravity Belt Thickeners (GBTs) in wastewater treatment, there are critical steps to ensure efficient installation and operation. Initially, one must assess the impact of the GBT on existing wastewater facilities as detailed in Montana’s design standards.

Site Evaluation

  • Assess site layout for gravity sewers, lift stations, and treatment facilities.
  • Confirm the site can accommodate GBT dimensions and service requirements.

Installation Requirements

  • Foundation: A robust, level foundation must be prepared for stability.
  • Space: Adequate space around the GBT should be allowed for maintenance.

Assembly and Testing

  • Components must be assembled as specified by the manufacturer.
  • Testing of the belt and tracking systems should be completed before operation.

Operational Considerations

  • Training: Personnel must be trained in GBT operation and safety protocols.
  • Maintenance: Establish a regular maintenance schedule for belt adjustments and component inspection.

Gravity Belt Thickeners play a crucial role in the thickening phase of wastewater management, enhancing sludge concentration and reducing the volume entering the digester. The installation must align with planned output volumes and the overall capacity of the wastewater treatment facility. Regular monitoring and adjustment will optimize the performance and lifespan of the GBT.

Frequently Asked Questions

How do different gravity belt thickener designs affect wastewater treatment processes?

Different designs of gravity belt thickeners can influence the efficiency and effectiveness of wastewater treatment. Specific design features, such as the dimensions of the belt or the type of filtration media used, can affect sludge dewatering rates and the quality of treated water.

What is the operating procedure for a gravity belt thickener in sludge dewatering?

The operating procedure for a gravity belt thickener involves the continuous feeding of sludge onto a porous belt, where free water drains through the belt by gravity. Shearing forces applied by the belt's movement further separate the water from the solid particles.

In what ways does a gravity belt thickener provide benefits over other sludge thickening methods?

A gravity belt thickener offers several advantages over alternative thickening methods, such as lower operational costs, simplicity of design, and the ability to handle a wide range of sludge types. Additionally, they generally require less space and can be more energy-efficient.

What are the main differences between a gravity belt thickener and a rotary drum thickener?

The primary difference between a gravity belt thickener and a rotary drum thickener lies in the mechanism used for separation. Gravity belt thickeners use a moving belt for filtration, whereas rotary drum thickeners employ a rotating drum to condense sludge and separate the liquid.

How does the belt filter press correlate with gravity belt thickeners in terms of working principles and efficiency?

A belt filter press shares similar principles with gravity belt thickeners, such as using a fabric belt to dewater sludge. However, belt filter presses often apply higher pressure and are used for further dewatering after thickening, resulting in a dryer sludge cake and potentially higher efficiency in terms of water removal.
