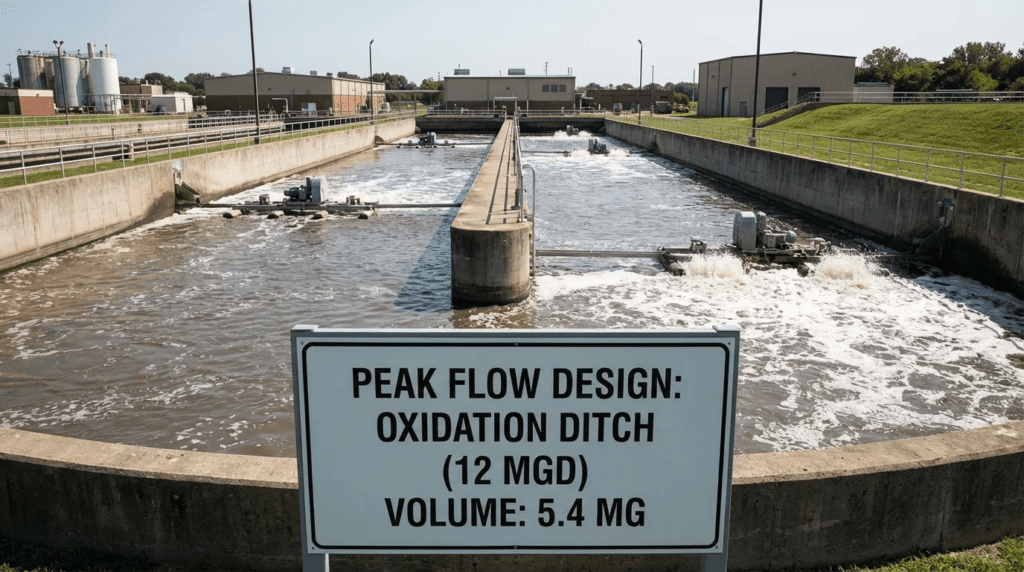

How to Size Oxidation Ditch for Peak Load

INTRODUCTION

One of the most critical challenges municipal and consulting engineers face is determining exactly How to Size Oxidation Ditch for Peak Load conditions without catastrophically over-designing the facility for its day-to-day average flows. An oxidation ditch is inherently an extended aeration process, characterized by long Hydraulic Retention Times (HRT) and high Solids Retention Times (SRT). While this provides excellent buffering capacity for organic shock loads, severe hydraulic peaking—often caused by inflow and infiltration (I&I) during storm events—can rapidly displace the Mixed Liquor Suspended Solids (MLSS) inventory into the secondary clarifiers. If the clarifiers are not sized to handle this sudden solids loading, catastrophic biomass washout occurs, resulting in permit violations and biological process failure that can take weeks to recover.

Furthermore, a surprising industry trend shows that over 40% of newly commissioned oxidation ditches suffer from chronic over-aeration during average flow conditions. Because designers size the aeration equipment exclusively for extreme peak organic loads (such as industrial batch discharges or seasonal population spikes), operators are left with surface rotors or aerators that cannot be turned down sufficiently without sacrificing the minimum channel velocity (typically 1.0 to 1.2 feet per second) required to keep solids in suspension. This results in wasted energy, poor denitrification performance, and compromised sludge settleability.

Oxidation ditches—including Pasveer, Carrousel, and Orbal configurations—are widely utilized in municipal wastewater treatment plants ranging from 0.1 MGD to over 50 MGD, as well as in industrial applications treating high-BOD wastes like food and beverage effluent. Their continuous-loop reactor design offers simultaneous nitrification-denitrification (SND) and excellent biological stability. However, improper specification at the intersection of process volume, aeration capacity, and mixing energy leads to a facility that operates inefficiently for 95% of its life while failing during the 5% of time it experiences peak stress.

This comprehensive technical article provides design engineers, utility managers, and operators with a rigorous framework for understanding how to size oxidation ditch for peak load. It covers establishing operational envelopes, selecting the appropriate aeration and mixing technologies, executing mass balance and oxygen transfer calculations, and implementing control strategies that allow the process to flex seamlessly between low-flow night cycles and extreme peak-flow storm events.

HOW TO SELECT / SPECIFY

Specifying an oxidation ditch requires balancing two distinct and often competing peak conditions: Peak Hydraulic Flow (PHF) and Peak Organic Load (POL). The following criteria outline the engineering requirements for properly sizing and specifying the ditch volume, channel geometry, and mechanical equipment.

Duty Conditions & Operating Envelope

The operating envelope of an oxidation ditch must account for extreme variability. Engineers must define the Average Daily Flow (ADF), Maximum Month Flow (MMF), Peak Hourly Flow (PHF), and peak organic loadings (BOD, TSS, TKN, and Total Phosphorus).

• Hydraulic Peaking: Ditches are typically designed with an HRT of 16 to 24 hours at ADF. During a PHF event (often 3x to 5x ADF in older collection systems), the HRT can drop to 4-6 hours. The ditch volume must be sized so that the peak velocity through the biological reactor does not strip the floc or hydraulically overload the clarifiers.
• Organic Peaking: Diurnal variations and industrial dumps represent peak organic loads. Aeration equipment must be sized to meet the Actual Oxygen Requirement (AOR) during peak BOD/TKN loading, which requires converting AOR to the Standard Oxygen Transfer Rate (SOTR) to specify motor horsepower and aerator size.
• Turndown Capability: The system must handle peak loads but operate efficiently at minimum night flows. Selecting equipment with variable frequency drives (VFDs) or utilizing independent mixing and aeration systems (e.g., fine bubble diffusers paired with slow-speed submersible mixers) allows operators to reduce aeration during low organic loads without losing the critical 1.0-1.2 ft/s channel velocity needed to prevent solids deposition.

Materials & Compatibility

Oxidation ditches present a harsh, highly corrosive, and highly abrasive environment. Continuous velocity drives grit along the channel invert, and the biological environment generates corrosive gases just above the water line.

• Concrete Channels: Specify high-density, sulfate-resistant concrete with appropriate rebar cover (minimum 2 inches). Channel inverts should be strictly leveled to prevent “dead zones” where grit and heavy sludge accumulate.
• Aeration Equipment: Surface rotors (brush aerators) and directional aerators should utilize 304L or 316L stainless steel for wetted parts. Carbon steel shafts must be heavily coated with high-build epoxy, and splash guards or covers should be specified in fiberglass reinforced plastic (FRP) or aluminum.
• Diffused Aeration: If using fine bubble diffusers, EPDM or polyurethane membranes are typical. For industrial applications with high solvent or FOG (Fats, Oils, and Grease) loads, PTFE-coated or silicone membranes may be required to prevent membrane swelling and failure.

Hydraulics & Process Performance

Understanding how to size oxidation ditch for peak load requires a deep dive into the hydraulic profile and biological process constraints. The looped channel design relies on maintaining a specific F/M (Food to Microorganism) ratio and SRT (typically 15-30 days for complete nitrification and stabilization).

• Velocity and Mixing: The mechanical equipment must impart enough kinetic energy to overcome channel friction and maintain a minimum velocity of 1.0 ft/s (0.3 m/s) at all times. Friction losses around 180-degree bends require careful baffling design.
• Step-Feed Configurations: To handle extreme peak hydraulic loads, designers should incorporate step-feed piping. By bypassing a portion of the influent flow to the middle or downstream sections of the oxidation ditch, the MLSS inventory in the first section is protected from washout, dramatically reducing the solids loading rate (SLR) onto the final clarifiers during a storm event.
• Oxygen Transfer Efficiency (OTE): Surface aerators typically offer 2.5 to 3.5 lbs O2/hp-hr, while fine bubble systems can achieve 5.0 to 7.0 lbs O2/hp-hr. Peak load sizing must account for the alpha factor (α), which drops significantly during peak industrial waste events containing surfactants.

Installation Environment & Constructability

Footprint constraints often dictate the choice of an oxidation ditch. While they require more land than high-rate activated sludge processes, their concentric or folded loop designs can be optimized.

• Baffling and Flow Directing: Constructability must include properly formed concrete flow-directing baffles at the ends of the channels to prevent short-circuiting and hydraulic dead zones.
• Equipment Access: Surface rotors require significant horizontal span clearances. Design must include walkways, hoist rings, and crane access pads for pulling massive rotor shafts or submersible mixers without draining the ditch.

Reliability, Redundancy & Failure Modes

Biological processes cannot be easily stopped for maintenance. Reliability is paramount.

• Redundancy: The Ten States Standards typically require that the process can meet peak oxygen demands with the largest single aeration unit out of service. Sizing an oxidation ditch for peak load means installing N+1 aeration capacity.
• Failure Modes: Common mechanical failures include rotor bearing wear, gearbox failure on surface aerators, and mixer prop ragging. Specifying heavy-duty, L10 life > 100,000 hours bearings and dual mechanical seals for submersible equipment is standard practice.

Controls & Automation Interfaces

Managing peak loads in an oxidation ditch relies heavily on instrumentation and SCADA integration.

• DO and ORP Pacing: Dissolved Oxygen (DO) and Oxidation-Reduction Potential (ORP) probes are positioned dynamically throughout the channel. During a peak load, SCADA ramps up aerator VFDs to maintain the DO setpoint (typically 1.5 – 2.0 mg/L in the aerobic zone).
• Ammonia-Based Aeration Control (ABAC): Advanced peak sizing incorporates ammonium/nitrate ion-selective electrodes. Instead of purely pacing off DO, the system anticipates oxygen demand based on incoming ammonia peaks, preventing the lag time that causes temporary permit violations.

Maintainability, Safety & Access

Operations personnel spend significant time navigating the perimeter of oxidation ditches.

• Ergonomics: Equipment specification must include grease lines extended to the perimeter handrails so operators do not have to lean over the biological reactor.
• Aerosols and Safety: Surface aerators generate significant aerosols. In cold climates, this leads to hazardous ice formation on walkways. Specifying splash covers or opting for submerged diffused aeration mitigates this risk.

Lifecycle Cost Drivers

The total cost of ownership (TCO) for an oxidation ditch is dominated by OPEX—specifically the electrical energy required for aeration and mixing over a 20-30 year lifecycle.

• CAPEX vs OPEX: Surface rotors have lower CAPEX but higher OPEX due to lower oxygen transfer efficiency. Fine bubble diffusers with separate mixers have a higher CAPEX but offer 30-40% energy savings, especially because mixing energy can be decoupled from aeration energy during low-load periods.
• Maintenance Labor: Consider the labor hours required to clean fine bubble diffusers (acid gas cleaning) versus greasing and maintaining surface rotor gearboxes.

COMPARISON TABLES

The following tables provide an objective framework for evaluating equipment and approaches when determining how to size oxidation ditch for peak load. Table 1 compares the primary mechanical technologies used to deliver mixing and aeration. Table 2 provides a matrix to help engineers align ditch configurations with specific application constraints and peaking profiles.

ENGINEER & OPERATOR FIELD NOTES

Theoretical sizing only goes so far. Real-world performance of an oxidation ditch during a peak event relies heavily on how the equipment was commissioned, how the specifications were enforced, and how operators manage their solids inventory leading up to an event.

Commissioning & Acceptance Testing

Commissioning an oxidation ditch requires rigorous physical and process testing before seed sludge is introduced.

• Clean Water Velocity Profiling: Prior to biological startup, fill the ditch with clean water. Use portable flow meters to verify channel velocity at multiple cross-sections and depths. The absolute minimum acceptable velocity is 1.0 ft/s (0.3 m/s) at the invert, with average velocities ideally between 1.2 and 1.5 ft/s.
• Clean Water Oxygen Transfer Testing: Perform ASCE/EWRI 2-06 clean water testing. This verifies that the aeration equipment meets the specified Standard Oxygen Transfer Rate (SOTR). This is critical; if the system fails to deliver the promised SOTR in clean water, it will catastrophically fail during a peak organic load in mixed liquor.
• VFD Turndown Verification: Ramp down the aeration equipment (rotors or blowers) to the minimum design hertz. Verify that mixing is maintained without dead zones and that mechanical resonance or vibration limits are not exceeded.

Common Specification Mistakes

Engineers often generate ambiguous bid documents that result in operational headaches.

• Ignoring the Alpha Factor in Peak Design: The alpha factor (the ratio of oxygen transfer in wastewater compared to clean water) is not static. During a peak industrial dump, the alpha factor can plummet from 0.8 to 0.4 due to surfactants. Sizing calculations must use the peak load alpha factor, not the average daily alpha factor.
• Failing to Specify Baffle Geometry: Leaving turning baffle design to the contractor often results in sharp 90-degree internal corners. Specifications must mandate smooth, curved, or properly angled flow-directing baffles to prevent hydraulic energy loss.
• Under-specifying Clarifier Interconnectivity: The oxidation ditch is only half the process; the secondary clarifier is the other. Failing to specify high-capacity Return Activated Sludge (RAS) pumps limits the operator’s ability to pull the MLSS blanket out of the clarifier and return it to the ditch during a peak hydraulic event.

O&M Burden & Strategy

Operators must actively manage the ditch to survive peak events.

• Inventory Management Before Storms: When weather forecasts predict massive I&I events, operators should proactively lower the MLSS inventory in the ditch through increased wasting (WAS). A lower MLSS concentration reduces the solids loading rate onto the clarifiers when the hydraulic surge pushes the ditch contents downstream.
• Bearing and Gearbox PMs: Surface rotors endure massive cantilevered loads and moisture. Grease lines must be purged and re-packed monthly. Gearbox oil analysis should be conducted semi-annually to detect water intrusion or metal wear before catastrophic failure.
• Diffuser Bump Cycles: For systems using fine bubble diffusers, operators should program SCADA to execute daily “bump” cycles—briefly increasing airflow to maximum capacity to flex the membrane and clear accumulated biological slime.

Troubleshooting Guide

When peak load events compromise the process, operators must act quickly to restore balance.

• Symptom – DO drops to 0 mg/L during peak organic load: Check aeration VFDs. If at 100%, verify blower output or rotor submergence. Ensure the weir elevation has not dropped, which artificially reduces rotor submergence and oxygen transfer. *Quick Fix:* Temporarily reduce the MLSS inventory if possible, or add supplemental chemical oxidation (e.g., hydrogen peroxide) in extreme industrial scenarios.
• Symptom – Loss of MLSS during storm event: The hydraulic peak is flushing the ditch. *Quick Fix:* If step-feed is available, immediately divert influent flow to the downstream passes of the ditch. Maximize RAS pumping rates to pull solids from the clarifiers back into the front of the ditch.
• Symptom – High effluent ammonia during peak load: Either insufficient oxygen or insufficient alkalinity. Verify DO is > 1.5 mg/L. Check ditch pH; nitrification consumes alkalinity. If pH is dropping below 6.8, supplemental alkalinity (magnesium hydroxide or sodium hydroxide) is required.

DESIGN DETAILS / CALCULATIONS

Understanding exactly how to size oxidation ditch for peak load requires strict adherence to mass balance engineering, biological kinetic modeling, and mechanical physics. Below is the framework engineers use to specify the system.

Sizing Logic & Methodology

The sizing of an oxidation ditch is an iterative process calculating volume, oxygen requirements, and clarifier constraints simultaneously.

1. Determine Required Mass of Organisms (MLSS Inventory):

   Using the Peak Organic Load (lbs BOD/day and lbs TKN/day), determine the target SRT required to achieve nitrification at the lowest anticipated winter temperature (typically θc > 15-20 days). Calculate the total pounds of biomass required to treat this load.

2. Calculate Ditch Volume:

   Divide the required mass of organisms by the design MLSS concentration (typically 2,500 to 4,000 mg/L for oxidation ditches). Check this volume against the Peak Hydraulic Flow (PHF) to ensure the minimum HRT does not drop below 4 hours.

3. Determine Actual Oxygen Requirement (AOR):

   Calculate oxygen demands under peak loading:
   AOR (lbs O2/day) = (lbs BOD removed x 1.2 to 1.5) + (lbs NH3-N removed x 4.6) – (lbs NO3 reduced x 2.86)

4. Translate AOR to Standard Oxygen Transfer Rate (SOTR):

   The mechanical equipment must be specified based on SOTR to account for field conditions.
   SOTR = AOR / [ α × ( ( β × τ × C*∞20 – C_L ) / C*∞20 ) × θ^(T-20) ]
   During peak organic load, assume worst-case scenarios for alpha (α = 0.5 to 0.6) and high summer temperatures (T = 25-30°C) which reduce oxygen solubility.

5. Verify Mixing Energy:

   Regardless of oxygen demand, the mechanical equipment must deliver sufficient mixing energy. A common rule-of-thumb is 0.10 to 0.15 HP per 1,000 gallons of ditch volume, or a localized power density capable of sustaining > 1.0 ft/s cross-sectional velocity.

6. Coupled Secondary Clarifier Sizing (State Point Analysis):

   You cannot size the ditch for peak flow without sizing the clarifier to match. Use State Point Analysis (SPA) to plot the gravity flux curve against the peak overflow rate (SOR) and peak solids loading rate (SLR). Ensure the clarifier area is sufficient so that the state point remains within the stable envelope during a PHF event at the design MLSS concentration.

Specification Checklist

When drafting the specification package, ensure the following are clearly delineated:

• Performance Guarantees: Demand a guaranteed Minimum Channel Velocity at Average and Minimum VFD frequencies, not just at 100% output.
• Oxygen Transfer: Require submittal of ASCE standard clean water test data for the specific aerator model and submergence depth proposed.
• Mechanical Standards: Specify AGMA service factors > 2.0 for gearboxes. Require VFD-rated motors (NEMA MG1 Part 31) equipped with thermistors and space heaters.
• Baffle Concrete Tolerances: Specify concrete forming tolerances strictly for the curved turning walls to prevent boundary layer separation and flow stalling.

Standards & Compliance

Designs must adhere to regional and national standards:

• Ten States Standards (GLUMRB): Chapter 90 covers biological treatment. Mandates N+1 aeration reliability and dictates minimum clarifier sizing guidelines based on peak hourly flow.
• ASCE/EWRI 2-06: The definitive standard for measurement of oxygen transfer in clean water.
• ASCE/EWRI 18-18: Standard guidelines for in-process oxygen transfer testing.
• WEF Manual of Practice No. 8 (MOP 8): Design of Municipal Wastewater Treatment Plants provides the empirical data for alpha factors, F/M ratios, and kinetic coefficients used in ditch sizing.

FAQ SECTION

What is the difference between peak hydraulic load and peak organic load in an oxidation ditch?

Peak hydraulic load refers to a massive volume of water (usually from stormwater I&I) moving quickly through the plant, lowering retention times and risking biomass washout. Peak organic load refers to a high concentration of pollutants (BOD/Ammonia) entering the plant, which rapidly depletes dissolved oxygen. Knowing how to size oxidation ditch for peak load requires managing hydraulic peaks with volume/clarifier capacity, and organic peaks with highly responsive aeration equipment.

How do you select aeration equipment for an oxidation ditch experiencing high peak loads?

For high peak organic loads, decouple mixing from aeration. Select fine bubble diffusers for oxygen transfer and independent submersible mixers for channel velocity. This allows the SCADA system to ramp the blowers to 100% during the peak load, and turn them down significantly during low loads without ever dropping below the 1.0 ft/s mixing velocity required to keep solids suspended.

What is the minimum channel velocity required in an oxidation ditch?

The industry standard minimum velocity is 1.0 feet per second (0.3 m/s) across the entire channel profile. However, design engineers typically aim for an average operating velocity of 1.2 to 1.5 ft/s (0.36 to 0.45 m/s) to ensure grit and heavier bio-floc do not settle in the corners or behind baffles. Allowing velocity to drop below 1.0 ft/s during low-load periods is a common operational failure.

How does a step-feed configuration help an oxidation ditch during peak storms?

Step-feed allows operators to bypass the influent flow past the first section (or pass) of the oxidation ditch. By introducing the flow further downstream, the biomass in the front of the ditch is temporarily isolated and stored, rather than being hydraulically flushed into the secondary clarifiers. This dramatically reduces the solids loading rate on the clarifiers and prevents washout.

How much does it cost to upgrade oxidation ditch aeration for peak loads?

Retrofitting surface rotors to a decoupled fine-bubble and mixer system typically costs between $1.5M and $3.5M for a medium-sized (2-5 MGD) municipal plant, depending on blower housing requirements and channel dewatering. While CAPEX is high, energy savings of 30-40% often yield a return on investment (ROI) within 7 to 10 years, alongside drastically improved peak load compliance.

Why do oxidation ditches fail to denitrify during low flows?

If the ditch relies on surface rotors for both mixing and aeration, operators must run the rotors fast enough to maintain channel velocity. If the plant is under-loaded (low organic load), this minimum mixing speed transfers too much oxygen into the water. The excessive Dissolved Oxygen (DO) destroys the anoxic zones required for denitrification, leading to elevated effluent total nitrogen.

How often should surface rotors in an oxidation ditch be maintained?

Surface rotors require rigorous preventive maintenance. Gearbox oil levels should be checked weekly, with oil replaced semi-annually or annually depending on AGMA ratings and environmental exposure. Bearings must be greased monthly. Visual inspections for splash guard integrity and blade wear should be conducted during daily rounds.

CONCLUSION

Determining exactly how to size oxidation ditch for peak load is a delicate balancing act that defines the long-term success of a biological wastewater treatment facility. Engineers must look past steady-state average daily flows and rigorously evaluate the facility’s extremes. A perfectly designed ditch at average flow is useless if a 4-hour hydraulic surge washes the MLSS inventory into the receiving stream, or if a localized industrial dump depletes the dissolved oxygen profile, causing catastrophic filamentous bulking.

The decision framework must begin with defining the exact nature of the peak: Is it hydraulic (I&I) or organic (industrial/diurnal)? Hydraulic peaks demand robust volume buffering, sophisticated step-feed capabilities, and deeply integrated clarifier State Point Analysis. Organic peaks demand aeration technologies capable of massive oxygen transfer at maximum load, combined with deep turndown capabilities that do not sacrifice the kinetic energy needed to keep the channel mixed.

By moving away from outdated, coupled mixing-and-aeration paradigms in highly variable systems, and embracing advanced process controls like Ammonia-Based Aeration Control (ABAC) and decoupled mechanical setups, design engineers can deliver oxidation ditches that are both highly resilient during worst-case scenarios and profoundly energy-efficient during the rest of their operational lifecycle. When plant directors and operators are equipped with the correct infrastructure, they can manage solids inventories proactively, ensuring consistent regulatory compliance and biological stability year-round.
