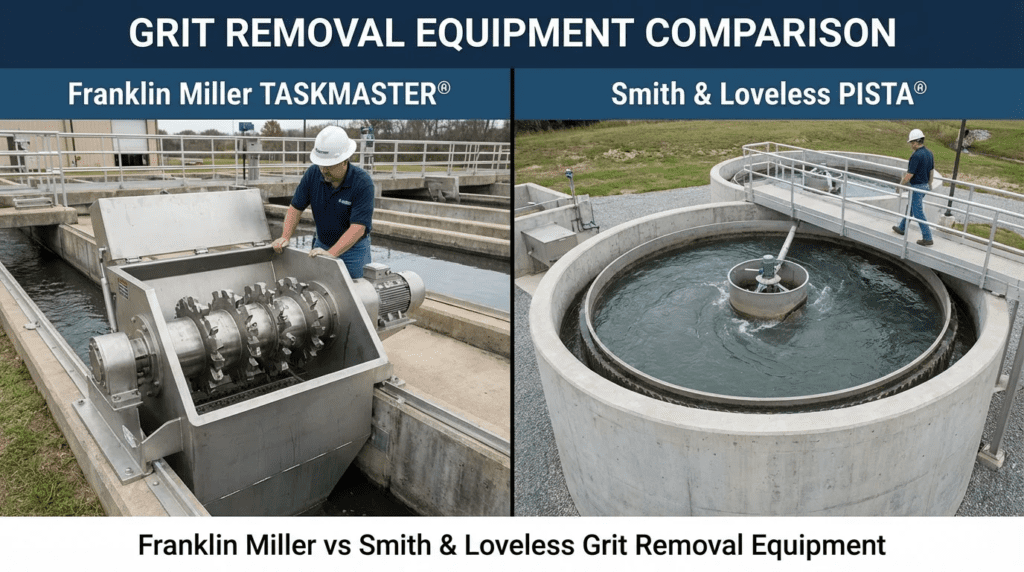

Franklin Miller vs Smith & Loveless Grit Removal Equipment

Introduction

One of the most persistent and expensive challenges in wastewater treatment plant (WWTP) operation is the downstream devastation caused by inorganic solids. Pumps with eroded impellers, clogged digestion tanks, and abrasive wear on sludge dewatering equipment cost utilities millions annually in preventable maintenance. Yet, headworks design often suffers from “copy-paste” specifications that fail to account for the specific hydraulic profiles and grit characteristics of a given influent stream. A critical decision point for many consulting engineers and plant superintendents revolves around selecting between established market leaders, often leading to a comparison of Franklin Miller vs Smith & Loveless Grit Removal Equipment.

This comparison is not merely a choice between two brands, but often a choice between distinct technological philosophies regarding particle separation, hydraulic retention, and solids handling. Smith & Loveless is ubiquitous in the industry for its hydraulic forced vortex technologies (the PISTA® line), while Franklin Miller, though famous for comminution and grinding, offers robust spiral and mechanical separation solutions (such as the SPIRALIFT® lines) that approach solids handling with a focus on washing and transport efficiency.

Improper specification at this stage is catastrophic. A grit system that achieves only 60% removal of 100-mesh grit allows 40% of the most abrasive material to pass into the secondary treatment process. Over time, this “leakage” accumulates in anaerobic digesters, reducing volatile solids reduction capacity and necessitating expensive, hazardous tank cleanouts. This article provides a rigorous, engineer-to-engineer analysis of these systems, focusing on duty conditions, hydraulic performance, and total ownership costs to assist in making data-driven specification decisions.

How to Select / Specify

When evaluating Franklin Miller vs Smith & Loveless Grit Removal Equipment, the engineer must move beyond vendor brochures and focus on the intersection of influent hydraulics and particle physics. The selection process requires a granular analysis of how each system handles the variability inherent in municipal wastewater.

Duty Conditions & Operating Envelope

The primary driver for selection is the range of flows—specifically the ratio between Minimum Daily Flow (MDF) and Peak Wet Weather Flow (PWWF). Vortex systems generally maintain efficiency across a broader hydraulic range due to the physics of the forced vortex, provided the paddle speed or hydraulic retention time (HRT) is adjusted correctly. However, mechanical screw-based systems or spiral washers must be sized for the peak hydraulic load to prevent washout, which can result in oversizing for average conditions.

Engineers must characterize the grit itself. Is the target removal 95% of 100-mesh (150 micron) particles with a Specific Gravity (SG) of 2.65? Or is the influent characterized by “snail sand” or lighter organic-coated grit with a lower SG? Smith & Loveless systems typically excel in capturing fine, high-density particles through centrifugal force. Franklin Miller’s equipment, often integrating washing and transport, is heavily dependent on the settling velocity relative to the screw uptake speed, making it highly effective for washing but potentially sensitive to high hydraulic surges if not baffled correctly.

Materials & Compatibility

Grit is inherently abrasive. The longevity of the equipment depends entirely on material hardness and corrosion resistance.

• Vortex Internals: For vortex chambers, look for stainless steel (304 or 316) internals. The floor and lower cone are high-wear zones. Some specifications call for concrete structures with embedded steel wear plates, while others utilize prefabricated steel vessels.
• Auger/Screw Components: In spiral systems, the flighting is the critical wear point. Specifications should require abrasion-resistant alloys or replaceable wear shoes on the auger flights. Franklin Miller typically utilizes heavy-duty alloy steels or stainless steel constructions, but the presence of shaftless vs. shafted spirals significantly impacts maintenance. Shaftless spirals (common in transport) eliminate the bottom bearing—a notorious failure point in submerged grit service—but require robust liners (UHMW-PE or steel bars) to prevent trough wear.

Hydraulics & Process Performance

The core performance metric is the “cut point”—the particle size at which the system achieves a specific removal efficiency (typically 95%).

In a Franklin Miller vs Smith & Loveless Grit Removal Equipment evaluation, analyze the headloss curves. Vortex systems (S&L) introduce headloss to generate the rotational velocity required for separation. This headloss is parasitic energy but essential for process performance. Mechanical systems may have lower hydraulic headloss profiles but rely on gravity settling, which requires specific footprint dimensions to maintain the necessary Surface Overflow Rate (SOR). If the plant has a limited hydraulic profile (low hydraulic grade line), this becomes a deciding factor.

Installation Environment & Constructability

Space constraints often dictate the technology. Smith & Loveless PISTA® units are frequently installed as packaged systems (steel tanks) on top of concrete pads or integrated into concrete civil works. Their footprint is relatively compact for the volume treated due to the high-energy separation environment (forced vortex).

Franklin Miller systems, particularly those involving spiral washing and transport, can be linear and elongated. They are excellent for retrofits into existing channels or aerated grit tank upgrades where linear space is available but depth might be constrained. Constructability review must include crane access for removing heavy screw assemblies or drive motors during major overhauls.

Reliability, Redundancy & Failure Modes

The failure modes differ significantly between the two distinct design philosophies:

• Vortex Systems (S&L): Failure is rarely in the chamber itself (which has no moving parts below the water line other than the paddle, depending on the model). The failure points are the ancillary systems: the top-mounted drive motor, the vacuum priming system for the grit pump, or the grit pump itself. If the grit pump clogs, the chamber fills with grit, eventually blinding the process.
• Mechanical/Spiral Systems (FM): The primary failure modes involve the screw conveyor—flight wear, liner wear, or jam-ups caused by large rags that bypass upstream screening. Redundancy strategies here focus on having spare drive assemblies and modular liner sections.

Maintainability, Safety & Access

Operator safety is paramount. Grit systems are often located in headworks buildings with potential hydrogen sulfide (H2S) presence. Systems that require operators to enter the channel for maintenance are less desirable.

Smith & Loveless designs often prioritize top-side access. The drive is elevated; the pump is often top-mounted or dry-pit installed. Franklin Miller designs also prioritize accessibility, often featuring pivot-out designs for grinders or accessible covers for spiral units. However, checking the wear on a bottom liner of a screw conveyor usually requires draining the unit and confined space entry, whereas checking a vortex paddle often does not.

Lifecycle Cost Drivers

CAPEX vs. OPEX: Vortex systems typically command a higher initial capital expenditure due to the complexity of the fluid mechanics design and the proprietary nature of the baffles and paddles. However, their OPEX can be lower regarding grit dryness and capture efficiency, reducing downstream costs. Mechanical screw systems may have lower initial costs but can carry higher maintenance burdens related to physical wear of liners and spirals over 20 years.

Energy consumption analysis must include not just the drive motors (which are low horsepower for both), but the energy cost of the grit pump and the grit washer/classifier. A holistic Franklin Miller vs Smith & Loveless Grit Removal Equipment lifecycle model includes the cost of hauling wet grit (if dewatering is poor) versus dry grit.

Comparison Tables

The following tables provide a direct comparison to assist engineers in differentiating between the technological approaches typically employed by these manufacturers. Table 1 contrasts the core technologies (Vortex vs. Spiral/Mechanical), while Table 2 outlines the application fit based on plant constraints.

Table 1: Technology & Maintenance Profile Comparison

Table 2: Application Fit Matrix

Engineer & Operator Field Notes

Real-world performance often deviates from the submittal data sheets. The following insights are gathered from commissioning reports, operator logs, and long-term maintenance records regarding Franklin Miller vs Smith & Loveless Grit Removal Equipment installations.

Commissioning & Acceptance Testing

The most common oversight in commissioning grit systems is the lack of valid performance testing. Many specifications call for “95% removal of 100 mesh grit,” but few projects budget for the “Sand Seeding” test required to verify it.

During the Factory Acceptance Test (FAT), focus on the control logic. For S&L systems, verify the vacuum priming logic sequences—this is a common nuisance alarm source. For Franklin Miller systems, verify the torque overload settings on the spiral drives to ensure they stop before mechanical damage occurs during a jam.

Common Specification Mistakes

A frequent error in specifying S&L PISTA systems is neglecting the grit pump piping run. If the suction line is too long or has air pockets, the vacuum prime system will struggle, leading to intermittent grit removal and hopper compaction. The pump must be located as close to the grit hopper as possible.

For Franklin Miller spiral systems, engineers often under-specify the liner material. Standard steel liners corrode and wear quickly. Specifications should demand wear bars or ultra-high molecular weight polyethylene (UHMW-PE) liners with visual wear indicators. Additionally, failing to specify a grit washing spray bar system often leads to putrescible organics being discharged with the grit, causing odor complaints at the dumpster.

O&M Burden & Strategy

Routine Inspection:

• Daily: Check for abnormal noise in gear reducers. Visually inspect the grit dumpster for “cleanliness” (gray/black color indicates organics; tan indicates clean grit).
• Monthly: Check belt tension on drives. Grease bearings (automatic greasers are recommended for hard-to-reach points).
• Annually: Measure wear on screw flights or vortex paddles. Check oil quality in gearboxes.

Labor Estimates: Vortex systems generally require less daily operator interaction but require higher skilled labor for pump and vacuum system troubleshooting. Spiral systems are mechanically simpler (easy to understand) but may require more physical cleaning and liner monitoring.

Troubleshooting Guide

Symptom: High Organic Content in Grit Dumpster

• Cause (Vortex): Paddle speed too slow or grit pump cycle too short (pumping too much water).
• Cause (Spiral): Spray wash water pressure too low or screw speed too fast (not allowing drainage).
• Fix: Adjust timer/VFD settings. Optimize the washing cycle.

Symptom: Grit Accumulating in Channels Upstream

• Cause: Velocity dropping below 2 ft/s upstream of the unit.
• Fix: This is a hydraulic profile design error. Aeration or channel narrowing (baffles) may be required to keep grit in suspension until it reaches the removal device.

Design Details / Calculations

Successful implementation of either Franklin Miller vs Smith & Loveless Grit Removal Equipment relies on accurate hydraulic calculations.

Sizing Logic & Methodology

Surface Overflow Rate (SOR): The governing parameter for settling.
SOR = Flow Rate (Q) / Surface Area (A)
For 100-mesh grit (SG 2.65), a typical target SOR is often cited around 3,000 to 4,000 gpd/ft² (gallons per day per square foot) for conventional settling, but vortex systems can operate at significantly higher apparent rates due to the centrifugal acceleration (effectively increasing the “g” force).

Detention Time:
Vortex systems typically require a detention time of 30 to 60 seconds at peak flow. If the detention time is too short, the secondary circulation required to separate organics from grit cannot establish itself. If too long, organics will settle out with the grit.

Specification Checklist

When writing the CSI Division 11 or 46 specifications, ensure the following are mandated:

1. Motor Service Factor: Minimum 1.15 service factor for all motors to account for the heavy starting torque of settled grit.
2. PLC Integration: Non-proprietary PLC code (e.g., CompactLogix) accessible to the plant SCADA integration team. Avoid “black box” controllers that cannot be modified.
3. Material Certifications: 316L Stainless Steel for all wetted metal parts in the grit chamber is the industry standard for longevity.
4. Spare Parts: Mandate a “commissioning spares” kit (gaskets, fuses) and a “2-year operational spares” kit (wear shoes, pump seals, belts).

Standards & Compliance

Reference AWWA Standards for coating systems and HI (Hydraulic Institute) standards for the grit pumps. Electrical components should be NEMA 4X (corrosion resistant) or NEMA 7 (explosion proof) if installed in classified areas (Class 1, Div 1 or 2), which is common in headworks buildings.

FAQ Section

What is the difference between forced vortex and free vortex grit removal?

Smith & Loveless PISTA® systems utilize a forced vortex, where a mechanical paddle rotates to induce a specific velocity and flow pattern (toroidal). This maintains constant centrifugal force regardless of influent flow rate. A free vortex relies solely on the hydraulic energy of the incoming water to create the swirl. Free vortex systems lose efficiency significantly at low flows, whereas forced vortex systems (like S&L) maintain efficiency across a wider operating envelope.

How do Franklin Miller grit systems handle “snail sand”?

Snail shells are problematic because they are flat and have different settling characteristics than spherical silica sand. Franklin Miller’s spiral/auger systems can be effective at removing shells if the settling area is sized conservatively (lower SOR). However, because shells are lighter than silica, mechanical agitation must be tuned carefully to avoid re-suspending the shells while still washing off the organics.

What is the typical lifecycle of a grit pump impeller?

In grit service, pump impellers are sacrificial. For standard Ni-Hard or High-Chrome iron impellers, a lifespan of 2 to 5 years is typical, depending on the grit load and abrasiveness. However, using recessed impeller (vortex) pumps—common in S&L packages—can extend this life because the grit does not directly impact the vanes as aggressively as in standard centrifugal pumps.

Can these systems be retrofitted into existing aerated grit chambers?

Yes. This is a common application for Franklin Miller type spiral systems. The existing concrete tank is often used as the settling zone, and the spiral unit is installed to convey the settled grit out. Smith & Loveless also offers retrofit kits (PISTA® 360) designed to fit into existing civil footprints, though they may require more concrete modifications to create the necessary vortex geometry.

Why is “organic capture” a bad thing in grit removal?

The goal is to remove inorganic solids (sand, gravel) while leaving organic solids (corn, feces, food waste) in the water to be treated biologically. If a grit system captures too many organics (putrescible matter), the grit dumpster will smell terrible, attract vectors (flies/rats), and the utility pays higher tipping fees for “wet” waste. S&L’s vortex design naturally scours organics via the toroidal flow. Franklin Miller relies on spray washing or an integrated hydro-cyclone to wash organics back into the stream.

How does headloss impact the selection of Franklin Miller vs Smith & Loveless equipment?

If your plant has very little hydraulic profile (the difference in elevation between influent and effluent), you may be constrained. Forced vortex systems (S&L) require a specific inlet velocity and generate headloss to function. Mechanical screw systems (FM) can sometimes be designed with lower headloss requirements, functioning more like a standard open channel, provided the downstream weir is set correctly.

Conclusion

The decision between Franklin Miller vs Smith & Loveless Grit Removal Equipment is not about finding a “better” brand, but about matching the physics of the technology to the hydraulics of the plant. Smith & Loveless has defined the hydraulic forced vortex market, offering high-efficiency capture in a compact vertical footprint, ideal for variable flows and rigorous organic separation. Franklin Miller brings robust mechanical reduction and transport expertise, offering spiral and screening solutions that excel in linear retrofits and integrated washing applications.

For the consulting engineer, the path to a successful design lies in characterizing the influent grit, calculating the available hydraulic head, and realistically assessing the O&M team’s capabilities. A vortex system is useless if the vacuum priming system is ignored, just as a spiral system fails if the liners are allowed to wear through. By prioritizing lifecycle costs and realistic performance verification over lowest-bid capital cost, utilities can protect their downstream assets from the abrasive inevitability of grit.
