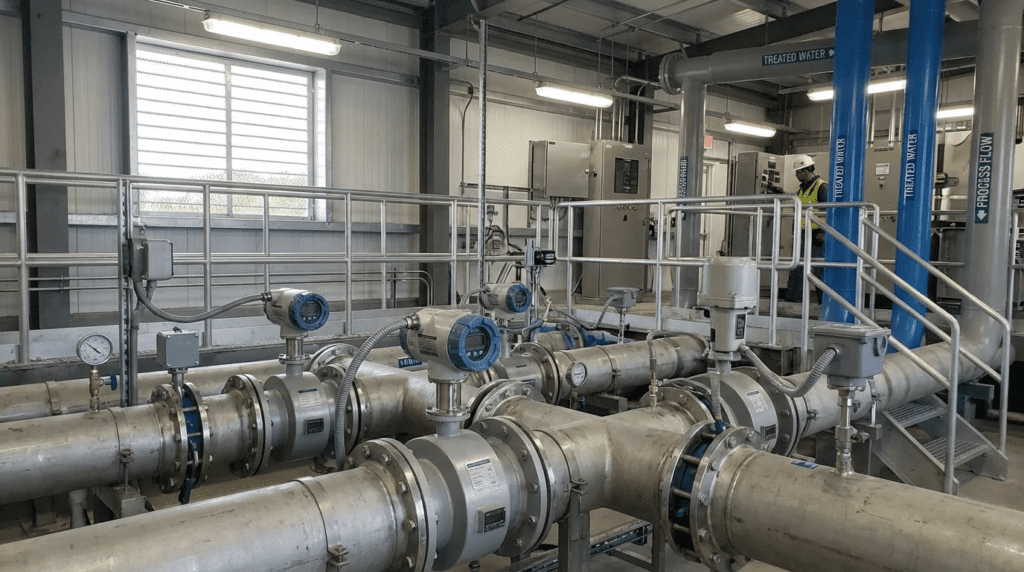

Introduction

In municipal and industrial water treatment, flow measurement is arguably the single most critical variable for process control, yet it remains a primary source of operational inefficiency. It is estimated that flow measurement errors contribute significantly to the 20-30% of Non-Revenue Water (NRW) losses seen in many aging distribution systems. Furthermore, in wastewater treatment, inaccurate influent metering can lead to improper chemical dosing, aeration inefficiencies, and regulatory compliance violations. Engineers often view flow meters as “install and forget” devices, but the reality involves complex considerations regarding fluid conductivity, straight-run requirements, and liner compatibility.

This article provides a technical evaluation of the Top 10 Flow Meters Manufacturers for Water and Wastewater to assist consulting engineers and utility decision-makers in navigating the specification landscape. While marketing literature often highlights similar features across brands, the differentiation lies in the sensor technology, diagnostic capabilities, and long-term signal stability under harsh conditions. From magnetic inductive flow meters (mag meters) handling abrasive sludge to ultrasonic clamp-on units for retrofit applications, selecting the right manufacturer requires a deep understanding of the application’s hydraulic profile.

We will examine the engineering criteria necessary to specify these instruments correctly, avoiding the common pitfall of sizing the meter based solely on line size rather than velocity profiles. This guide focuses on technical merit, maintainability, and lifecycle performance, stripping away sales rhetoric to focus on what matters for the plant’s hydraulic integrity.

How to Select / Specify

Selecting the appropriate flow measurement technology involves more than matching pipe flanges. It requires a holistic review of the process conditions, fluid characteristics, and installation constraints. When evaluating the Top 10 Flow Meters Manufacturers for Water and Wastewater, engineers must rigorously define the following parameters to ensure the specified equipment meets the facility’s design life.

Duty Conditions & Operating Envelope

The first step in specification is defining the hydraulic operating envelope. Engineers must calculate the minimum, average, and peak flow rates to determine the required turndown ratio. Most modern electromagnetic flow meters offer turndown ratios exceeding 100:1, but accuracy degrades at the low end of the curve (typically below 1-2 ft/s velocity).

Pressure and Temperature: While municipal water systems rarely exceed ANSI Class 150 pressure ratings, sludge lines and high-lift pump stations can generate significant surge pressures (water hammer). The flow meter body and liner must be rated to withstand these transient events. Temperature is critical for biological wastewater processes; while standard hard rubber liners are sufficient for ambient temperatures, industrial effluents exceeding 80°C (176°F) require PTFE or PFA liners to prevent deformation and liner collapse.

Flow Profile: Is the flow continuous, intermittent, or pulsating? Diaphragm pumps used for chemical dosing create pulsating flows that can confuse standard DC-pulsed mag meters. In these applications, high-frequency excitation mag meters or Coriolis meters may be required to capture the true volume.

Materials & Compatibility

Material selection is the primary driver of meter longevity. In the context of the Top 10 Flow Meters Manufacturers for Water and Wastewater, the differentiation often lies in the quality of liners and electrodes offered.

Read more10 Surprising Benefits of Upgrading Your Aeration Tank System

• Liners: For potable water, NSF-61 certified hard rubber or polyurethane is standard. However, for abrasive applications like grit removal or primary sludge, soft rubber or polyurethane provides better abrasion resistance than PTFE, which can wear prematurely. For highly corrosive chemical dosing (ferric chloride, sodium hypochlorite), PFA or ceramic liners are mandatory.
• Electrodes: Standard 316L stainless steel electrodes are suitable for water and mild wastewater. However, in wastewater with high sulfide content or specific industrial effluents, Hastelloy C, Titanium, or Tantalum may be required to prevent electrode pitting and signal loss.
• Grounding: Inlined meters in non-conductive pipes (PVC, HDPE) or lined metal pipes require grounding rings or reference electrodes to establish a zero potential. Failure to specify these is a leading cause of startup failure.

Hydraulics & Process Performance

The introduction of a flow meter should not negatively impact the hydraulic grade line (HGL). Full-bore electromagnetic and ultrasonic meters are generally preferred in gravity lines and pump suction headers because they offer zero head loss. Conversely, differential pressure devices (Venturi, orifice plates) or reduced-bore vortex meters introduce permanent pressure loss, which increases pumping energy costs over the lifecycle of the station.

Process performance also dictates the required accuracy. Custody transfer applications (billing) typically require ±0.2% to ±0.5% accuracy, verified by a NIST-traceable calibration rig. Process monitoring (e.g., return activated sludge) may tolerate ±1.0% to ±2.0% accuracy. Engineers must specify the accuracy “of rate” rather than “of full scale” to ensure precision at lower flows.

Installation Environment & Constructability

Physical constraints often dictate technology selection. The “Golden Rule” of flow metering typically requires 5 pipe diameters (5D) of straight run upstream and 2 diameters (2D) downstream to ensure a developed flow profile. Many brownfield retrofit projects cannot meet this requirement.

In these scenarios, engineers should look for manufacturers offering “0D/0D” or reduced run mag meters, which utilize multiple electrode pairs or flow conditioning liners to compensate for swirl and turbulence caused by elbows or valves. Additionally, for large diameter transmission mains where cutting the pipe is cost-prohibitive, insertion mag meters or clamp-on ultrasonic meters become viable, albeit with a potential trade-off in accuracy.

Submergence: In valve vaults and lift stations, the risk of flooding is high. Specifying IP68 (NEMA 6P) rated sensors with potted remote terminal boxes ensures the meter survives submersion. Engineers should specify factory-potted cables rather than field-potted connections to minimize installation errors.

Reliability, Redundancy & Failure Modes

Reliability in wastewater is often a function of resistance to coating and fouling. Grease, struvite, and biological slime can coat electrodes, insulating them from the fluid and causing signal drift. To mitigate this, engineers should specify:

• Electrode Cleaning: Some manufacturers offer ultrasonic cleaning or interchangeable electrodes that can be removed under pressure.

Read more4D-Printed Smart Materials For Water Treatment
• Diagnostic Capability: Advanced transmitters can detect “coating” status by monitoring electrode impedance, alerting operators before the signal is lost completely.
• Empty Pipe Detection: This feature prevents the meter from counting “flow” when the pipe is partially empty or full of air, a common issue in gravity sewer lines.

For critical billing or regulatory compliance points, installing dual meters (e.g., a mag meter verified periodically by a clamp-on ultrasonic) or designing bypass loops for removal without process interruption is best practice.

Lifecycle Cost Drivers

The purchase price of the flow meter (CAPEX) is often a fraction of the Total Cost of Ownership (TCO). Significant OPEX drivers include:

• Verification Costs: Can the meter be verified in-situ without removal? Manufacturers offering onboard “heartbeat” or verification software (checking magnetic field strength and coil integrity) can reduce regulatory compliance costs significantly compared to pulling meters for wet calibration.
• Energy Costs: As mentioned, pressure drop equals energy. A Venturi tube might be cheaper initially than a large mag meter, but the head loss over 20 years of pumping can cost tens of thousands of dollars.
• Consumables: Battery-powered meters for remote distribution networks reduce infrastructure costs but require battery replacement schedules.

Comparison Tables

The following tables provide an engineering comparison of the leading manufacturers and technologies. These are not rankings based on sales volume, but rather an assessment of technical capability, application fit, and support within the municipal water and wastewater sector. Use Table 1 to evaluate manufacturers for specific vendor lists, and Table 2 to determine the best measurement technology for a given application.

Engineer & Operator Field Notes

Specifying the best hardware from the Top 10 Flow Meters Manufacturers for Water and Wastewater is only half the battle. The success of the installation depends heavily on commissioning procedures and ongoing maintenance strategies. The following field notes are compiled from common engineering challenges.

Commissioning & Acceptance Testing

Commissioning a flow meter goes beyond powering it up. The “Zero Point” calibration is a critical step often performed incorrectly. The meter must be completely full of water and at zero flow velocity to establish a valid zero point. Performing this on a partially filled pipe or one with leaking isolation valves will permanently offset the meter’s accuracy curve.

FAT/SAT Protocol:
For meters larger than 12 inches, a Factory Acceptance Test (FAT) with a 3-point calibration report should be mandatory. The Site Acceptance Test (SAT) should verify:
1. Grounding integrity (< 1 ohm resistance to earth).
2. 4-20mA loop scaling matches SCADA scaling.
3. Totalizer pulse weight settings.
4. Verification of “Empty Pipe” detection threshold.

Common Specification Mistakes

One of the most frequent errors in RFP documents is “Copy/Paste” specifications. Engineers often copy specs from a 10-year-old project, inadvertently requesting obsolete protocols (like Modbus RTU when the plant is Ethernet/IP) or discontinued model numbers.

Oversizing: Engineers often match the meter size to the line size. If a 12-inch pipe carries 300 GPM, the velocity is barely 0.8 ft/s. At this velocity, solids settle, and signal-to-noise ratio drops. It is better engineering practice to reduce the meter size (e.g., to 6 or 8 inches) to keep velocity between 2-10 ft/s, ensuring self-cleaning and high accuracy, even if it requires reducer spools.

O&M Burden & Strategy

Maintenance for modern solid-state meters is minimal but not zero.
Preventive Maintenance (PM):
– Monthly: Check transmitter for error codes (Low Signal, Coil Open).
– Semi-Annually: Verify “Empty Pipe” detection works by simulating a drain (if possible).
– Annually: For mag meters, perform an electronic verification using the manufacturer’s tool (e.g., E+H FieldCheck, Siemens Verificator). This checks the magnetic coils and electronics without stopping flow.
– Bi-Annually (Wastewater): Pull and inspect electrodes for grease/struvite buildup. If the meter has a “electrode coating” alarm, use it to trigger cleaning cycles.

Troubleshooting Guide

Symptom: Reading drifts or wanders.
Root Cause: Poor grounding or electrode fouling.
Fix: Check grounding rings. If on wastewater, clean electrodes.

Symptom: Reading spikes to full scale randomly.
Root Cause: Air entrainment or electrical noise (VFD interference).
Fix: Check for cavitation upstream. Ensure signal cables are shielded and run in separate conduit from VFD power cables.

Design Details / Calculations

Sizing Logic & Methodology

Correct sizing is critical for performance. The “Golden Velocity Range” for electromagnetic and ultrasonic meters in water service is 2 ft/s to 10 ft/s (0.6 m/s to 3 m/s).

Step-by-Step Sizing:

1. Determine Peak Flow (Q_max): The maximum design flow.
2. Determine Minimum Flow (Q_min): The lowest flow expected (e.g., night flows).
3. Calculate Velocity (V):
   $$V = \frac{0.4085 \times Q}{d^2}$$
   Where Q is flow in GPM and d is ID in inches.
4. Check Constraints:
   • At Q_max, V should not exceed 15-20 ft/s (to prevent liner wear and noise).
   • At Q_min, V should be > 1.0 ft/s (for accuracy and to prevent solids settling).

5. Select Diameter: Choose the meter diameter that keeps the majority of operation within 3-8 ft/s.

Standards & Compliance

When specifying from the Top 10 Flow Meters Manufacturers for Water and Wastewater, referencing the correct standards ensures legal and safety compliance:

• AWWA M33: The primary manual for “Flowmeters in Water Supply.” Covers mag meter installation.
• NSF/ANSI 61: Mandatory for any wetted part in potable water systems (liners, electrodes).
• ISO 4064: International standard for water meters (custody transfer).
• NEC Article 500: For hazardous locations (e.g., digester gas flow, classified wet wells), explosion-proof (Class I Div 1/2) ratings are required.

FAQ Section

What is the difference between electromagnetic and ultrasonic flow meters in wastewater?

Electromagnetic (mag) meters use Faraday’s Law to measure conductive fluids and are the industry standard for wastewater because they have no moving parts and an open flow path, preventing clogging. Ultrasonic meters use sound waves; “Transit-Time” works best on clean water, while “Doppler” works on dirty water with particles. However, mag meters are generally more accurate (±0.2-0.5%) compared to clamp-on ultrasonic meters (±1-3%) and are less susceptible to flow profile disturbances.

How much straight pipe run is actually needed for a magnetic flow meter?

The standard guideline is 5 pipe diameters upstream and 2 downstream (5D/2D) from the electrode plane. However, many of the Top 10 Flow Meters Manufacturers for Water and Wastewater now offer “0D” inlet options. These models use advanced coil arrangements or built-in flow conditioners to measure accurately even when installed directly after an elbow. Always consult the specific manufacturer’s installation manual, as “0D” claims often come with slight accuracy penalties.

Why do flow meters require grounding rings?

Magnetic flow meters measure the voltage induced by fluid moving through a magnetic field. This voltage is tiny (microvolts). For the measurement to work, the fluid potential must be referenced to the meter body. In metal pipes, the pipe itself acts as the ground. In plastic or lined pipes, the fluid is electrically isolated. Grounding rings (or grounding electrodes) contact the fluid to establish this reference potential. Without them, the signal floats, causing noise and inaccuracy.

How often should flow meters be calibrated?

True “wet” calibration (removing the meter and putting it on a flow rig) is expensive and typically done every 3-5 years for custody transfer meters, or as required by local regulation. However, modern “electronic verification” (using the manufacturer’s diagnostic tool) should be performed annually. This verifies the magnetic field strength and transmitter electronics are within spec, which satisfies many environmental compliance requirements without process interruption.

Can I use a mag meter on gravity sewer lines?

Yes, but with a major caveat: the pipe must be full. Mag meters cannot measure partially filled pipes accurately. If the gravity line does not run full, you must install the meter in a “U-tube” or siphon configuration (drop leg) to ensure the sensor stays submerged. Alternatively, use an Area-Velocity meter (like Teledyne ISCO) designed specifically for partially filled open channel flow.

Conclusion

Selecting the right equipment from the Top 10 Flow Meters Manufacturers for Water and Wastewater requires a balance of hydraulic understanding and pragmatic maintenance planning. While stalwarts like Endress+Hauser, Siemens, and Krohne offer broad portfolios, niche applications might favor the specialized solutions of McCrometer or Teledyne ISCO. The most robust specification is one that details the fluid process conditions—specifically abrasion, chemical aggression, and flow range—rather than simply calling out a brand name.

For municipal engineers, the shift toward smart instrumentation allows for predictive maintenance, moving away from reactive “break-fix” cycles. By utilizing the advanced diagnostics available in modern flow meters, utilities can verify performance in-situ, ensuring regulatory compliance and revenue integrity while minimizing the total cost of ownership over the plant’s life. Always validate the installation constraints (straight run) early in the design phase to avoid costly re-piping or accuracy compromises during construction.
