Comprehensive Insights into UV Wastewater Treatment: Harnessing Light for Cleaner Water

Introduction: The Imperative Need for Effective Wastewater Treatment

As the global population escalates and industrial activities expand, the imperative for effective wastewater treatment has never been more pressing. Traditional treatment methods—though necessary—often fall short of ensuring the complete elimination of pathogens and contaminants. In this context, Ultraviolet (UV) wastewater treatment has emerged as a robust solution, garnering attention for its efficacy in disinfection and environmental sustainability. According to a 2023 study by the Water Environment Federation, UV treatment systems can reduce pathogen counts significantly, achieving up to 99.9% disinfection rates in municipal wastewater. UV wastewater treatment is one application within the wider discipline of UV water treatment, distinguished mainly by lower transmittance feed, higher solids loading, and the discharge-permit framework it must satisfy. Understanding the intricacies of UV treatment technology is crucial for wastewater treatment professionals, facility managers, and environmental policymakers aiming to improve water quality while adhering to increasingly stringent regulatory standards.

The Mechanism of UV Wastewater Treatment

1. Understanding UV Radiation and Its Application

Ultraviolet radiation is a portion of the electromagnetic spectrum, with wavelengths ranging from 10 nm to 400 nm. In wastewater treatment, UV radiation primarily falls within the UV-C range (200-280 nm), effectively disrupting the DNA of microorganisms. This process, known as photolysis, inhibits their ability to reproduce and render them harmless.

Key Benefits of UV Radiation in Wastewater Treatment:

• High Efficiency: UV treatment can disinfect at a rapid pace, treating 200-600 gallons per minute depending on system capacity.
• Chemical-Free: Unlike chlorination, UV treatment does not introduce harmful residual chemicals into the water, thus preventing public health risks associated with chemical exposure.

Diagram: UV Wastewater Treatment Process Flowchart

[Incoming Wastewater] --> [Pre-treatment (screening and sedimentation)] --> [UV Treatment Chamber] --> [Treated Water]

2. Types of UV Systems in Wastewater Treatment

Various UV systems have evolved to cater to diverse treatment needs. Understanding the differences allows operators to select appropriate systems based on specific wastewater characteristics.

• Medium Pressure UV Systems: Utilize a wider spectrum and are efficient for larger volumes of water. Recent advancements can treat 200+ gallons per minute with minimal energy costs.
• Low Pressure UV Systems: These systems operate with lower intensity and are ideal for smaller facilities or less heavily contaminated wastewater, providing up to 90% energy savings when treating less challenging effluents.
• Amalgam UV Systems: Incorporate both medium and low-pressure technologies, yielding high energy efficiency and disinfection effectiveness.

Research published in the Environmental Science & Technology journal states that amalgam systems have reported up to 25% lower operational costs compared to conventional low-pressure systems.

Implementation Considerations for UV Treatment Systems

1. System Design and Configuration

Implementing a UV treatment system requires careful design considerations to achieve optimal performance:

• Flow Rate Variability: Facilities must account for fluctuating inflow rates. Designing a modular system helps manage peak flow demand effectively.
• Contact Time: Adequate exposure time to UV light is crucial for effective disinfection. Facilities must factor wastewater quality and intended treatment levels to meet regulatory standards.

2. Maintenance Requirements

Regular maintenance is essential for the longevity and efficiency of UV systems:

• Lamp Replacement: UV lamps have a limited lifespan (typically 8,000-12,000 hours), and replacement schedules must be adhered to ensure peak performance.
• Cleaning Protocols: Quartz sleeves that house UV lamps must be regularly cleaned to prevent fouling, which can lead to decreased UV transmittance and reduced effectiveness.

3. Energy Consumption

Energy efficiency is a pressing concern in wastewater treatment operations. According to the United Nations, energy consumption in wastewater services contributes significantly to greenhouse gas emissions. Implementing variable intensity systems and automated controls can yield reductions in operating energy by up to 30%. Most of that saving comes from smart UV control, which paces lamp output against live flow and transmittance readings instead of holding the whole bank at a fixed worst-case setpoint around the clock.

Applications of UV Wastewater Treatment

UV disinfection is deployed across the full range of wastewater duties, and the design priorities shift with each one.

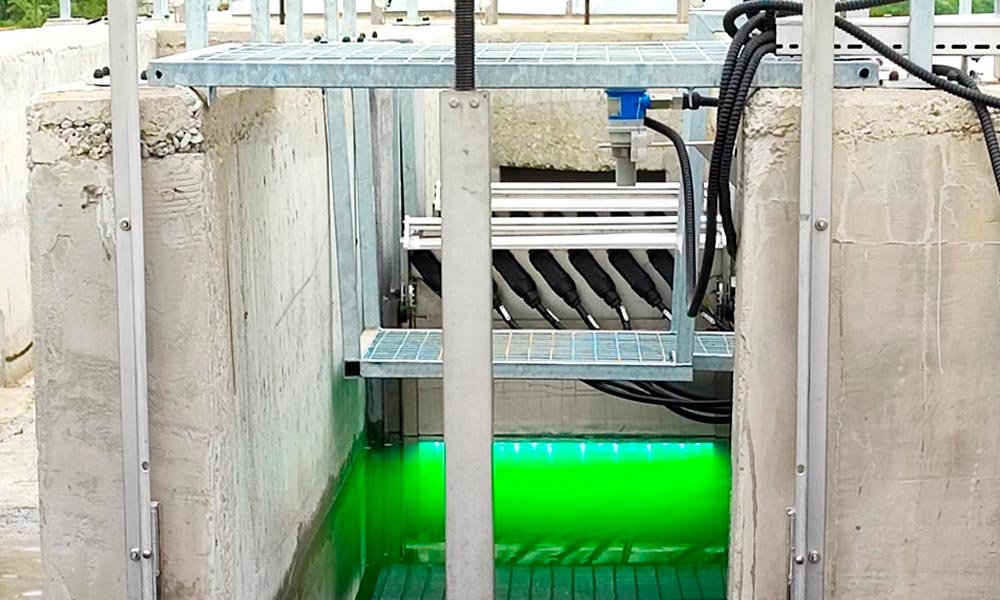

• Municipal Secondary Effluent: The largest installed base. UV banks are placed after clarification or filtration, where transmittance is highest and the permit limit for fecal coliform or E. coli drives the design dose.
• Water Reuse and Reclamation: Non-potable and indirect potable reuse schemes typically require higher log-reduction targets and validated dose delivery, which pushes facilities toward closed-vessel reactors and continuous intensity monitoring.
• Industrial Effluent: Food processing, pharmaceutical, and textile discharges often carry UV-absorbing color or turbidity that lowers transmittance, so pretreatment quality becomes the limiting factor rather than lamp count.
• Combined Sewer Overflow and Wet-Weather Flows: Intermittent, high-volume events favor systems that can bring large capacity online quickly, which is where the trade-off between lamp technologies becomes most visible.

Addressing Concerns and Challenges in UV Treatment

1. Effectiveness Against Emerging Contaminants

UV treatment shows promise not only in pathogen disinfection but also in the reduction of emerging contaminants, such as pharmaceuticals and endocrine-disrupting compounds. A 2023 study in Water Research noted that UV systems could reduce micropollutant concentrations by over 80%, demonstrating their potential as a comprehensive treatment option.

2. Cost Considerations

Initial setup costs for UV systems can be higher than traditional methods, often leading to apprehension among wastewater treatment facility managers. However, when factoring lower operational costs and energy savings, UV systems demonstrate a favorable return on investment. Transitioning to UV treatment not only meets environmental compliance but can also lower regulatory fines associated with inadequate pathogen removal, as supported by industry analyses.

3. Regulatory Compliance

Regulatory agencies, such as the U.S. Environmental Protection Agency (EPA), have tightened discharge standards, particularly for pathogen removal (Class A & Class B standards). UV treatment provides a reliable method to achieve these goals.

Frequently Asked Questions

Does UV treatment leave a disinfectant residual in the effluent?

No. UV inactivates organisms at the point of exposure but provides no residual protection downstream. Where a residual is required for distribution or reuse storage, UV is typically paired with a low dose of chlorine or chloramine after the UV stage.

Why does effluent quality matter so much for UV performance?

UV dose depends on light actually reaching the organism. Suspended solids shield microbes, and dissolved color or iron absorbs UV before it can act. A drop in UV transmittance from 65% to 55% can require a substantial increase in lamp output or contact time to hold the same dose, which is why upstream treatment quality is usually the first thing examined when a UV system underperforms.

How is UV dose verified for permit compliance?

Most regulators accept either a validated-reactor approach, where the system was bioassay-tested to deliver a certified dose across a defined range of flow and transmittance, or a calculated-dose approach backed by online intensity sensors and periodic effluent microbiology. The choice depends on the permit and on whether the effluent is bound for discharge or reuse.

Conclusion: Advancing Towards Sustainable Wastewater Treatment Solutions

As the global demand for clean water continues to grow, UV wastewater treatment stands at the forefront of environmental sustainability and public health. With a robust understanding of its mechanisms, system types, implementation challenges, and regulatory landscape, stakeholders can make informed decisions that align with both operational efficiency and sustainability goals.

The pathway to successful wastewater treatment employs advanced technologies, like UV treatment, to ensure safe, potable, and eco-friendly water returns to the environment. As industry research reveals compelling advantages, it is evident that UV technology is not merely an alternative but an essential component of the modern wastewater treatment arsenal.

In summary, understanding UV treatment’s complexities, financial implications, and multi-faceted benefits can empower facility managers and professionals to navigate the landscape of wastewater treatment effectively. Harnessing the potential of UV technology assures compliance, promotes safety, and sustains public health in the face of evolving environmental challenges.
