Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control)

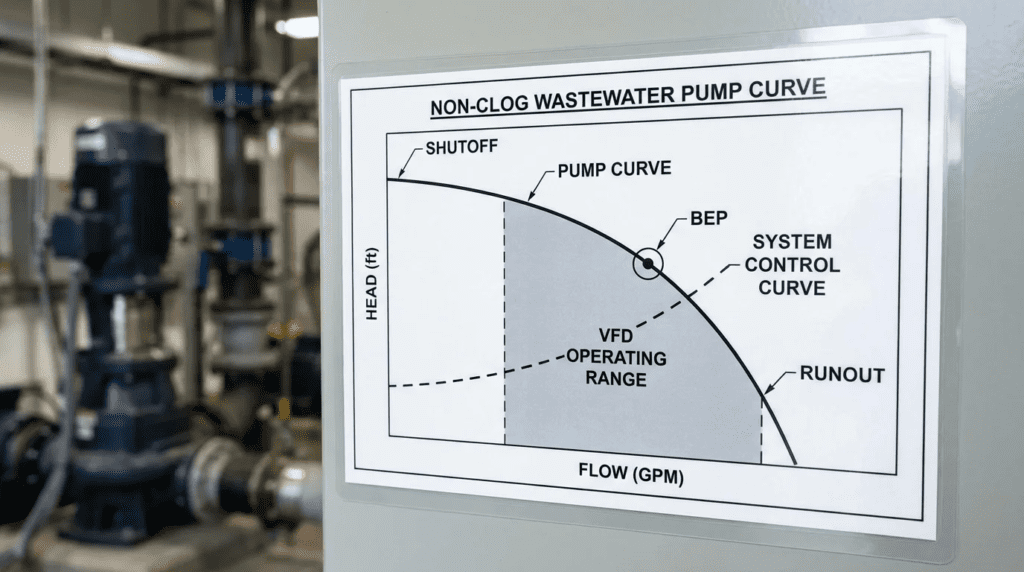

Introduction

One of the most persistent and costly issues in municipal wastewater management is not the failure of the pump itself, but the mismatch between the pump’s hydraulic design and the system’s actual operating requirements. Industry data suggests that nearly 70% of centrifugal pumps in wastewater applications operate significantly outside their preferred operating region (POR). This leads to premature bearing failure, seal leakage, and excessive energy consumption. For design engineers and facility operators, mastering the interaction between the pump curve and the system curve is the single most effective way to reduce lifecycle costs.

While specifications often focus on maximum flow requirements, the nuance lies in understanding the full operational envelope. This article serves as a technical guide to Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control). It is designed to bridge the gap between theoretical hydraulic design and the daily reality of lift station operations.

Non-clog pumps are the workhorses of the industry, utilized in raw sewage lift stations, headworks, sludge transfer, and stormwater management. Unlike clean water applications, wastewater introduces variable solids loading, ragging potential, and changing system heads due to variable levels in wet wells. Consequently, a static selection process is insufficient. Proper specification requires a dynamic understanding of how a pump behaves as it moves away from its Best Efficiency Point (BEP). This guide will help engineers and operators interpret curves correctly to avoid the damaging effects of runout and shutoff conditions, ultimately ensuring process stability and asset longevity.

How to Select / Specify

Selecting the correct pumping equipment requires more than just picking a point on a graph that meets the peak design flow. It involves a holistic analysis of the hydraulic profile, the fluid medium, and the control strategy. The following criteria outline the engineering logic required for robust pump selection.

Duty Conditions & Operating Envelope

The foundation of pump selection is the accurate calculation of the Total Dynamic Head (TDH) at various flow rates. Engineers must calculate system curves for minimum, average, and maximum static head conditions (based on wet well levels).

• Variable Flow Regimes: Wastewater flows are rarely constant. The pump must be able to operate stably across a range of flows without entering damaging vibration zones.
• Parallel Operation: When specifying duplex or triplex stations, the combined pump curve must be plotted against the system curve. Two pumps running in parallel do not double the flow; they increase flow only to the point where the combined curve intersects the system curve. This often pushes individual pumps back on their curves towards shutoff, increasing pressure and radial loads.
• Future Capacity: Designing solely for a 20-year future horizon often results in pumps that are grossly oversized for today’s flows. This forces the pump to cycle frequently or run at low speeds where solids transport velocity (scour) is compromised.

Materials & Compatibility

The term “non-clog” refers to hydraulic geometry, but material science dictates survival. Wastewater is inherently corrosive and abrasive.

• Impeller Materials: While ASTM A48 Class 30 cast iron is standard, applications with high grit load (stormwater or combined sewers) may require High Chrome Iron (ASTM A532) or hardened stainless steel (CD4MCu) to maintain hydraulic performance over time.
• Volute Construction: The cutwater is a high-wear area. In severe applications, specifying a replaceable cutwater or wear plate can extend the life of the volute housing.
• Corrosion Resistance: In septic environments with high H₂S, standard coatings may fail. Epoxy coatings or full stainless steel construction might be necessary for the wet end.

Hydraulics & Process Performance

This section is critical for Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control). The hydraulic selection dictates the mechanical stress on the unit.

• Efficiency vs. Solids Handling: There is an inherent trade-off. A semi-open vortex impeller offers excellent solids passing but lower hydraulic efficiency compared to an enclosed channel impeller. The engineer must weigh the cost of energy against the cost of unclogging interventions.
• NPSH Margin: Net Positive Suction Head Available (NPSHa) must exceed NPSH Required (NPSHr) by a safety margin (typically 3-5 feet). As pumps move to the right of the curve (Runout), NPSHr increases drastically. Ignoring this leads to cavitation, pitting, and rapid impeller failure.
• Steep vs. Flat Curves: In lift stations with variable static head, a steep H-Q curve is often preferred. It prevents massive fluctuations in flow rate as the wet well level changes, providing more stable process control.

Installation Environment & Constructability

The physical constraints of the lift station often dictate the pump type.

• Submersible vs. Dry Pit: Submersibles reduce superstructure costs and noise but require pulling the pump for maintenance. Dry pit submersibles (machines capable of running dry but rated for submersion) offer the best of both worlds—ease of access and flood protection.
• Intake Design: Poor wet well design (per Hydraulic Institute ANSI/HI 9.8) causes vortexing and pre-swirl. This alters the effective pump curve, often reducing performance regardless of the pump specified.
• Removal Systems: Guide rail systems must be robust enough to handle the torque of the pump starting without deflecting, which causes seal failure at the discharge flange.

Reliability, Redundancy & Failure Modes

Wastewater pumping systems are critical infrastructure; failure is rarely an option.

• Radial Loading: The primary cause of seal and bearing failure is shaft deflection caused by unbalanced radial forces. These forces are lowest at BEP and highest at Shutoff and Runout. Specifying pumps with robust shaft stiffness ratios (L³/D⁴) minimizes deflection when operating off-design.
• Redundancy: N+1 redundancy is standard. However, the standby pump should be rotated into service regularly to prevent seal dry-out and bearing brinelling from stationary vibration.

Controls & Automation Interfaces

Modern non-clog pumps rarely run across the line (ATL) in new installations. Variable Frequency Drives (VFDs) are the standard.

• VFD Turn-Down: Engineers must calculate the minimum frequency required to overcome static head. Running a pump below this speed results in “deadheading” (zero flow) while the pump continues to spin, heating the fluid and damaging the mechanical seal.
• Deragging Cycles: Advanced VFDs can detect incipient clogging via torque monitoring and initiate a reverse-run cleaning cycle. This must be specified in the control narrative.

Maintainability, Safety & Access

• Clearance Adjustment: As impellers wear, the gap between the impeller and the suction liner increases, causing internal recirculation and efficiency loss. Pumps with external, simplified clearance adjustment mechanisms reduce the labor burden of tuning the pump.
• Hand-Hole Cleanouts: For dry pit installations, volute hand-holes allow operators to remove blockages without disassembling the piping, a critical safety and labor-saving feature.

Lifecycle Cost Drivers

The purchase price of a pump typically represents less than 15% of its 20-year Total Cost of Ownership (TCO). Energy dominates the lifecycle cost, followed by maintenance. Selecting a pump that operates near its BEP significantly lowers energy draw and doubles the Mean Time Between Failures (MTBF).

Comparison Tables

The following tables provide a structured comparison of pump technologies and operating zones. These resources assist engineers in matching specific hydraulic designs to application constraints and helping operators identify hazardous operating regions.

Engineer & Operator Field Notes

Theory meets reality in the field. The following sections provide practical guidance for ensuring that Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control) translates into reliable station performance.

Commissioning & Acceptance Testing

Acceptance testing is the first line of defense against long-term operational headaches. A simple “bump test” for rotation is insufficient.

• Drawdown Test: Perform a volumetric drawdown test to verify actual flow rates against the submitted curve. Measure the wet well geometry, time the level drop, and calculate GPM.
• Wire-to-Water Efficiency: Measure voltage and amperage during the drawdown to calculate power draw. Compare the field-calculated efficiency against the factory curve. Significant deviation suggests either a blockage, air entrainment, or impeller damage.
• Vibration Baseline: Establish a vibration baseline (ISO 10816-1) at commissioning. This provides a reference point for future predictive maintenance. High vibration at startup often indicates resonance issues with the base or guide rails, not necessarily the pump itself.

Common Specification Mistakes

Engineers reviewing bids or writing specs often fall into specific traps:

• Oversizing for “Safety”: Adding safety factors to both head and flow results in a pump that is vastly oversized. The VFD acts as a bandage, but the pump will likely run at the far left of its curve (near shutoff) if run at full speed, or require extreme turndown that risks solids settling in the force main.
• Ignoring Minimum Scour Velocity: Selecting a pump that is highly efficient at a low flow rate is useless if that flow rate produces less than 2.0 ft/s (0.6 m/s) velocity in the force main. Solids will settle, leading to sulfide generation (odors/corrosion) and eventual line blockage.
• Ambiguous Solids Handling: Specifying “3-inch solids handling” is vague. Does this mean a hard 3-inch sphere or a 3-inch deformable mass? Different impeller types handle these differently. Be specific about the waste stream characterization.

O&M Burden & Strategy

An effective O&M strategy shifts from reactive (fix it when it breaks) to predictive.

• Amp Draw Monitoring: Amperage is a proxy for load.
  • Low Amps: Suggests the pump is air-bound, the impeller is worn (clearance too wide), or the pump is running at runout (depending on specific speed, though usually amps drop at shutoff for radial vanes). *Correction: For radial flow centrifugal pumps, power rises with flow. Low amps usually mean low flow (shutoff or blockage).*
  • High Amps: Suggests ragging (drag on impeller), bearing drag, or operation at runout (pumping too much water).

• Preventive Maintenance (PM):
  • Quarterly: Check oil chamber for water intrusion (seal failure).
  • Semi-Annually: Inspect wear ring clearance. Adjust if >0.020″ to restore efficiency.
  • Annually: Megger the motor windings and check cable entries.

Troubleshooting Guide: Reading the Curve in Reverse

When a pump underperforms, the curve can diagnose the issue:

• Symptom: High Head, Low Flow. You are likely operating to the left of BEP. Check for partially closed valves or increased system head (force main blockage).
• Symptom: Low Head, High Flow. You are operating to the right of BEP (Runout). This might happen if a parallel pump shuts down, reducing friction head in the common manifold, allowing the remaining pump to “run out.”
• Symptom: Surging. Operating in the unstable region of the curve (often the “droop” near shutoff). This causes the pump to hunt for an operating point.

Design Details / Calculations

This section outlines the mathematical framework for sizing and checking Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control).

Sizing Logic & Methodology

Proper sizing requires plotting the System Curve and overlaying the Pump Curve.

1. Determine Static Head: $H_{static} = H_{discharge\_elevation} – H_{wet\_well\_level}$. Calculate for Minimum and Maximum wet well levels.
2. Calculate Friction Head: Use the Hazen-Williams equation: $h_f = 0.002083 \times L \times (100/C)^{1.85} \times (Q^{1.85} / d^{4.8655})$.
   • $L$ = Equivalent length of pipe (including fittings).
   • $C$ = Roughness coefficient (Use 120 for new plastic, 100 for old iron).
   • $Q$ = Flow in GPM.
   • $d$ = Pipe diameter in inches.

3. Total Dynamic Head (TDH): $TDH = H_{static} + h_f$. Plot this for a range of flows to create the System Curve.
4. Intersection Point: The point where the Pump Curve crosses the System Curve is the Operating Point. This point must fall within the Preferred Operating Region (POR), typically 70% to 120% of BEP flow.

Specification Checklist

When writing Division 43 specifications, ensure these critical parameters are defined:

• Design Point: GPM @ TDH (Primary Operating Point).
• Secondary Point: GPM @ TDH (Runout or Check point).
• Minimum Efficiency: Specify minimum hydraulic efficiency at the Design Point.
• Shutoff Head: Minimum required shutoff head (must exceed max static head).
• NPSH3: Required NPSH plus a specific margin (e.g., +5 ft).
• Vibration Limit: Maximum allowable velocity (e.g., 0.15 in/sec) at the operating point.

Standards & Compliance

• Hydraulic Institute (HI) Standards: Reference ANSI/HI 1.3 (Rotodynamic Centrifugal Pumps for Design and Application) and ANSI/HI 9.6.3 (Guideline for Allowable Operating Region).
• AWWA: C-standards for materials.
• NEC (NFPA 70): Hazardous location classification (Class 1, Division 1 or 2) is critical for wet well pumps. Explosion-proof (Ex) motors are mandatory in many wastewater applications.

Affinity Laws for VFD Control

When using a VFD, operators must understand how speed changes affect performance:

• Flow (Q) is proportional to speed: $Q_2/Q_1 = N_2/N_1$
• Head (H) is proportional to the square of speed: $H_2/H_1 = (N_2/N_1)^2$
• Power (P) is proportional to the cube of speed: $P_2/P_1 = (N_2/N_1)^3$

Critical Note: The Affinity Laws assume friction-only systems. In wastewater lift stations with static head, the pump curve drops, but the static head requirement remains constant. If you slow the pump too much, the pump produces less head than the static elevation requires, resulting in zero flow (churning). VFD minimum speed must be calculated to ensure the pump generates enough head to overcome static lift.

FAQ Section

What is the Best Efficiency Point (BEP) in wastewater pumps?

The Best Efficiency Point (BEP) is the flow rate and head at which the pump operates with maximum hydraulic efficiency. At this point, the fluid flows through the impeller and volute with minimal turbulence. Operating at BEP minimizes radial forces on the shaft, reducing vibration and extending the life of bearings and seals. For Non-Clog Wastewater Pumps, operators should aim to keep the pump running between 70% and 120% of the BEP flow rate.

What happens when a pump runs at “Runout”?

Runout occurs when a pump operates at the far right of its performance curve (high flow, low head). In this zone, the pump moves more fluid than it was designed for, leading to high flow velocities. This often causes cavitation (insufficient NPSH), excessive vibration, and motor overload (high amp draw). In wastewater systems, runout can happen if a discharge pipe breaks or if a pump is run singly in a system designed for high friction losses with multiple pumps.

What is “Shutoff Head” and why is it dangerous?

Shutoff head is the maximum pressure a pump can generate at zero flow. Operating near shutoff (far left of the curve) is dangerous because the energy put into the fluid is not leaving the pump; instead, it is converted into heat. This can boil the fluid in the volute, damaging seals and causing “thermal shock” to the impeller. It also creates extreme radial loads that deflect the shaft, causing rapid bearing failure.

How do I determine the minimum speed for a VFD-controlled wastewater pump?

The minimum speed is determined by the static head of the system. The pump must spin fast enough to generate pressure greater than the vertical distance the water must be lifted. If the speed drops below this threshold, flow stops completely. To calculate this, verify the pump curve at reduced speeds (using Affinity Laws) and identify the RPM where the shutoff head equals the system static head. Add a safety margin (usually 10-15%) to establish the minimum VFD frequency.

Why is “Non-Clog” pump selection different from clean water pumps?

Non-clog pumps must balance hydraulic efficiency with solids-passing capability. A clean water pump has tight clearances and narrow vanes for efficiency, which would clog instantly in wastewater. Non-clog pumps use vortex, screw, or wide-channel impellers to pass solids (often 3-inch spheres). This geometry creates different curve characteristics (often steeper or with a “dip”) and requires specific attention to the Pump Curve Reading for Operators to ensure the chosen pump doesn’t rag up or vibrate excessively at the required duty point.

How often should wastewater pump curves be verified in the field?

Pump performance should be verified annually or whenever a significant change in performance (flow drop, vibration, noise) is noticed. A drawdown test in the wet well is the standard method. Over time, impeller wear opens up clearances, causing the pump curve to “droop” (produce less head/flow). Verifying the curve helps operators decide when to adjust wear rings or replace impellers before a catastrophic failure occurs.

Conclusion

Mastering Non-Clog Wastewater Pumps Pump Curve Reading for Operators (BEP Runout Shutoff and Control) is less about memorizing hydraulic formulas and more about understanding the mechanical consequences of hydraulic decisions. Whether you are a consulting engineer specifying a new lift station or a plant superintendent troubleshooting a vibrating pump, the curve holds the answer.

By shifting focus from initial capital cost to operational reliability—defined by operating near Best Efficiency Point and avoiding the extremes of Runout and Shutoff—municipalities and industries can realize massive savings in energy and maintenance. The pump is merely a machine; it is the proper application of that machine against the system curve that determines success or failure. Use the data, test the curves, and specify for the reality of the wastewater environment, not just the theoretical design condition.
