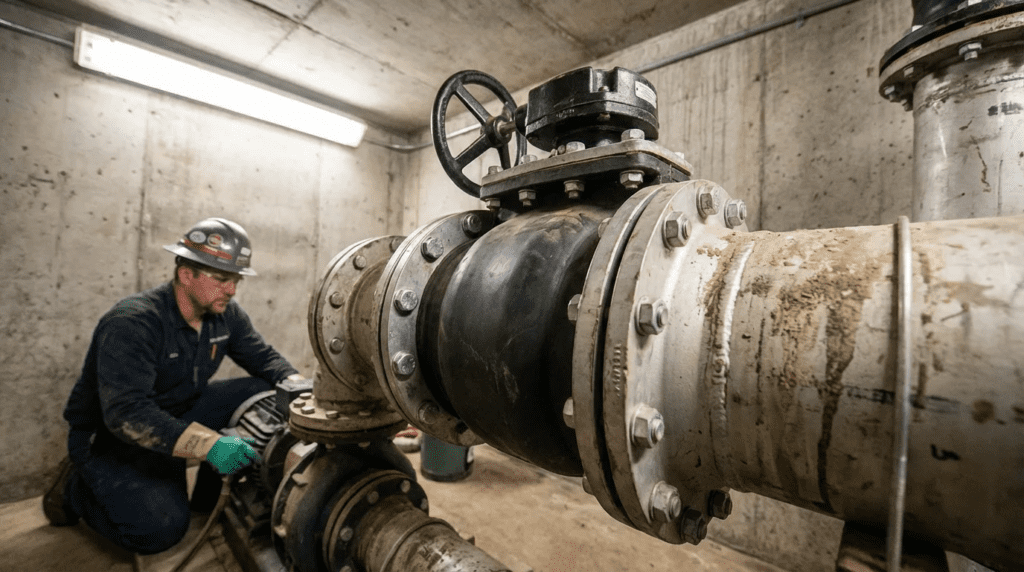

1. INTRODUCTION

In the hydraulic architecture of municipal and industrial water and wastewater treatment systems, the handling of abrasive slurries, viscous sludge, and corrosive chemicals presents a distinct challenge to valve longevity. Traditional isolation technologies, such as gate, plug, and ball valves, frequently suffer from seat degradation, clogging, and mechanical binding when subjected to fluids with high solids content. The pinch valve, characterized by its straight-through flow path and elastomeric sleeve, serves as a critical solution for these difficult service conditions.

Pinch valves operate by utilizing a flexible sleeve—the only wetted part of the valve—which is compressed (pinched) mechanically or pneumatically to restrict or stop flow. Because there are no crevices, dead spots, or mechanical bearings in the flow stream, pinch valves are uniquely suited for applications where clogging and abrasion are primary failure modes. In wastewater treatment plants (WWTPs), they are the industry standard for raw sewage, grit removal, lime slurry lines, primary sludge, and thickened waste activated sludge (TWAS). In industrial water treatment, they are essential for mine tailings, chemical dosing, and pneumatic conveying systems.

For the consulting engineer and plant superintendent, the selection of an Original Equipment Manufacturer (OEM) for pinch valves is not merely a procurement exercise but a determination of long-term process reliability. While the operating principle is simple, the engineering behind the elastomer formulation, the closure mechanism geometry, and the housing integrity varies significantly between manufacturers. Poor selection can lead to premature sleeve failure, resulting in catastrophic leakage of hazardous media, unscheduled plant downtime, and complex maintenance procedures in confined spaces.

This article provides a technical, specification-focused analysis of the top OEMs for pinch valves. It evaluates manufacturers based on their engineering merits, product limitations, and suitability for specific hydraulic and environmental conditions found in public works and utility infrastructure.

2. HOW TO SELECT THIS VALVE TYPE

Selecting a pinch valve requires a departure from the criteria used for rigid-body valves. The focus shifts from metallurgy and seat design to elastomer science and closure geometry. Engineers must evaluate the following technical criteria to ensure the specified valve meets the duty cycle and lifecycle cost expectations of the facility.

Valve Function and Duty Cycle

Pinch valves are utilized for both on/off isolation and flow control (throttling). However, the internal geometry required for these two functions differs.

• Isolation: For isolation, the primary goal is a drop-tight seal (Class VI shutoff) with minimal stress on the sleeve in the open position. Full-port designs are preferred to minimize pressure drop and allow for pigging or mechanical cleaning.
• Throttling/Control: Control applications require a pre-pinched or reduced-port sleeve design to improve rangeability and shift the flow coefficient (Cv) curve to a linear or equal-percentage characteristic. Using a standard full-port pinch valve for fine control near the closed position can lead to “chatter,” sleeve instability, and rapid erosion due to high velocity at the pinch point.

Elastomer Sleeve Selection (The Wetted Part)

Read more4D-Printed Smart Materials For Water Treatment

The sleeve is the heart of the valve and the primary consumable. Specification of the correct elastomer is critical.

• Natural Rubber (NR): Offers the highest abrasion resistance and fatigue life. It is the standard for grit, raw sewage, and inorganic slurries.
• EPDM: Required for applications involving high temperatures or specific chemical resistance, such as certain acids or alkaline solutions used in pH adjustment.
• Nitrile (Buna-N): Essential for fluids containing oils, fats, and greases (FOG), often found in scum lines or industrial effluent.
• Chlorosulfonated Polyethylene (CSM/Hypalon): Often specified for oxidizing chemicals and ozone resistance.

Engineers must also specify the reinforcement method. High-pressure applications require sleeves reinforced with high-strength fabric (nylon, polyester, or Kevlar) or steel wire to prevent ballooning and bursting.

Closure Geometry and Mechanism

The method by which the sleeve is compressed dictates the valve’s centerline performance and actuation torque.

• Single-Acting (Pinch from one side): A compressor bar pushes the sleeve against the bottom housing. This is simpler and less expensive but creates a weir effect that can increase turbulence.
• Double-Acting (Centerline closure): Two pinch bars close simultaneously from top and bottom. This maintains a centerline flow, reducing turbulence and wear on the sleeve. It is preferred for control applications and high-velocity abrasive lines.
• Air-Operated (Direct Pneumatic): Compressed air is injected into the annular space between the housing and the sleeve, collapsing the sleeve. This design is ideal for rapid cycling and systems where mechanical actuators are impractical, but it requires a reliable air supply and specific differential pressure calculations.

Pressure and Vacuum Conditions

Pinch valves have pressure limitations compared to metal valves. Consulting engineers must verify the working pressure against the sleeve’s burst pressure rating. Furthermore, vacuum conditions are a critical failure mode. If a line operates under negative pressure (vacuum), a standard sleeve will collapse inward, restricting flow. In these scenarios, the specification must call for a vacuum-equalizing connection or a specially reinforced sleeve designed to resist collapse.

Maintenance and Serviceability

Read moreABB vs PRIMEX for Other Autom/Ctrls: Pros/Cons & Best-Fit Applications

Lifecycle cost is driven by the frequency and ease of sleeve replacement.

• Open Frame vs. Enclosed Body: Open frame valves allow visual inspection of the sleeve and are lighter, but if a sleeve bursts, the media sprays into the environment. Enclosed body valves contain leaks but require drain ports or sensors for failure detection.
• Sleeve Change-out: Some designs require the valve to be removed from the pipeline for sleeve replacement, while split-body designs allow in-line replacement. For large diameter valves (DN 300+), in-line maintainability significantly reduces downtime and crane requirements.

Actuation Requirements

Because the actuator must overcome the resilience of the reinforced rubber sleeve plus the line pressure, pinch valves require high thrust or torque. Electric actuators must be sized with sufficient safety factors to account for sleeve hardening (aging) over time. Pneumatic actuation is common but requires fail-safe considerations (spring-return vs. air tank backup) to ensure the valve fails to the safe position (open or closed) upon loss of air.

3. COMPARISON TABLE

The following table helps engineers and operators evaluate the core competencies of the top pinch valve OEMs. It is not a ranking but a contextual guide to understand where each manufacturer fits within the hydraulic infrastructure. It highlights differences in sleeve technology, housing design, and primary application focus to assist in writing non-proprietary yet technically specific procurement documents.

4. TOP OEM MANUFACTURERS

DeZURIK

DeZURIK is a stalwart in the municipal water and wastewater industry, recognized for producing valves that prioritize longevity in harsh environments. In the realm of pinch valves, DeZURIK’s offering is engineered for heavy-duty isolation and control. Their designs typically feature robust cast iron or fabricated steel bodies, making them suitable for exposed plant piping where external impact or vibration is a concern.

Technical Strengths:
DeZURIK pinch valves are notable for their extended face-to-face options which allow them to replace other valve types (like gates or plugs) without piping modifications. Their sleeve manufacturing process ensures consistent wall thickness, which is crucial for predictable actuation forces. DeZURIK offers both open-frame and enclosed body styles. The enclosed body designs are particularly favored in wastewater treatment plants for sludge lines, as they contain any potential leakage resulting from sleeve failure, preventing environmental contamination.

Best-Fit Scenarios:
Engineers should consider DeZURIK for large-diameter raw sewage headers, pump isolation valves, and applications where the valve must integrate seamlessly into a broader DeZURIK plant standard (including plug and butterfly valves). Their high-pressure designs are capable of handling the discharge pressures of positive displacement pumps used in sludge transfer.

Red Valve / Tideflex

Red Valve is arguably the most recognizable name specifically dedicated to pinch valve technology. Often associated with their Tideflex check valve line, Red Valve’s pinch valve portfolio is extensive, covering everything from simple manual isolation valves to highly sophisticated control valves equipped with smart positioners. They were instrumental in developing the “Cone” and “Dumbbell” sleeve geometries that allow pinch valves to be used effectively for throttling without the cavitation damage associated with standard full-port sleeves.

Technical Strengths:
The primary differentiator for Red Valve is their engineering data regarding flow control. They provide extensive Cv curves and sizing data, allowing engineers to model system performance accurately. Their Series 5200 Control Valve is a standard in the industry for lime slurry modulation, featuring a heavy-duty mechanism that closes on centerline to ensure accurate flow capability. Red Valve also offers “Smart” technology, embedding wear sensors into the sleeve wall to alert operators of imminent failure before a breach occurs.

Best-Fit Scenarios:
Red Valve is the preferred specification for flow control applications involving slurries, such as lime dosing or polymer feed. They are also highly specified in critical isolation applications where sleeve failure monitoring is a safety requirement. The breadth of their elastomer library allows for precise matching to aggressive chemical profiles.

Onyx Valve

Onyx Valve Company focuses heavily on the durability and serviceability of the pinch mechanism. Their design philosophy centers on maximizing sleeve life and ensuring drop-tight closure even when solids are trapped in the sealing area. Onyx manufactures both hand-wheel and automated pinch valves, as well as distinct pressure sensor rings (isolator rings) often used in conjunction with slurry pumps to protect gauges.

Technical Strengths:
Onyx valves typically utilize a full round bore, which minimizes pressure drop and turbulence. Their sleeves are often hand-fabricated, allowing for custom reinforcement schedules based on the application’s pressure requirements. A key feature in some Onyx designs is the ability to change the sleeve without removing the valve from the line (in specific housing configurations), which is a significant advantage for maintenance teams. They also specialize in electric actuation packages that are pre-calibrated to prevent over-torquing the sleeve—a common cause of premature failure.

Best-Fit Scenarios:
Onyx is an excellent choice for sludge dewatering feeds and biosolids handling where reliability and ease of maintenance are paramount. Their isolator rings are also standard accessories for protecting instrumentation on sludge lines, often making them a dual-source vendor for valve and instrument protection.

AKO Valves

AKO Valves (AKO Armaturen & Separationstechnik) brings a distinct European engineering focus to the pinch valve market. They are best known for their modular Air Operated Pinch Valves (AOV). While they produce mechanical pinch valves, their dominance lies in pneumatic direct-acting designs where compressed air is used to collapse the sleeve.

Technical Strengths:
The modularity of AKO valves is a significant engineering advantage. Their designs often consist of a few simple components—housing, sleeve, and end connections—held together by a press-fit or screwed arrangement. This allows for extremely rapid sleeve replacement, often taking only minutes. Their sleeves are designed with high-elasticity fabrics that allow for millions of open-close cycles, making them ideal for high-frequency batching operations. The compact, lightweight design of their air-operated series reduces pipe stress and support requirements.

Best-Fit Scenarios:
AKO is widely specified for chemical dosing skids, vacuum toilet systems, and pneumatic conveying of grit or dried sludge. They are less common on large-diameter high-pressure transmission mains but are the leader for auxiliary systems, sampling lines, and automated batch processes where compressed air is readily available.

Flowrox

Flowrox (now part of Valmet, but historically and specified as Flowrox) has its roots deep in the mining and metallurgy industries. Consequently, their valves are engineered to handle the most abrasive and aggressive media imaginable. In the context of water and wastewater, this translates to exceptional performance in grit removal and sand handling applications.

Technical Strengths:
Flowrox valves are characterized by their heavy-duty construction. The PVE (enclosed) and PVG (open) series are built to withstand heavy external loads and internal hammer. Their sleeve technology utilizes advanced rubber compounds originally developed for mineral processing, offering superior resistance to cutting and gouging from sharp grit particles. Flowrox also emphasizes “smart” valve technology, offering diagnostic packages that monitor sleeve wear and valve position feedback, integrating seamlessly into SCADA systems.

Best-Fit Scenarios:
Flowrox is the specification of choice for the “worst of the worst” applications in a WWTP—specifically headworks grit removal, hydro-cyclone feed and underflow, and lime slurry systems where abrasion is the primary limiting factor for valve life. Their high-cycle capability makes them suitable for automated grit dump valves.

5. APPLICATION FIT GUIDANCE

Matching the OEM strength to the specific hydraulic application is essential for system optimization.

Municipal Wastewater (Sludge and Biosolids)

For Primary Sludge, Return Activated Sludge (RAS), and Thickened Waste Activated Sludge (TWAS), reliability and containment are key.
Preferred approach: DeZURIK and Red Valve are the heavyweights here. Enclosed body designs are mandatory to prevent spills. Red Valve is often preferred if flow control/throttling of the sludge is required, whereas DeZURIK is often the choice for reliable on/off pump isolation.

Grit Removal and Abrasive Slurries

Grit slurry is essentially liquid sandpaper.
Preferred approach: Flowrox and Onyx Valve excel here. The mining heritage of Flowrox provides sleeves that resist the gouging action of sand and grit particles. The focus should be on natural rubber sleeves with high rebound resilience.

Chemical Dosing (Lime, Ferric, Polymer)

Lime slurry causes scaling; polymers are viscous; ferric is corrosive.
Preferred approach: Red Valve (Series 5200) is the industry standard for control of lime slurry due to its linear flow characteristics. For smaller, skid-mounted chemical batching or sampling, AKO Valves offers a compact, cost-effective air-operated solution that handles high cycle rates efficiently.

Pneumatic Conveying and Vacuum Systems

Moving dried biosolids or grit via air pressure or vacuum requires rapid cycling and vacuum resistance.
Preferred approach: AKO Valves. Their air-operated pinch valves (AOVs) are designed to close rapidly and seal tight against air pressure. The ability to replace sleeves quickly is a major benefit in high-cycle conveying lines.

Automated vs. Manual Operation

For fully automated plants using electric actuation: DeZURIK and Red Valve offer robust ISO mounting interfaces and withstand the torque of heavy actuators. For pneumatic actuation, AKO provides the simplest direct-air solution, while Onyx and Flowrox offer excellent linear pneumatic cylinder actuation packages.

6. ENGINEER & OPERATOR CONSIDERATIONS

Beyond selecting the OEM, successful implementation depends on installation details and maintenance protocols.

Actuator Sizing and “Set”

One of the most common issues with pinch valves is actuator sizing. Unlike metal-seated valves, the torque required to close a pinch valve can change over time. As the elastomer sleeve ages, it may harden (“set”), requiring more force to achieve a drop-tight seal. Engineers should specify actuators with a safety factor of at least 25-50% above the theoretical closing torque. However, operators must be trained not to “over-torque” the valve in an attempt to stop a leak caused by a worn sleeve, as this can destroy the closure mechanism.

Vacuum Protection

If a pinch valve is installed on the suction side of a pump or in a siphon line, the negative pressure can suck the sleeve into the flow path, restricting flow even when the valve is open. In these instances, the specification must call for a vacuum equalization line (connecting the process line to the valve body interior) or a sleeve with integral vacuum stiffening rings. This is a common oversight in specification that leads to mysterious flow restrictions during operation.

Leak Detection and Spillage Containment

Sleeves will eventually fail. It is not a matter of “if,” but “when.” For enclosed body valves, the housing fills with process fluid upon sleeve rupture.
Best Practice: Specify a leak detection sensor (conductivity probe or pressure switch) on the valve body drain port. This allows the SCADA system to trigger an alarm immediately upon sleeve failure. For critical installations, ensure the valve body is rated for the full line pressure to act as secondary containment.

Storage and Spares

Elastomers degrade with UV exposure and ozone. Spare sleeves should be stored in cool, dark environments, ideally wrapped in black plastic to prevent UV attack. Engineers should enforce a “first-in, first-out” inventory policy for sleeves. A sleeve that has sat on a shelf for five years may have already lost significant fatigue life before installation.

Installation Orientation

While pinch valves can be installed in any orientation, vertical flow (upwards) is often preferred for slurries to prevent solids from settling in the valve belly when closed. If installed horizontally, verify that the valve is self-draining and that the closure mechanism does not create a pocket where solids can accumulate and harden.

7. CONCLUSION

The pinch valve remains the superior technical solution for handling the difficult, abrasive, and clogging fluids inherent to water and wastewater treatment. However, the simplicity of the concept masks the complexity of the engineering required to manufacture a reliable product. The “sleeve” is not merely a rubber tube; it is a highly engineered composite component that dictates the safety and efficiency of the process line.

For the consulting engineer and utility decision-maker, the choice of OEM should be driven by the specific demands of the application. DeZURIK and Red Valve offer the breadth and heavy-duty construction required for main process lines and critical control applications. Flowrox provides unmatched durability in extreme abrasion scenarios like grit handling. Onyx Valve delivers reliability and unique maintenance features for sludge isolation, while AKO Valves offers modular efficiency for auxiliary and pneumatic systems.

By focusing on the elastomer formulation, closure geometry, and lifecycle maintainability rather than initial purchase price alone, utilities can ensure their systems operate with minimal downtime and maximum safety. A well-specified pinch valve from a top-tier OEM is an investment in process integrity.
