Wastewater Treatment Valves: Types Selection and Application Guide

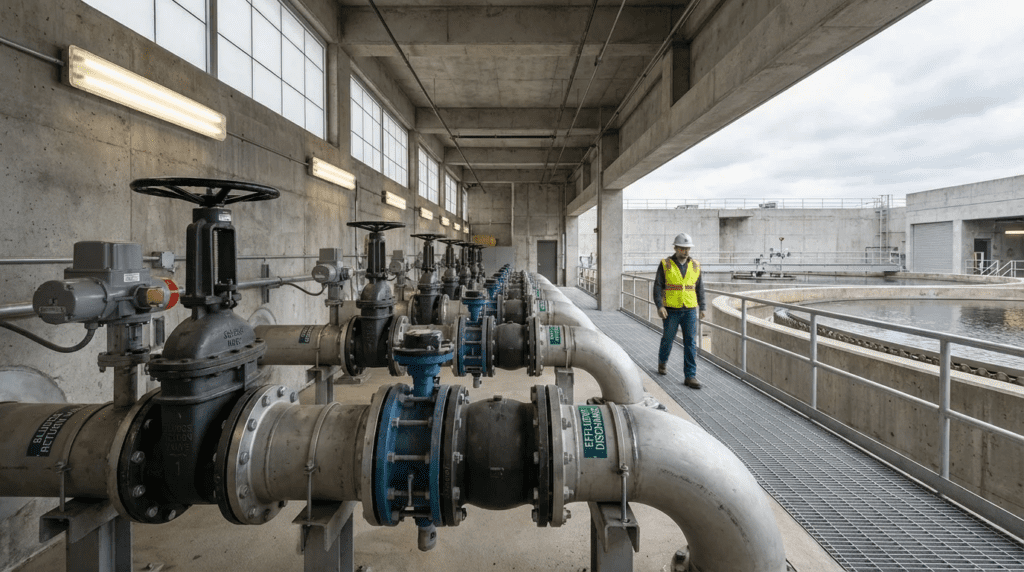

Introduction

Selecting the correct isolation and control components is one of the most consequential decisions in facility design. A comprehensive understanding of Wastewater Treatment Valves: Types Selection and Application Guide is essential for consulting engineers, plant managers, and utility directors managing capital improvement projects. Unlike potable water systems where fluid characteristics are relatively predictable, wastewater systems present a hostile environment defined by abrasive grit, stringy debris, aggressive hydrogen sulfide generation, and highly variable hydraulic loads.

A frequent and costly mistake in the industry is the specification of valves designed for clean water service in raw sewage or sludge applications. Engineers who default to standard resilient-seated gate valves or concentric butterfly valves in solids-heavy lines often face premature failures, chronic jamming, and expensive unscheduled maintenance. Wastewater valves must accommodate solids passage, resist corrosion from biogenic sulfide attack, and maintain reliable shutoff despite seat wear from abrasive particles.

This category encompasses a broad spectrum of technologies deployed across the entire treatment train, from headworks and primary clarification to secondary aeration, digester gas handling, and final effluent discharge. Proper valve selection dictates the plant’s operational reliability, safety, and lifecycle cost. It requires a detailed evaluation of the service fluid, required flow characteristics, actuation requirements, and long-term maintainability.

Every technology covered here belongs to the wider family of valves used across water and wastewater utilities, and the fundamentals of seat design, body material, and pressure class transfer directly. What changes in wastewater service is the failure mode. A valve in a clean water line generally fails from age, corrosion, or cycling fatigue; a valve in a sludge line fails because something lodged in it, because the seat abraded away, or because the stem seized in a vault nobody has opened in eight years. Specifying for wastewater means specifying against those outcomes rather than against a catalog pressure rating.

This guide provides a detailed engineering breakdown of the primary valve subcategories, application-specific selection criteria, and field-tested best practices for installation and maintenance in municipal and industrial wastewater environments.

Subcategory Landscape — Types, Technologies & Approaches

The wastewater valve landscape is segmented by mechanical operation and application specificity. Selecting the appropriate subcategory requires balancing the need for tight shutoff, minimal headloss, solids handling capability, and throttling precision. Below is a comprehensive analysis of the primary valve types utilized in modern treatment facilities.

Gate Valves for Wastewater

Gate Valves for Wastewater are primarily used for on/off isolation service in clean water, plant effluent, and utility water lines. They function by lowering a solid wedge or a resilient-seated gate perpendicular to the flow path. When fully open, they offer a straight-through, unobstructed flow path with negligible headloss. Resilient-seated gate valves conforming to AWWA C509 or C515 are standard for water lines up to 12 inches, offering a fully rubber-encapsulated wedge that provides drop-tight shutoff. However, in raw wastewater applications, standard gate valves are problematic. The valve body seat groove collects grit and debris, preventing full closure over time and leading to seat damage. They are best reserved for secondary water systems or applications where solids are absent.

Knife Gate Valves

Knife Gate Valves are specifically engineered for slurries, sludge, and high-solids applications. Unlike standard gate valves, they utilize a thin, sharp-edged blade that shears through the media as it closes. This design prevents solids buildup and allows for reliable shutoff in thick sludge lines where other valves would bind. Standard uni-directional knife gates rely on differential pressure to seal against a resilient seat, while bi-directional variants incorporate elastomeric sleeves for tighter sealing in both directions. Engineers typically specify these for digester sludge feed lines, thickener underflow, and biosolids pumping applications. Key considerations include the packing configuration to manage leakage and the need for adequate clearance to accommodate the blade travel below the valve body.

Plug Valves for Wastewater

Plug Valves for Wastewater, specifically eccentric plug valves, represent the industry workhorse for raw sewage and sludge isolation. The design features a quarter-turn plug that rotates out of the flow path, offering an unobstructed passage when open and a positive shutoff when closed. The eccentric camming action ensures that the plug lifts off the seat immediately upon opening, minimizing wear and reducing operating torque. Conforming to AWWA C517, these valves are ideal for grit-laden and stringy media because the rotating action wipes the seat clean during operation. They are extensively utilized in pump station suction and discharge lines, grit slurry piping, and sludge transfer applications. Detailed configuration options, port sizing, and orientation guidance are covered under plug valves, which is the standard reference for this valve family.

Ball Valves for Wastewater

Ball Valves for Wastewater provide excellent tight shutoff capabilities and rapid quarter-turn operation. Standard floating ball valves feature a spherical closure element with a bore, offering full-port or reduced-port flow characteristics. In wastewater treatment, they are predominantly used in chemical feed lines, instrumentation isolation, and smaller utility applications. For raw wastewater, standard ball valves are generally avoided because solids can accumulate in the body cavity behind the ball, causing jamming and operational failure. Specialized “sludge ball valves” or “full-port flushing ball valves” with cavity-filled seats are available for specific slurry applications, providing the tight shutoff of a ball valve without the debris trapping issues.

Butterfly Valves for Wastewater

Butterfly Valves for Wastewater offer a compact, lightweight solution for large-diameter isolation and modulating service. The design utilizes a rotating disc that sits in the flow stream even when fully open, resulting in slightly higher headloss compared to plug or gate valves. Rubber-seated butterfly valves conforming to AWWA C504 are ubiquitous in plant water, effluent, and aeration air piping. Their primary limitation in wastewater is the exposed disc, which collects rags and stringy debris, and the seat, which is vulnerable to abrasion in grit-bearing lines. Their advantages and limitations are worked through in more depth under butterfly valves, including where the headloss penalty matters and where it does not.

Check Valves for Wastewater

Check Valves for Wastewater prevent backflow in pump discharge lines, protecting equipment and preventing contamination of upstream processes. Swing check valves with outside lever and weight (or spring) assemblies are the traditional standard for wastewater, offering a full-port opening that allows solids to pass without obstruction. Ball check valves are frequently used in smaller sludge lines, where a rubber-coated ball rolls out of the flow path and returns to seat. Selection is driven principally by the need to minimize slam: a check valve that closes too slowly allows significant reverse flow before seating, generating a pressure surge that can damage the pump and the piping. Configuration options and closure dynamics are treated in detail under check valves.

Air Release and Vacuum Valves

Air Release and Vacuum Valves manage entrained gases in force mains and pipelines. Wastewater air valves differ significantly from potable water versions, featuring elongated bodies and backwash ports to prevent the accumulation of solids that would block the small orifice. Air release valves vent small pockets of gas accumulating at high points during normal operation, preventing air locks that restrict flow capacity. Air/vacuum valves handle large volumes during filling and draining, preventing pipeline collapse under vacuum conditions. Combination air valves incorporate both functions, and specification under AWWA C512 typically includes an isolation valve and a flushing arrangement so the unit can be cleared without taking the main out of service.

Pinch Valves for Wastewater

Pinch Valves for Wastewater utilize a flexible elastomeric sleeve that is mechanically or pneumatically compressed to shut off flow. Because the only wetted component is the sleeve, they offer exceptional abrasion resistance and complete isolation of the mechanism from the process fluid. This makes them highly effective for abrasive slurries, lime slurry feed, and grit handling. They also provide excellent throttling capability with a linear flow characteristic. The primary limitation is the sleeve itself, which is a consumable wear part with a finite life, and the relatively low pressure ratings compared to metal-seated alternatives.

Diaphragm Valves for Wastewater

Diaphragm Valves for Wastewater employ a flexible diaphragm pressed against a weir or a straight-through body to stop flow. Like pinch valves, they isolate the operating mechanism from the process fluid, making them well suited to corrosive chemical service. In treatment plants they appear most often in chemical feed systems handling sodium hypochlorite, ferric chloride, and polymer, where the absence of stem penetration into the fluid eliminates a leak path. The diaphragm is a consumable, and its elastomer must be matched to the specific chemical rather than selected generically.

Valve Actuation and Automation

Valve Actuation and Automation determines how a valve is operated and how it integrates with plant control. The three principal technologies each carry a distinct profile. Electric actuated valves are the municipal default, offering self-contained operation, precise position and torque control, modulating capability, and native integration with plant SCADA through discrete signals or digital protocols. Their limitations are cost, the need for power routing to every valve location, and fail-in-place behavior on power loss unless battery backup is specified.

Pneumatic actuated valves are preferred where rapid cycling, fail-safe spring return, or explosion-proof operation is required, and they dominate in facilities with existing instrument air infrastructure. The trade-off is the plant-wide cost of generating and drying compressed air, along with the maintenance burden of air preparation equipment and leak management. This subcategory covers a wide range of configurations, including piston, proportional, quick exhaust, shuttle, three-way, mixing, and diverter arrangements.

Hydraulic actuated valves deliver the highest thrust in the smallest package, making them the choice for very large valves and gates where electric or pneumatic actuation cannot generate sufficient force. The counterweight is system complexity, the requirement for a hydraulic power unit, and the environmental risk posed by fluid leaks into the process. In wastewater plants they appear most often on large sluice gates, digester valves, and specialty applications where nothing else will move the closure element.

Specialty and Ancillary Valves

Beyond the primary valve families, treatment plants rely on a set of specialized devices that rarely appear in general valve catalogs but are unavoidable in practice. Coverage of telescoping valves addresses the adjustable-elevation devices used to draw supernatant from digesters, clarifiers, and lagoons, where the operator needs to skim from a variable depth without disturbing the sludge blanket below. Their defining engineering problem is the sliding seal at the riser, which must remain tight through years of operation while permitting travel.

For channel and basin isolation, stop logs provide a low-cost alternative to a permanently installed gate, dropping into guides to dewater a channel for maintenance. They are inexpensive and simple, but they are a manual solution requiring lifting equipment and cannot throttle. Where more permanent channel isolation is needed, the sluice valve arrangement provides a seated closure operated from above the water surface, sharing much of its hardware with slide gates and mud valves.

Flow splitting between parallel process trains is handled by diverter valves, which redirect rather than isolate. Getting an even split between two clarifiers or two filters is harder than it appears, since small differences in downstream headloss will bias the flow, and a diverter arrangement without a means of trimming the split will not deliver the balanced loading the process design assumed. Finally, plant service water systems throughout a facility terminate in hose connections, where a bibcock valve provides the washdown tap. These sit outside the process train entirely but are worth specifying deliberately, since non-potable plant water taps must be distinguishable from potable ones and protected against cross-connection.

Selection & Specification Framework

Choosing the right valve requires a systematic evaluation of the service conditions, the required function, and the long-term operational context. Applying Wastewater Treatment Valves: Types Selection and Application Guide correctly begins with an honest characterization of what is actually flowing through the line.

Service Fluid and Solids Content

The first and most important branch in the decision tree is solids content. For raw wastewater, primary sludge, thickened sludge, grit slurry, and scum, the viable options narrow quickly to eccentric plug valves, knife gate valves, and pinch valves. For plant water, final effluent, and utility service, the full range of gate, butterfly, and ball valves opens up. For chemical feed, diaphragm and specialized ball valves dominate, with elastomer compatibility taking precedence over every other criterion.

Function: Isolation, Throttling, or Check

The second branch is function. Isolation valves are opened or closed and must provide reliable shutoff; quarter-turn plug and knife gate valves excel here. Throttling valves must provide stable, predictable flow control across their range; pinch valves and specially trimmed butterfly valves handle this, while gate valves throttle badly and suffer seat damage when held partially open. Check valves are a separate discipline governed by closure dynamics rather than shutoff tightness.

Vendor Evaluation

Once the valve type is settled, supplier selection becomes its own exercise. Head-to-head comparison of the top valve manufacturers serving water and wastewater surfaces the differences that catalog data hides: seat replacement methodology, actuator mounting standards, stem sealing arrangements, coating systems, wear part pricing, and the reach of the local service network. On public bid work the specification must name enough qualified suppliers to satisfy competitive procurement without admitting a product that cannot survive the service, which makes an accurate picture of who actually builds to wastewater duty more valuable than a generic performance clause.

Materials and Corrosion

Wastewater environments generate hydrogen sulfide, which oxidizes biologically into sulfuric acid on exposed surfaces above the waterline. Ductile iron bodies with fusion-bonded epoxy interior and exterior coatings are the municipal standard. Stainless steel fasteners and stems, generally 316 grade, are non-negotiable in buried or submerged service. Elastomers must be selected against the actual chemistry, not a generic listing, and in chloraminated or high-sulfide environments this frequently means moving away from standard EPDM or nitrile compounds.

Lifecycle Cost

A valve that costs twice as much and lasts four times as long is the cheaper valve, but the calculation is rarely that clean. The variables that dominate lifecycle cost in wastewater service are the frequency of seat replacement, whether that replacement requires removing the valve from the line, the availability of parts a decade after purchase, and whether the valve fails in a way that takes a process train out of service. Buried valves in vaults carry an additional hidden cost: the excavation or confined space entry required to reach them.

Comparison Tables

The following tables provide direct comparison across valve subcategories and map them to the specific service conditions found in treatment facilities.

Engineer & Operator Field Notes

The gap between a correct specification and a reliable installation is closed in the field. These notes address the practical realities of installing, commissioning, and maintaining valves in wastewater service.

Installation and Orientation

Valve orientation matters far more in wastewater than in clean water service. Eccentric plug valves should generally be installed with the seat on the upstream side and the plug rotating into the top of the pipe, so that solids do not accumulate in the seat pocket. Knife gate valves in horizontal lines should have the blade travelling downward where possible, and the space below the valve must be kept clear for the full stroke. Swing check valves require a straight run upstream and must be installed so the hinge pin is horizontal.

Common Specification Mistakes

• Specifying by pressure class alone. A 150-class rating says nothing about whether the valve will survive grit, rags, or sulfide attack. State the service fluid, solids content, and expected cycle frequency.
• Ignoring actuator sizing margin. Manufacturer torque figures assume a clean, new valve. Specify a safety factor over calculated operating torque to account for scale, debris, and seat aging.
• Omitting seat replacement methodology. Whether a seat can be replaced in line or requires removing the valve determines whether a seat change is a two-hour job or a two-day outage. This belongs in the specification, not the submittal.
• Using potable water air valves in force mains. Standard air valves plug almost immediately in wastewater service. Wastewater-configured bodies with backwash ports are a different product, not an option.
• Leaving buried valve access undefined. A valve in a vault requires confined space entry to service. Where it can be avoided by extending the stem to grade, that decision is worth far more than the hardware costs.

Operations and Maintenance

Wastewater valve maintenance divides into three recurring tasks. Packing and stem seals require periodic adjustment or replacement, and the interval is shorter on frequently cycled valves. Seats and closure elements wear at a rate governed almost entirely by solids content and cycle frequency, and their condition is best tracked through operating torque trends rather than inspection. Actuators require their own program, including lubrication, battery replacement where applicable, and periodic verification that torque and limit settings have not drifted.

Troubleshooting

• Symptom: Valve will not fully close. Debris lodged in the seat is the usual cause. Cycle the valve fully open to flush, then close again. Do not force it past the torque setting, which bends stems and damages seats.
• Symptom: Leakage past a closed valve. Seat wear, or on a torque-seated valve, a closing torque setting that no longer compresses an aged resilient seat. Increase the torque setting within safe limits before planning replacement.
• Symptom: Check valve slam. The valve is closing too slowly, allowing reverse flow to develop before seating. Adjust the lever and weight, or add a spring or dashpot. Recording the transient confirms whether the adjustment worked.
• Symptom: Operating torque climbing over successive operations. Scale on the stem, packing hardening, or solids consolidating against the closure element. Compare against the commissioning baseline to gauge severity and schedule service before the actuator reaches its limit.

Design Details & Standards

Defensible valve specifications reference published standards rather than manufacturer literature. The documents below govern most municipal wastewater applications.

Applicable Standards

AWWA C517 — Resilient-Seated Cast Iron Eccentric Plug Valves. The governing standard for the primary wastewater isolation valve.

AWWA C504 — Rubber-Seated Butterfly Valves. AWWA C509 and C515 cover resilient-seated gate valves.

AWWA C508 — Swing-Check Valves for Waterworks Service.

AWWA C512 — Air-Release, Air/Vacuum, and Combination Air Valves, including the wastewater configurations.

AWWA C540 and C542 — Power-Actuating Devices and Electric Motor Actuators for valves and slide gates.

AWWA C561 — Fabricated Stainless Steel Slide Gates, applicable to channel isolation arrangements.

MSS SP-81 — Stainless Steel, Bonnetless, Flanged Knife Gate Valves.

NSF/ANSI 61 and 372 — Required for any valve in potable or plant potable water service.

NFPA 820 — Fire Protection in Wastewater Treatment and Collection Facilities, governing electrical area classification for actuators in headworks, wet wells, and digester areas.

Specification Checklist

1. Service fluid, solids content, temperature range, and expected cycle frequency.
2. Function: isolation, throttling, check, or modulating control.
3. Valve type and governing AWWA or MSS standard.
4. Body, trim, stem, and fastener materials, with coating system specified inside and out.
5. Elastomer compound verified against the actual service chemistry.
6. Pressure class and shutoff direction, with bi-directional capability stated where required.
7. Actuation type, torque safety factor, and fail position on loss of power or air.
8. Control interface: discrete signals, position feedback, and network protocol where applicable.
9. Orientation requirements and installation clearances, including blade travel space for knife gates.
10. Seat replacement methodology and whether removal from the line is required.
11. Access provisions for buried or vault-mounted valves, including stem extension to grade.
12. Exercise and maintenance program requirements, with commissioning torque baseline recorded.

Frequently Asked Questions

What is the best valve for raw wastewater?

The eccentric plug valve is the industry standard for raw sewage and sludge isolation. Its quarter-turn plug rotates fully out of the flow path when open, and the camming action wipes the seat clean on each cycle, which is why it tolerates grit and stringy debris that would destroy a gate or butterfly valve. For thickened sludge and digester feed, the knife gate valve is generally preferred because its blade shears through heavy solids rather than trying to seat against them.

Why do gate valves fail in wastewater service?

Standard gate valves have a seat groove in the body that collects grit and debris every time the valve operates. Over time, that accumulation prevents the wedge from seating fully, which both destroys shutoff and damages the seat. Resilient-seated gate valves are excellent in clean water and utility service; they are simply the wrong tool for solids-bearing lines.

Should I specify electric, pneumatic, or hydraulic actuators?

Electric is the municipal default, offering self-contained operation, precise control, and straightforward SCADA integration. Pneumatic makes sense where fail-safe spring return is required, where rapid cycling is needed, or in classified areas where electrical equipment is problematic, provided reliable instrument air already exists. Hydraulic is reserved for applications requiring very high thrust in a compact package, typically large gates, and it brings a power unit and leak risk along with it.

How often should wastewater valves be exercised?

Quarterly full-stroke exercise is a reasonable baseline for isolation valves, with critical valves in pump stations exercised monthly. The point is not only to keep the mechanism free but to generate a torque or effort trend. A valve requiring noticeably more effort than it did six months ago is developing a problem, and that signal arrives long before the valve fails to operate.

What causes check valve slam and how is it prevented?

Slam occurs when a check valve closes after significant reverse flow has already developed, so the disc seats against a moving column of water and generates a pressure surge. Prevention involves speeding closure with a lever and weight or a spring, cushioning the final travel with a dashpot, or selecting a valve type with inherently faster dynamics such as a dual plate or nozzle check. Recording pressure at high frequency through a pump trip is the only reliable way to confirm the fix.

Do wastewater air valves differ from potable water air valves?

Substantially. Wastewater air valves use elongated bodies that keep the float and orifice well above the liquid surface, along with backwash ports and isolation valves that allow the unit to be flushed and cleared without draining the main. A potable water air valve installed on a force main will plug within weeks, at which point it stops venting and the pipeline loses capacity to air locking without anyone noticing.

Which valve types can be used for throttling?

Pinch valves offer the best throttling characteristic in abrasive service, with a roughly linear relationship between position and flow. Butterfly valves throttle acceptably in clean service with appropriate trim, though seat wear accelerates in grit-bearing lines. Plug valves can throttle over a limited range. Gate and knife gate valves should never be used for throttling, since partial opening concentrates flow through a narrow gap and wire-draws the seat within months.

Conclusion

Valve selection in wastewater treatment is an exercise in anticipating failure rather than meeting a nameplate rating. The fluid is abrasive, the atmosphere is corrosive, and the consequence of a seized or leaking valve is measured in process downtime rather than in the cost of the component. Engineers who characterize the service honestly, select the valve family suited to the solids content, and specify orientation, actuation margin, and maintenance access alongside the pressure class will deliver systems that operate reliably for decades.

The balance to strike is between capital cost and the accumulated cost of access, replacement, and unplanned outage across a twenty-year life. In a plant where reaching a valve requires draining a basin or entering a vault, the premium for a more durable product is repaid many times over by the outages it avoids.
