Chemical Feed Systems in Water Treatment: Design and Selection

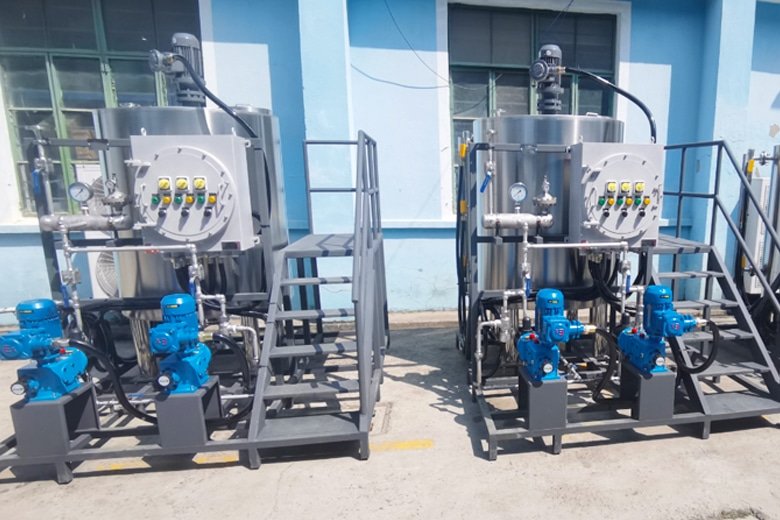

Two industrial stainless steel machines with blue pumps and control panels outside a blue building.

Introduction

Chemical dosing is the point where treatment design meets daily operation. A coagulant dose that is slightly wrong wastes chemical and degrades settling; a disinfectant dose that drifts low risks a permit violation, and one that drifts high generates byproducts. Across water and wastewater facilities, chemical purchase is routinely one of the largest operating line items after energy, and the difference between a well-run dosing program and a poorly run one is measured in tens of thousands of dollars a year at even a modest plant.

The practices that separate the two are not complicated, but they are easy to neglect. Accurate dose calculation, verified pump calibration, appropriate injection point selection, adequate mixing, and disciplined monitoring account for most of the gap. Each is inexpensive relative to the chemical it protects, and each tends to be the first thing abandoned when staffing is short.

These practices are applied through the hardware described under chemical feed systems, and the relationship runs both directions. A well-designed feed system makes good practice easy and bad practice difficult, while a poorly designed one defeats even a conscientious operator. This article addresses the operational side: what to do with the system once it is installed.

Getting the Dose Right

The Basic Calculation

Chemical feed rate in pounds per day follows directly from flow and dose:

Feed rate (lb/day) = Flow (MGD) × Dose (mg/L) × 8.34

The factor 8.34 is the weight of a gallon of water in pounds. For a liquid chemical, the volumetric feed rate then depends on the solution strength and specific gravity, which is where errors most commonly enter. A 12.5 percent sodium hypochlorite solution and a 10 percent solution require meaningfully different volumetric rates for the same delivered dose, and hypochlorite strength degrades in storage, so the value used in the calculation should reflect what is actually in the tank rather than what was on the delivery ticket.

Dose Versus Demand

Applied dose and effective dose are not the same thing. Part of every oxidant dose is consumed immediately by reduced species in the water, and part of every coagulant dose is consumed satisfying the charge demand of the colloidal material present. What remains is what produces the intended result. Because demand varies with source water quality, season, and upstream process performance, a dose that worked in April will not necessarily work in August. Fixed-dose operation is the single most common cause of both overfeeding and underfeeding.

Pump Calibration and Verification

A metering pump’s dial setting is a nominal value, not a measurement. Wear in the diaphragm or tubing, changes in discharge pressure, viscosity differences between chemicals, and off-gassing all shift actual output away from the setting. Calibration against a graduated column is the only reliable verification, and it should be performed on a defined schedule rather than only when something appears wrong.

The procedure is straightforward. Isolate the pump suction and draw from a calibration column of known volume. Run the pump for a timed interval at the setting in use. Calculate actual volumetric output and compare it against the expected rate. Repeat at several points across the operating range rather than at a single setting, because pump linearity is rarely as good as the catalog curve suggests, particularly below about 20 percent of stroke.

Record the results. A calibration log that shows output drifting steadily downward over successive checks is telling you the diaphragm or tubing is wearing, and it gives months of warning before a failure that would otherwise arrive without notice.

Injection Point and Mixing

Where chemical enters the process matters as much as how much of it enters. Three principles govern the choice.

First, the injection point must be located where mixing energy is available. Injecting coagulant into a quiescent zone produces local overdosing and bulk underdosing simultaneously. Rapid mix basins, static mixers, and turbulent pipe sections all provide the dispersion needed; a slow-moving channel does not.

Second, chemicals that react with each other must be separated. Injecting acid and caustic, or coagulant and polymer, at the same location produces localized reaction rather than the intended process effect. Adequate separation distance, and where necessary a defined sequence with mixing between steps, is part of the design.

Third, the injection quill should extend into the flow stream rather than terminating at the pipe wall. Wall injection concentrates chemical along the pipe surface, accelerating corrosion and delaying dispersion. A quill reaching toward the center of the pipe distributes the chemical into the bulk flow where the mixing energy is greatest.

Control Strategy

Three control approaches are in common use, and the right one depends on how quickly the governing variable moves.

Manual fixed dosing sets a rate and leaves it. It is appropriate only where flow and water quality are genuinely stable, which in practice is rare. Its failure mode is chronic overfeeding, since operators set the rate for worst-case conditions and leave it there.

Flow-paced dosing adjusts feed rate proportionally to measured flow, holding the applied dose constant. This handles hydraulic variation well and is the appropriate baseline for most applications. It does nothing about changes in water quality.

Compound-loop control paces against flow and trims against a measured residual or a water quality analyzer, such as a streaming current detector for coagulation or a free chlorine analyzer for disinfection. This handles both hydraulic and quality variation, and it is where the chemical savings are. The requirement is instrumentation that stays calibrated; an analyzer that has drifted will confidently drive the dose in the wrong direction.

Chemical-Specific Handling

Different chemicals impose different practical requirements, and a program built around one will not transfer cleanly to another.

Sodium hypochlorite off-gasses oxygen continuously and degrades with temperature, time, and light exposure. Feed systems need continuous degassing valves to prevent vapor lock, and stored strength should be verified rather than assumed. Storage above about 20 degrees Celsius accelerates decay substantially.
Ferric chloride and alum are corrosive and stain heavily. Materials must be verified across the full wetted path, and containment should account for the fact that a leak will be discovered by its appearance long before anyone hears it.
Polymer requires proper activation. Under-mixed polymer forms fisheyes that never dissolve; over-sheared polymer loses molecular weight and therefore effectiveness. Aging time between activation and use is a real parameter, not a convenience.
Lime slurry settles and scales. Feed lines require continuous velocity to stay clear, and a system idled without flushing will plug.
Acids and caustics demand safety infrastructure proportional to their hazard: secondary containment, eyewash and shower stations within the required travel distance, and materials verified for the specific concentration in use.

Monitoring and Record Keeping

A dosing program that is not measured cannot be improved. Three records carry most of the value.

Chemical usage per unit treated, expressed as pounds per million gallons, normalizes consumption against plant throughput and makes trends visible that raw monthly totals conceal. A rising figure at constant water quality indicates either a calibration problem or a developing process issue.

Tank inventory reconciliation compares calculated usage against actual level drop. A persistent discrepancy means the calculation, the calibration, or the level measurement is wrong, and finding out which is worth the hour it takes.

Residual or endpoint results, logged alongside dose, build the empirical relationship between applied dose and achieved result for the specific water. That relationship is what allows an operator to anticipate a seasonal change rather than react to it.

Common Failures

Vapor lock in hypochlorite feed. The pump runs, the dial reads normally, and no chemical moves. Degassing valves and a flooded suction arrangement prevent it.
Calibration never verified. The most common cause of a dose that has been wrong for months without anyone noticing.
Injection into a dead zone. Produces local overdose, bulk underdose, and accelerated corrosion at the injection point.
Analyzer drift driving automatic control. A compound loop is only as good as its measurement; an uncalibrated analyzer makes automation worse than manual operation.
Day tank sized without regard to chemical shelf life. Oversized day tanks mean chemical sits long enough to degrade, particularly with hypochlorite.
No accounting for solution strength. Dosing calculations built on nameplate concentration rather than delivered and aged concentration.

Conclusion

Good chemical dosing practice is unglamorous and consistently undervalued. The calculations are simple, the calibration procedure takes half an hour, and the record keeping fits on one page. What they collectively buy is a dose that is correct rather than approximately correct, and at the volumes a treatment plant consumes, that difference funds a great deal of other work.
