Graphene Oxide Membranes

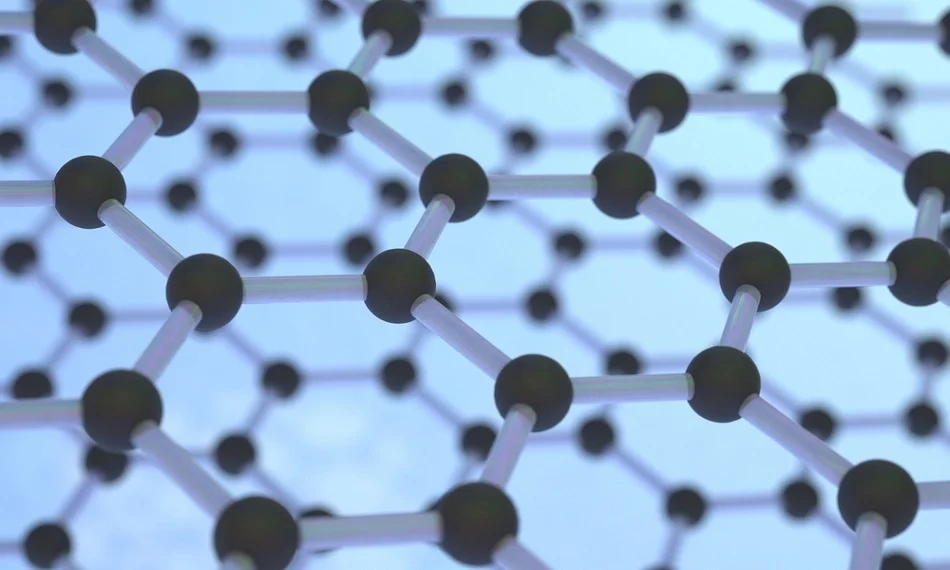

Graphene oxide membranes have garnered significant attention in recent years due to their unique properties and potential applications in various fields including water filtration, gas separation, and energy storage. Graphene oxide, a derivative of graphene, is a two-dimensional material composed of carbon, oxygen, and hydrogen atoms. Its structure consists of a single layer of carbon atoms arranged in a hexagonal lattice, with oxygen-containing functional groups attached to the edges and basal plane of the graphene sheet. As one of the most actively researched novel membrane platforms within the broader field of Advanced Membrane Technologies, graphene oxide membranes represent a potential paradigm shift from conventional polymeric and ceramic membranes — offering atomically thin selective layers with tunable interlayer spacing that can be engineered for specific ion rejection, molecular sieving, or gas separation targets.

Graphene oxide membranes are synthesized through the exfoliation of graphite oxide, a precursor material obtained by the oxidation of graphite flakes. The exfoliation process involves the intercalation of the graphite oxide layers with solvents or chemical agents, followed by the mechanical or chemical separation of individual graphene oxide sheets. The resulting membranes typically have a thickness on the order of a few nanometers, with a large surface area and high aspect ratio. One of the key advantages is their excellent mechanical strength and flexibility, attributed to the covalent bonding between the graphene sheets and the oxygen-containing functional groups. In addition, graphene oxide membranes exhibit high chemical stability and thermal conductivity, making them suitable for a wide range of applications.

Structure and Properties of Graphene Oxide Membranes

Atomic Structure and Interlayer Chemistry

The performance of graphene oxide membranes is governed primarily by two structural parameters: the interlayer spacing (d-spacing) between stacked graphene oxide sheets and the density and type of oxygen-containing functional groups decorating the basal plane and edges. The d-spacing, typically 0.7–1.2 nm in dry conditions and expanding to 1.0–1.5 nm when hydrated, determines which molecules and ions can transit the membrane — ions and molecules smaller than the effective channel diameter pass selectively while larger species are rejected. Functional groups including epoxide, hydroxyl, carboxyl, and carbonyl groups serve dual roles: they provide structural rigidity by creating hydrogen-bonding cross-links between adjacent sheets, and they impart surface charge and chemical selectivity that complement size-based exclusion with Donnan exclusion of charged species.

Mechanical, Chemical, and Thermal Properties

The Young’s modulus of individual graphene oxide sheets has been measured at 207–230 GPa — comparable to structural steel — providing exceptional mechanical robustness for an atomically thin material. This strength derives from the sp² carbon lattice of the graphene backbone, which retains most of its structural integrity even after oxidation. Chemical stability is high across a broad pH range (3–11) and against organic solvents, chlorine, and many industrial process chemicals that degrade conventional polymeric membranes rapidly. Thermal stability extends to approximately 200°C before significant functional group decomposition begins, though most water treatment applications operate well within this window. The electrical conductivity of graphene oxide is substantially lower than pristine graphene due to disruption of the conjugated sp² network by oxidation — but this can be partially restored by chemical or thermal reduction, enabling the production of reduced graphene oxide (rGO) membranes with tunable electrical properties for electrochemical applications.

Applications in Water Filtration and Desalination

One of the most promising applications of graphene oxide membranes is in water filtration and desalination. The high permeability and selectivity of graphene oxide membranes allow them to effectively remove water contaminants and salt ions from aqueous solutions, making them ideal for purifying drinking water and treating industrial wastewater. The large surface area enables efficient adsorption of organic pollutants and heavy metal ions, while the narrow interlayer spacing restricts the passage of larger molecules and ions.

In desalination applications, graphene oxide membranes offer a theoretical water permeance 2–3 orders of magnitude higher than conventional RO membranes at equivalent salt rejection — a consequence of the frictionless water transport through the atomically smooth graphene channel walls compared to the tortuous diffusive pathway through polymer chains in standard polyamide RO membranes. Laboratory demonstrations have achieved NaCl rejections above 97% at water fluxes of 10–100 L/m²/h/bar, compared to 1–10 L/m²/h/bar for commercial RO membranes. However, translating these laboratory results to stable long-term performance under realistic pressure-cycling, fouling, and chemical cleaning conditions remains an active research challenge.

Subtopic Overview: Novel Membrane Technologies

Graphene oxide membranes sit within a rapidly expanding family of novel membrane materials that are pushing beyond the performance limits of conventional polymeric and ceramic membranes. The subtopics below address the primary novel membrane technologies and membrane process variants covered in depth across this site — ranging from biomimetic protein channels to 2D material composites and bio-inspired surface architectures.

Leveraging Osmosis: Engineered Membrane Processes

Leveraging osmosis through engineered membrane processes — including forward osmosis (FO), pressure-retarded osmosis (PRO), and osmotically assisted reverse osmosis (OARO) — exploits the natural osmotic pressure gradient between solutions of different concentrations to drive water transport across semipermeable membranes without the high hydraulic pressures required by conventional RO. Forward osmosis has attracted particular interest for treating hypersaline brines and high-fouling feed streams where RO membranes would foul rapidly, because the low hydraulic pressure on the feed side dramatically reduces irreversible cake compaction and fouling. Pressure-retarded osmosis couples osmotic energy harvesting with water transport, generating electrical power from the salinity gradient between freshwater and seawater — a concept under development for osmotic power generation at estuaries and wastewater treatment plant effluent outfalls. Novel membrane materials including graphene oxide laminates, aquaporin composites, and thin-film nanocomposites are actively being evaluated as FO and PRO membrane candidates, as their higher water permeance would increase the osmotic power density and forward osmosis flux achievable at practical module designs. The draw solution reconcentration step — which determines the net energy balance of FO systems — remains the primary engineering challenge for deploying engineered osmosis processes at competitive cost versus direct RO.

Solar-Driven Membrane Distillation

Solar-driven membrane distillation couples photothermal nanomaterial absorbers — including graphene, carbon nanotubes, and plasmonic nanoparticles — with hydrophobic microporous membranes to drive water vapor transport using concentrated solar irradiation rather than conventional heat exchangers, enabling off-grid desalination with zero electrical energy input in high-solar-resource environments. In direct contact membrane distillation (DCMD), a hot saline feed contacts one face of a hydrophobic membrane while a cool permeate stream flows on the opposite side — the vapor pressure gradient drives water vapor through the membrane pores while the hydrophobic surface prevents liquid water and dissolved salts from passing, achieving theoretical salt rejection of 99.9%+ independent of feed TDS. Solar-driven variants eliminate the boiler or heat exchanger by incorporating light-absorbing nanomaterials directly into or onto the membrane surface, converting incident photons to heat at the membrane-water interface and creating a localized temperature gradient that drives vapor flux without heating the entire feed volume — a significant efficiency advantage over conventional MD configurations. Graphene oxide-based photothermal membranes are among the most studied configurations, as the broad-spectrum light absorption of graphene combined with the membrane’s hydrophilic-hydrophobic Janus architecture enables simultaneous light harvesting and selective vapor transport. Challenges remaining for commercialization include membrane wetting under long-term operation at high flux, scaling on the feed-side membrane surface, and maintaining stable photothermal conversion efficiency as nanomaterial dispersions age or aggregate under UV exposure.

Transmembrane Chemisorption

Transmembrane chemisorption is a hybrid separation mechanism in which contaminant molecules are both physically transported through a membrane and chemically bound to functional groups within the membrane matrix — combining the throughput advantages of membrane filtration with the high-affinity removal capabilities of adsorption resins in a single process step. Unlike conventional membrane rejection (which relies on size exclusion or charge repulsion) or packed-bed adsorption (which requires regeneration cycles and dedicated contact vessels), transmembrane chemisorption operates continuously as feed water flows through the membrane, with target contaminants — including heavy metals, arsenic, fluoride, pharmaceuticals, and endocrine-disrupting compounds — selectively captured by reactive functional groups grafted onto the membrane channels. Graphene oxide membranes are particularly well-suited as transmembrane chemisorption platforms because the oxygen-containing functional groups on the basal plane provide intrinsic binding sites for metal cations (via carboxyl and hydroxyl coordination), and additional selective ligands can be grafted to the graphene oxide surface through straightforward chemical functionalization reactions. Regeneration of chemisorptive membranes typically involves pH adjustment or competitive elution, restoring binding capacity without membrane replacement — a significant operational advantage over disposable adsorptive media. Research-scale demonstrations have achieved greater than 99% removal of lead, cadmium, and arsenic from spiked solutions using functionalized graphene oxide transmembrane chemisorption systems at surface loadings far exceeding conventional ion exchange resins per unit membrane area.

Aquaporin-Based Biomimetic Membranes

Aquaporin-based biomimetic membranes incorporate biological water channel proteins — aquaporins — into synthetic membrane matrices to replicate the extraordinarily efficient water transport mechanism that living cells use to regulate water flux across their membranes, achieving water permeabilities orders of magnitude higher than conventional polymeric membranes while maintaining near-perfect solute rejection. Aquaporins are transmembrane protein channels that allow water molecules to pass in single file through a 0.3 nm pore — smaller than any hydrated ion — at rates of approximately 3 billion water molecules per second per channel, driven by the osmotic pressure gradient. Commercial aquaporin membrane products are now available for pilot-scale RO and FO applications, with water permeance values of 3–8 L/m²/h/bar compared to 1–3 L/m²/h/bar for standard RO membranes, at equivalent NaCl rejection above 99%. The primary engineering challenges are protein stability under the pressure, temperature, and chemical conditions of industrial water treatment, the cost of recombinant protein production at scale, and the durability of the lipid bilayer or polymer matrix that supports the aquaporin channels within a mechanically robust thin-film composite structure. Hybrid approaches incorporating aquaporin-functionalized graphene oxide as the support matrix are under investigation, combining graphene’s mechanical strength with aquaporin’s biological water permeance.

Superhydrophobic Membrane Distillation

Superhydrophobic membrane distillation applies hierarchical surface engineering — combining microscale roughness with nanoscale hydrophobic coatings — to create membrane surfaces with water contact angles exceeding 150° and near-zero contact angle hysteresis, dramatically extending resistance to membrane wetting and enabling stable long-term operation at higher vapor fluxes than conventional hydrophobic PTFE or PVDF membrane distillation systems. The Cassie-Baxter wetting state, in which water droplets rest on air pockets trapped within the hierarchical surface features rather than penetrating the pore structure, is the key enabling phenomenon — it maintains the liquid-vapor interface at the membrane surface rather than allowing liquid water to infiltrate and collapse the vapor pressure gradient that drives distillation. Fabrication approaches for superhydrophobic MD membranes include electrospinning of fluoropolymer nanofibers, atomic layer deposition of silica or titania coatings, chemical vapor deposition of fluorocarbon layers, and grafting of low-surface-energy nanoparticles including graphene-based materials to existing membrane substrates. Superhydrophobic membranes show particular promise for treating produced water, concentrated RO brines, and other scaling-prone feeds where conventional hydrophobic membranes wet within hours of operation — the air cushion provided by the Cassie-Baxter state resists the capillary penetration that causes wetting even when surface active agents or low-surface-tension solvents are present in the feed.

Xero-Printed Graphene Membranes

Xero-printed graphene membranes are produced using xerographic (dry printing) deposition processes adapted from commercial laser printing technology to deposit graphene oxide or reduced graphene oxide flakes onto substrate surfaces with controlled thickness, porosity, and lateral uniformity — enabling roll-to-roll fabrication of graphene membrane layers at speeds and scales that vacuum filtration and solution-casting methods cannot match. The xeroprinting approach applies a charged graphene oxide toner to a photoconductor drum using electrostatic attraction, then transfers and fuses the graphene layer to a substrate membrane using heat and pressure — analogous to the laser printing process used to apply carbon toner to paper, but engineered for nanomaterial deposition with controlled layer thickness. Precise control of toner particle size, charge density, and fusing parameters enables tunable graphene layer thickness from single monolayers to multilayer stacks without the thickness uniformity challenges that plague hand-cast and vacuum-filtered graphene oxide membranes at large format. This fabrication approach represents a significant step toward the cost-competitive production of graphene membranes at industrial scale, as it leverages mature printing equipment infrastructure rather than requiring custom deposition systems. Early demonstrations have produced graphene oxide membranes with water permeance and dye rejection performance comparable to solution-cast equivalents at deposition speeds compatible with high-volume manufacturing.

Two-Dimensional Material-Based Membranes

Two-dimensional material-based membranes extend the graphene oxide concept to a growing family of atomically thin 2D materials — including MoS₂, h-BN, MXenes, and covalent organic frameworks (COFs) — each offering distinct combinations of pore geometry, surface chemistry, and transport selectivity that address the specific limitations of graphene oxide for particular separation applications. Molybdenum disulfide (MoS₂) nanosheets have demonstrated higher water permeance than graphene oxide in molecular dynamics simulations due to their smoother, more hydrophilic pore channels, with experimental membranes showing 2–5× higher flux at equivalent rejection for monovalent salt solutions. MXenes — two-dimensional transition metal carbides and nitrides with the general formula M₂XT× — offer tunable surface terminations (OH, F, O) that can be engineered for ion selectivity, combined with the metallic electrical conductivity that enables electrochemically active membrane processes including electrically switched ion rejection and in-situ electrochemical regeneration of fouled surfaces. Covalent organic frameworks provide atomically precise pore geometries with sub-nanometer diameter control, enabling the selective sieving of ions by size with a precision that graphene oxide’s variable interlayer spacing cannot consistently achieve. The primary challenge for all 2D material membranes beyond graphene oxide is the cost and scalability of flake production — while graphene oxide is now available in multi-kilogram quantities from multiple commercial suppliers, MoS₂, h-BN, and MXene production at equivalent scale and purity remains a research-stage capability.

Velcro-Inspired Membrane Separation

Velcro-inspired membrane separation applies the mechanical interlocking principle of hook-and-loop fasteners to membrane surface engineering — creating complementary micro- and nanoscale surface features on the membrane and on target particles or foulants that enable selective capture, controlled release, and reversible fouling management without chemical cleaning agents. The biomimetic design draws on the observation that biological systems achieve highly selective, reversible binding through geometry-matched surface structures rather than irreversible chemical bonds — applying this principle to water treatment membranes addresses the fundamental limitation of conventional membrane fouling, where foulant adhesion is driven by thermodynamically favorable but geometrically non-selective surface interactions. In practice, Velcro-inspired membrane surfaces are fabricated by creating arrays of micro-hooks or structured surface features through lithographic patterning, electrospinning, or template-directed self-assembly — the hook geometry can be designed to preferentially capture particles within a specific size range while rejecting smaller particles that pass between the hooks and larger particles that cannot engage the interlocking geometry. Release of captured particles is achieved by applying a controlled shear force, acoustic vibration, or pneumatic backpulse that exceeds the hook-loop engagement force threshold without requiring the chemical solvation energy needed to desorb conventionally fouled membrane surfaces. Research applications have demonstrated selective capture of microplastics, bacteria, and colloidal aggregates from model feed streams using Velcro-inspired PVDF and graphene oxide composite membrane surfaces with recovery efficiencies above 90% over multiple capture-release cycles.

Advancements in Membrane Technology for Wastewater Treatment

Advancements in membrane technology for wastewater treatment span the full spectrum from materials innovation — graphene oxide, aquaporins, MXenes — to system-level engineering improvements in module design, fouling control, and energy recovery that are pushing the performance and economics of membrane-based water treatment toward new benchmarks. At the process level, the integration of membrane processes with electrochemical systems — electrocoagulation upstream of MF/UF, electrochemical oxidation for membrane fouling control, and electrodialysis reversal for dissolved solids management — is creating hybrid treatment trains that achieve contaminant removal targets unattainable by membrane filtration alone. Advanced anti-fouling surface modifications — including zwitterionic polymer brushes, graphene oxide nanocomposite coatings, and silver nanoparticle biocidal layers — are extending membrane cleaning intervals from months to years in some municipal and industrial applications. Digital monitoring advances, including inline Raman spectroscopy for real-time membrane integrity verification and machine learning-based predictive fouling models, are enabling proactive membrane management strategies that reduce unplanned downtime and extend module replacement intervals. The convergence of novel materials, process integration, and digital optimization is accelerating the transition of advanced membrane technologies from laboratory curiosity to industrial deployment.

Membrane Wastewater Treatment

Membrane wastewater treatment encompasses the full range of configurations in which membranes serve as the primary separation barrier in a wastewater treatment train — from submerged MBRs replacing secondary clarification to high-pressure RO for tertiary polishing and water reuse — with membrane selection, module design, and fouling control strategy jointly determining the system’s performance and lifecycle cost. Membrane bioreactors (MBRs) have become the dominant configuration for new municipal wastewater plant construction where space is constrained or reuse-quality effluent is required, consistently achieving TSS below 1 mg/L and turbidity below 0.2 NTU from a single combined biological and filtration step. Novel membrane materials including graphene oxide nanocomposite coatings on standard PVDF MBR membranes have demonstrated 30–50% reduction in transmembrane pressure development rate in pilot-scale MBR tests, suggesting that nanomaterial modification of commercial modules could extend cleaning intervals and reduce energy consumption without requiring complete membrane replacement. For industrial wastewater streams with high dissolved solids, the membrane treatment train typically sequences MF or UF for suspended solids removal, followed by NF or RO for dissolved salt rejection, followed by advanced oxidation or activated carbon polishing for trace organics — each step removing contaminants that would foul or damage the downstream membrane while progressively concentrating the reject stream for disposal or ZLD processing.

Membrane for Wastewater Treatment: Selection and Specification

Membrane for wastewater treatment selection requires systematic evaluation of the wastewater’s physical, chemical, and biological characteristics against the performance specifications, operating requirements, and lifecycle costs of candidate membrane types — a decision framework that extends from fundamental materials compatibility through pilot testing to full-scale procurement and contract specification. The selection sequence begins with effluent quality targets (TSS, turbidity, BOD, pathogens, TDS, specific trace contaminants) that define the minimum membrane rejection performance required, then maps these targets to candidate membrane types — MF/UF for suspended solids and pathogen removal, NF for divalent ions and large organics, RO for dissolved salts and trace organics. Novel membrane materials including graphene oxide, aquaporin composites, and 2D material laminates are currently positioned as premium-performance options for applications where conventional polymeric membranes cannot achieve the required flux-rejection combination, or where chemical compatibility with aggressive cleaning regimes makes polymer degradation a lifetime concern. Pilot testing at a minimum 3-month duration using actual site wastewater — not synthetic feed — is the standard prerequisite for membrane specification in permitted facilities, as fouling behavior, cleaning chemical compatibility, and long-term flux stability cannot be reliably predicted from laboratory data or vendor-supplied performance curves based on clean water.

Gas Separation Applications

In gas separation applications, graphene oxide membranes have shown great potential for separating different gases based on their size and chemical properties. The ultrathin nature of graphene oxide membranes allows for rapid diffusion of gas molecules through the porous structure, while the functional groups on the graphene sheets can selectively interact with specific gas molecules. This enables the separation of gas mixtures with high efficiency and selectivity, making graphene oxide membranes a promising candidate for gas separation in industries such as natural gas purification, hydrogen production, and carbon capture.

The H₂/CO₂ selectivity of graphene oxide membranes has been measured at 3,400 in laboratory conditions — far exceeding the performance of conventional polymeric gas separation membranes — because the kinetic diameter of H₂ (0.289 nm) is smaller than the GO interlayer spacing while CO₂ (0.330 nm) is largely rejected. CO₂/N₂ separation relevant to post-combustion carbon capture has also been demonstrated, with GO membranes showing selectivity driven by the preferential adsorption of CO₂ on the oxygen-functional groups combined with size-based sieving.

Energy Storage Applications

Graphene oxide membranes also hold promise for energy storage applications, particularly in the development of high-performance supercapacitors and batteries. The large surface area and high electrical conductivity of graphene oxide membranes facilitate the rapid charge and discharge of ions, leading to improved energy storage capacity and cycling stability. The functional groups on the graphene sheets can enhance the adsorption of electrolyte ions, further enhancing the performance of graphene oxide-based energy storage devices.

Comparison of Novel Membrane Technologies

Challenges and Future Development

Despite the numerous advantages of graphene oxide membranes, there are still challenges that need to be addressed to fully realize their potential. One of the main challenges is the scalability of graphene oxide membrane production — current synthesis methods are often time-consuming and costly. Efforts are being made to develop scalable and cost-effective methods for producing large-scale graphene oxide membranes, such as spray coating, chemical vapor deposition, xero-printing, and interfacial assembly techniques.

Another challenge is the stability of graphene oxide membranes under practical operating conditions. The presence of defects, impurities, and structural imperfections can compromise performance and durability over time. Additionally, graphene oxide membranes swell significantly when hydrated — the d-spacing expanding from ~0.7 nm dry to ~1.2 nm wet — which reduces ion rejection selectivity and can cause mechanical delamination of the laminate structure under repeated wet-dry cycling. Researchers are exploring cross-linking the graphene oxide sheets using borate, glutaraldehyde, or divalent cation agents to constrain swelling while maintaining high water permeance.

For context on the materials science underpinning novel membrane development, Advanced Membrane Materials covers the broader landscape of next-generation filtration materials including polymer nanocomposites, metal-organic frameworks, and ceramic nanomaterials. Fabrication Methods addresses the manufacturing techniques — from phase inversion to electrospinning and atomic layer deposition — that translate novel membrane materials from laboratory synthesis to module-scale production. Nano-engineered membranes covers the broader class of membranes incorporating nanomaterials — including carbon nanotubes, zeolites, and metal oxide nanoparticles — in which graphene oxide composites sit as the most prominent current research focus.

Field Notes: Practical Guidance for Novel Membrane Evaluation

Laboratory-to-Pilot Transition Considerations

The gap between laboratory membrane performance and pilot-scale results is consistently larger for novel membranes than for conventional polymeric types, because laboratory tests typically use pristine flat-sheet coupons in idealized crossflow cells with synthetic single-salt feeds — conditions that systematically overestimate flux, rejection, and fouling resistance relative to spiral-wound or hollow-fiber modules operating on real wastewater. For graphene oxide membranes specifically, coupon-scale water permeance values reported in literature (often 10–100 L/m²/h/bar) have rarely been reproduced at module scale, where the support layer hydraulic resistance, module dead volume, and non-uniform flow distribution collectively reduce effective permeance to 2–10 L/m²/h/bar in current prototype configurations. Pilot evaluation protocols for novel membranes should include a minimum 30-day continuous operation period on actual target feed water before any performance data is used for full-scale design — and fouling rate, cleaning frequency, and post-cleaning flux recovery should all be specified as acceptance criteria, not just clean-water permeance and synthetic feed rejection.

Common Evaluation and Specification Mistakes

The most common mistake in novel membrane evaluation is accepting vendor-supplied performance data from laboratory coupon tests as the basis for full-scale design without independent pilot verification. For established RO membranes, manufacturer performance curves are reliable because the technology is mature and extensively validated — for graphene oxide and other novel membranes, the same assumption cannot be made, and independent pilot data on the actual feed stream is the only reliable design basis. A second common error is focusing exclusively on water permeance and salt rejection while neglecting chemical stability testing against the cleaning agents the membrane will encounter in service — graphene oxide laminates are sensitive to strong caustic cleaning (pH above 12) and high-concentration oxidizing agents, which are standard for biofouling control in RO systems and can cause irreversible d-spacing collapse or delamination if applied to GO membranes without prior compatibility testing.
