Membrane Fabrication Methods: Manufacturing Techniques for Water Treatment

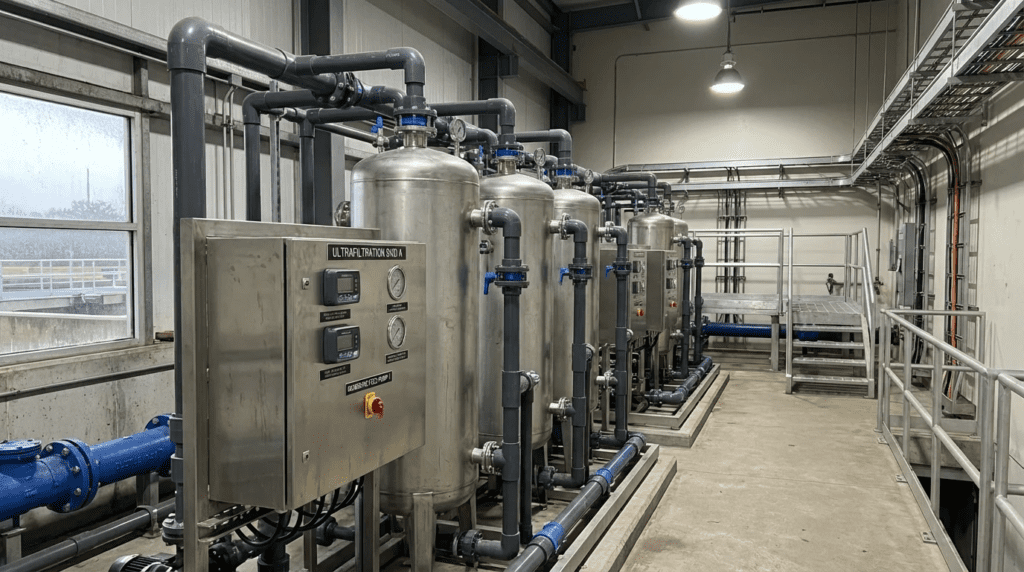

Introduction

One of the most frequent critical specification mistakes in modern water and wastewater engineering is treating a membrane module as a commoditized “black box.” An engineer might specify an ultrafiltration (UF) system based solely on pore size and nominal flux, only to experience catastrophic fiber breakage during rigorous air scouring or rapid permeability decline due to irreversible fouling. The root cause of these failures rarely lies in the macro-system design; it is fundamentally tied to the Membrane Fabrication Methods: Manufacturing Techniques for Water Treatment. Understanding how a membrane is synthesized—at the molecular and microstructural level—is what ultimately dictates its mechanical strength, chemical tolerance, surface charge, and lifecycle cost.

Fabrication is the layer beneath material selection. Within the broader field of advanced membrane technologies in water treatment, a datasheet names the polymer and the rating but rarely the process that produced the structure — and two membranes described identically as “PVDF ultrafiltration, 0.03 micron” can differ by a factor of three in tensile strength depending on whether they were made by thermal or nonsolvent phase separation. That difference does not appear in the specification until a fiber breaks.

The field of Membrane Fabrication Methods: Manufacturing Techniques for Water Treatment encompasses a broad spectrum of polymer chemistry, materials science, and advanced manufacturing processes. From the delicate chemistry used to create the dense rejecting layer in reverse osmosis (RO) membranes, to the high-temperature kilns used to fuse silicon carbide for heavy industrial wastewater, the manufacturing technique directly defines the operational boundaries of the end product.

This pillar page provides a comprehensive, engineer-focused breakdown of the manufacturing technologies utilized to produce modern water treatment membranes. We will explore the major fabrication subtypes, explain how these microscopic manufacturing choices impact macroscopic plant operations, and provide a framework for specifying the right membrane technology based on its intrinsic structural origins. Whether you are designing a municipal desalination plant, a high-strength industrial membrane bioreactor (MBR), or a residential point-of-entry system, understanding the fabrication method is the key to predicting real-world performance.

Subcategory Landscape — Types, Technologies & Approaches

The manufacturing landscape for water treatment membranes is generally divided by the base material (polymeric vs. inorganic) and the desired membrane morphology (symmetric vs. asymmetric). Engineers must navigate these options by understanding that each fabrication method produces a specific pore architecture, dictates the membrane’s structural integrity, and sets strict limits on chemical cleaning regimens. The following subcategories represent the fundamental pillars of membrane manufacturing.

Nonsolvent Induced Phase Separation (NIPS)

Nonsolvent Induced Phase Separation (NIPS)—also known as immersion precipitation—is the most widely used technique for manufacturing polymeric ultrafiltration (UF) and microfiltration (MF) membranes. In this process, a homogeneous polymer solution (the “dope”) is cast onto a support or extruded as a hollow fiber, and then submerged in a coagulation bath containing a non-solvent (typically water). The rapid exchange between the solvent in the dope and the non-solvent in the bath causes the polymer to precipitate, forming a highly asymmetric structure with a dense, thin “skin” layer on top of a porous, sponge-like or finger-like macro-void substructure.

This method is typically used to manufacture polysulfone (PSf), polyethersulfone (PES), and basic polyvinylidene fluoride (PVDF) membranes used in municipal drinking water plants, pretreatment for RO, and low-stress MBRs. The key advantage of NIPS is its high tunability; by altering dope composition, solvent type, and bath temperature, manufacturers can tightly control the pore size. However, the presence of macro-voids (finger-like structures) severely limits the mechanical strength of NIPS membranes, making them susceptible to fiber breakage under high transmembrane pressures or aggressive air scouring. Engineers specifying NIPS modules must typically design for lower backwash pressures (often capped at 1.5 to 2.0 bar) and strictly control transmembrane pressure (TMP) spikes.

Thermally Induced Phase Separation (TIPS)

Thermally Induced Phase Separation (TIPS) is a robust fabrication method primarily used to produce highly durable semi-crystalline polymeric membranes, most notably high-strength PVDF and polypropylene (PP). Unlike NIPS, which relies on chemical exchange, TIPS relies on thermal energy. The polymer is dissolved in a latent solvent at elevated temperatures (near the polymer’s melting point) and then extruded. As the extruded material cools rapidly, the polymer and solvent separate into two phases, followed by the extraction of the solvent to reveal a highly uniform, sponge-like porous network.

Because TIPS eliminates the large, weak “finger-like” macro-voids common in NIPS, the resulting membranes exhibit exceptionally high tensile strength and elongation at break. This makes them the premium choice for harsh industrial wastewater, high-solids MBRs, and applications requiring aggressive, high-pressure backwashing and severe chemical cleaning. While TIPS membranes typically command a higher capital cost (CAPEX) and often yield slightly lower clean-water permeability compared to NIPS, their lifecycle cost is frequently lower in abusive environments due to extended membrane lifespan and massive reductions in fiber breakage. For heavy industrial MBRs, tensile strength requirements often exceed 5-10 N/fiber, virtually mandating a TIPS-manufactured PVDF.

Interfacial Polymerization (IP)

Interfacial Polymerization (IP) is the critical manufacturing technique used to create Thin-Film Composite (TFC) membranes, which are the absolute standard for reverse osmosis (RO) and nanofiltration (NF) globally. The process involves a highly controlled chemical reaction occurring at the interface of two immiscible liquids. A microporous support membrane (usually a PES or PSf membrane made via NIPS) is soaked in an aqueous amine solution (like m-phenylenediamine, MPD). It is then contacted with an organic solvent containing a cross-linking agent (like trimesoyl chloride, TMC). The reaction occurs instantly at the liquid-liquid boundary, polymerizing a dense, ultra-thin (0.1 to 0.2 microns) polyamide layer on top of the support.

This technique is used almost exclusively for seawater desalination, brackish water treatment, and high-purity industrial water reclamation. The primary advantage of IP is that it allows manufacturers to optimize the support layer for mechanical strength and the ultra-thin top layer specifically for high water flux and high salt rejection (frequently >99.5% NaCl rejection). The critical limitation, however, is the polyamide layer’s extreme vulnerability to oxidizing agents. Engineers must design rigorous pretreatment systems ensuring absolutely zero free chlorine reaches the membrane, as even fractional parts-per-million (ppm) levels will rapidly degrade the thin film, causing irreversible loss of rejection capability.

Hollow Fiber Spinning

While phase inversion dictates the microscopic pore formation, Hollow Fiber Spinning is the macroscopic extrusion technique used to form the physical geometry of most UF/MF and MBR membranes. The polymer dope is forced through a highly specialized annular spinneret (a nozzle with a tube-in-tube design). Simultaneously, a bore fluid (bore liquid) is pumped through the inner tube to maintain the hollow cylindrical shape of the fiber as it extrudes. The process can be executed as “wet spinning” (direct immersion into a coagulation bath) or “dry-jet wet spinning” (passing through an air gap before immersion, allowing for surface phase changes before bulk coagulation).

Hollow fiber spinning provides the highest packing density (membrane surface area per unit volume) of any module configuration, making it the dominant form factor for large-scale municipal UF plants and MBRs. Controlling the spinning parameters—such as the extrusion rate, air gap distance, and bore fluid composition—is critical for defining the inner and outer skin layers of the fiber. Engineers must pay close attention to fiber dimensions specified from this process; typical outer diameters range from 0.5 mm to 2.5 mm. Thinner fibers offer higher surface area but are more prone to clogging (sludging) in high-suspended-solids applications, requiring careful module selection based on feedwater characteristics.

Ceramic Extrusion and Sintering

Moving away from polymers, Ceramic Extrusion and Sintering is the manufacturing process used to create inorganic membranes. A paste composed of ceramic precursors (like aluminum oxide, titanium dioxide, or silicon carbide), binders, and water is extruded into monolithic multi-channel geometries. These “green” bodies are then dried and fired in high-temperature kilns (often exceeding 1,200°C to 2,000°C) to burn off the binders and fuse the ceramic particles together, creating a rigid, highly porous support structure. Successive thinner layers of finer ceramic particles are then wash-coated and sintered onto the support channels to create the final microfiltration or ultrafiltration separation layer.

This process yields membranes with unmatched mechanical robustness, extreme thermal tolerance (capable of handling steam sterilization), and absolute chemical resistance (tolerating pH 0 to 14 and aggressive organic solvents). They are deployed in the most challenging applications: oil and gas produced water, metal finishing wastewater, and high-temperature food/beverage processing. While their capital cost can be 3 to 5 times higher than polymeric membranes, their operational lifespan can exceed 15-20 years, compared to 5-7 years for polymers. The high weight and rigid nature require specialized stainless-steel housing and vibration-isolated piping designs.

Track Etching

Track Etching is a highly specialized manufacturing technique used to produce precise, analytical-grade microfiltration membranes, typically from polycarbonate (PC) or polyethylene terephthalate (PET) films. The process involves bombarding a thin polymer film with heavy ions (from a cyclotron or nuclear reactor), which creates linear tracks of damaged polymer chains straight through the film. The film is then passed through an aggressive chemical etching bath (usually strongly alkaline). The etchant preferentially attacks the damaged tracks, dissolving them out to form perfectly cylindrical, identical pores.

Because of their perfect pore geometry and exact pore size distributions, track-etched membranes are primarily used in laboratory filtration, sterile venting, and precise diagnostic applications rather than bulk municipal water treatment. Their key advantage is absolute retention at the specified micron rating with zero depth-filtration effects. However, the limitation of this process is extremely low overall porosity (typically only 5% to 15% open area), resulting in very low hydraulic permeability compared to phase-inversion membranes. They are strictly utilized for low-volume, high-value filtrations where absolute size exclusion is mandatory.

Electrospinning

Electrospinning is an emerging, advanced fabrication method used to create nanofiber non-woven membranes. A high-voltage electric field is applied to a droplet of polymer solution at the tip of a syringe. When the electrostatic repulsion counteracts the surface tension, a liquid jet erupts (the Taylor cone), whipping through the air. As the solvent evaporates, ultra-fine solid polymer nanofibers (ranging from tens to hundreds of nanometers in diameter) are deposited on a grounded collector, creating an interconnected, highly porous web.

Electrospun membranes boast exceptionally high porosity (up to 80-90%) and interconnectivity, translating to massively high water flux at low transmembrane pressures. Currently, this technique is seeing active adoption in Membrane Distillation (MD), specialized air filtration, and as high-flux support scaffolds for composite membranes. Their main limitation in traditional water treatment has been relatively low mechanical strength and broad pore size distributions, but recent advancements in thermal pressing and cross-linking are beginning to commercialize electrospun membranes for specialized industrial wastewater polishing.

A related assembly route deposits two-dimensional sheets into stacked laminates rather than spinning fibers. The structures behind graphene oxide membranes are built by vacuum filtration, spray, or blade casting of nanosheet suspensions, where the separation channel is the interlayer gap between sheets rather than a pore through a solid. Fabrication control therefore means controlling stacking order and cross-link density, since those set the gap that does the separating.

Polymer Stretching (Film Extrusion)

Polymer Stretching (Film Extrusion) is the thermo-mechanical process primarily used to manufacture polytetrafluoroethylene (PTFE) and certain stretched polyethylene membranes. A polymer resin is mixed with a lubricant, extruded into a tape or film, and then aggressively stretched (uniaxially or biaxially) at elevated temperatures. This stretching forces the polymer nodes to pull apart, creating a microscopic web-like network of fibrils separated by void spaces (pores).

PTFE membranes produced this way are highly valued for their extreme hydrophobicity, zero-leachate characteristics, and near-universal chemical resistance. In water treatment, they are frequently utilized for membrane contactors (gas transfer membranes for deoxygenation or ammonia removal) and high-end industrial microfiltration. While they offer superior chemical durability compared to PVDF or PES, raw PTFE is intrinsically hydrophobic; if used for aqueous filtration, it either requires specialized hydrophilic surface treatments or must operate at high initial intrusion pressures to force water into the pores.

Surface Coating and Grafting

Rather than forming the bulk membrane, Surface Coating and Grafting are secondary manufacturing processes applied to fundamentally alter the surface chemistry of a pre-fabricated membrane. Coating involves applying an ultra-thin layer of hydrophilic polymer (like polyvinyl alcohol, PVA) via dip-coating or spin-coating. Grafting utilizes UV radiation, plasma treatment, or chemical initiators to covalently bond functional monomer chains directly onto the membrane surface.

These techniques are absolutely essential for mitigating membrane fouling, particularly in high-organic wastewater or oily water treatment. By applying surface modification, manufacturers can transform a hydrophobic, fouling-prone PVDF membrane into a highly hydrophilic surface that resists the adsorption of proteins, oils, and natural organic matter (NOM). When specifying membranes for highly fouling environments, engineers must inquire about the stability of these surface treatments, as poorly bonded coatings can wash away over repeated chemical cleaning cycles, leading to sudden, permanent losses in permeability.

Deposition and Synthesis Techniques in Depth

Three techniques warrant treatment beyond the overview above, because each governs a boundary that determines whether a membrane performs as designed: the atomic-scale control of surface chemistry, the scalable deposition of functional coatings, and the reaction that forms every commercial RO membrane in service. What these methods produce as finished materials is covered separately in the guidance on advanced membrane materials.

Atomic Layer Deposition

Detailed coverage of atomic layer deposition for membrane modification addresses the only technique on this list that builds a coating one atomic layer at a time. ALD works by alternating self-limiting surface reactions: a precursor gas saturates the surface and stops, the chamber is purged, a second reactant completes the layer, and the cycle repeats. Because each half-reaction terminates when the surface is covered, thickness is set by cycle count rather than by exposure time or concentration — which is what makes sub-nanometer control achievable in practice rather than merely in principle.

For membranes, this enables two things conventional coating cannot. Pore size can be tuned downward in controlled increments, converting a UF membrane toward NF rejection without remaking it. And conformal coverage extends into the pore interior rather than bridging across the mouth, so a hydrophilic or catalytic functionality reaches the surfaces that actually contact the feed. The constraints are throughput and temperature: ALD is a vacuum batch process, slow relative to roll-to-roll coating, and many precursor chemistries require temperatures that polymeric supports will not survive.

Electrostatic Spray-Assisted Vapor Deposition

The technique described in electrostatic spray-assisted vapor deposition for membrane fabrication occupies the middle ground between laboratory precision and industrial throughput. ESAVD atomizes a precursor solution through an electrostatic field, so charged droplets are driven toward the grounded substrate and undergo chemical reaction and evaporation in transit, arriving as a deposited film rather than as wet spray.

The practical advantages over ALD are that it operates at atmospheric pressure, requires no vacuum chamber, and deposits far faster — making it a plausible route to continuous production. The electrostatic field also improves deposition efficiency and coverage uniformity over line-of-sight spraying, since charged droplets follow field lines onto the substrate rather than passing by it. What is given up is atomic-level thickness control; ESAVD produces films measured in tens to hundreds of nanometers rather than in monolayers.

Interfacial Polymerization in Detail

Because IP produces the active layer of essentially every RO and NF element in municipal service, the process merits closer study than its overview above allows. Dedicated coverage of interfacial polymerization for membrane synthesis examines the reaction kinetics and the formulation variables that determine the finished polyamide: monomer concentration ratio, contact time, the choice of organic phase, additives and surfactants, and the post-treatment steps that follow.

The engineering significance is that these variables set the permeability-selectivity position of the finished membrane, and they explain why elements from different manufacturers with identical nominal ratings behave differently in service. The reaction is self-limiting — the growing polyamide film increasingly impedes monomer diffusion until growth effectively stops — which is what produces a consistent sub-micron layer without requiring precise timing. It is also why the layer’s ultimate thickness and cross-link density, and therefore its chlorine tolerance and fouling behaviour, are set during a reaction lasting seconds.

Selection & Specification Framework

Understanding membrane manufacturing empowers the water treatment engineer to make superior design choices. The decision framework for specifying a membrane module requires aligning the fabrication method’s inherent physical outputs (strength, chemistry, pore structure) with the application’s duty conditions.

Decision Tree Logic

1. Determine the Primary Separation Goal: If removing dissolved salts/ions, an RO/NF membrane produced via Interfacial Polymerization (IP) is required. If removing suspended solids, bacteria, or macromolecules, specify UF/MF.
2. Assess Feedwater Aggressiveness (UF/MF Focus): For mild municipal surface water, membranes made by Nonsolvent Induced Phase Separation (NIPS) provide excellent flux at an economical CAPEX. If the feedwater contains high concentrations of abrasive solids, oils, or requires harsh chemical cleaning, shift to Thermally Induced Phase Separation (TIPS) or Polymer Stretching (Film Extrusion) for PTFE.
3. Evaluate Temperature and Solvent Limits: If treating produced water, high-temperature condensate (>50°C), or wastewater with high organic solvents, polymeric membranes will degrade. In these scenarios, mandate Ceramic Extrusion and Sintering.
4. Select Form Factor (Hollow Fiber vs Flat Sheet): For bulk municipal flow, specify Hollow Fiber Spinning to maximize packing density. For heavily fouling sludges where fibers would “sludge up,” flat sheet or tubular configurations must be specified.

Worked Example — Sizing Against the Fabrication Limit

A 3 MGD municipal UF plant is being sized on surface water. Two candidate hollow-fiber products are offered: a NIPS PVDF rated for 90 LMH peak flux at 2.0 bar maximum backwash, and a TIPS PVDF rated conservatively at 70 LMH but permitting 3.5 bar backwash.

• Design flow: 3.0 MGD = 473 m³/hr, sized at 80% of peak flux for fouling margin
• NIPS area: 473 ÷ (90 × 0.80 ÷ 1,000) = 6,569 m²
• TIPS area: 473 ÷ (70 × 0.80 ÷ 1,000) = 8,446 m² — 29% more membrane
• At roughly $28/m² installed: NIPS ≈ $184,000; TIPS ≈ $236,500 — a $52,500 CAPEX premium

On capital alone NIPS wins, which is how these decisions are usually made. The number that reverses it is replacement frequency. If the source water carries seasonal grit and the plant backwashes aggressively, NIPS fibers commonly reach end of life at 5–6 years against 9–10 for TIPS. Over a 20-year horizon that is roughly three NIPS replacements against two for TIPS, and at those areas and prices the NIPS option costs more in total while consuming considerably more operator time on fiber pinning.

The general lesson is that the fabrication method sets the design flux, and design flux sets the area, so the CAPEX comparison is never like-for-like between manufacturing routes. Compare on installed area at each product’s own safe flux, then extend both over the replacement horizon the feedwater actually implies — not the manufacturer’s warranty period.

CAPEX vs. OPEX Tradeoffs

A major specification pitfall occurs when engineers allow CAPEX to completely drive the choice between NIPS and TIPS PVDF for an MBR. NIPS membranes will generally cost 20-30% less up-front. However, in a municipal MBR experiencing variable grit loading, NIPS fibers may begin to snap at years 3-4, requiring module replacement or constant pinning of broken fibers. TIPS membranes, while carrying a higher initial cost, routinely last 8-12 years in the same application, yielding a significantly lower lifecycle OPEX due to reduced replacement costs and operator intervention.

Common Specification Pitfalls

Engineers frequently confuse the chemical resistance of the polymer with the chemical resistance of the fabrication structure. For example, PVDF is highly tolerant to chlorine. However, a PVDF membrane made via NIPS with large, weak macro-voids will mechanically fail much faster under frequent chlorine-enhanced backwashes than a TIPS PVDF membrane. The chemical attack weakens the polymer, but it is the structural weakness of the NIPS macro-voids that causes the actual fiber breakage.

Comparison Tables

The following tables provide a rapid reference map for engineers to contrast the various membrane fabrication techniques, aligning manufacturing origins with operational realities.

Table 1: Subcategory Comparison of Membrane Fabrication Methods

Table 2: Application Fit Matrix

Engineer & Operator Field Notes

Transitioning from the manufacturing floor to the water plant floor requires translating microstructural fabrication realities into daily operations and maintenance (O&M) procedures.

Commissioning Considerations Varying by Subcategory

Commissioning a new membrane system requires specific steps dictated by its fabrication. For instance, dry-shipped membranes produced via Polymer Stretching (Film Extrusion) (like PTFE) or highly hydrophobic TIPS PVDF often require a specific “wetting out” procedure using low-surface-tension solvents (like isopropyl alcohol or proprietary surfactants) to allow water to penetrate the pores before startup. Conversely, most municipal UF membranes made via Nonsolvent Induced Phase Separation (NIPS) are shipped in preservation fluids (like glycerin) to keep the pores wetted, requiring extensive flushing to drain the TOC load before sending water to the clearwell. For RO systems made by Interfacial Polymerization (IP), the fragile polyamide layer must never be allowed to dry out once wetted, or the pores will permanently collapse.

Common Specification Mistakes

O&M Comparison Across Subcategories

Maintenance burden shifts dramatically depending on the manufacturing origin:

• Mechanical Interventions: Nonsolvent Induced Phase Separation (NIPS) modules typically require more hands-on operator time for fiber “pinning” (identifying and plugging broken fibers after integrity test failures) compared to robust Thermally Induced Phase Separation (TIPS) modules.
• Chemical Cleaning Regimens: Ceramic Extrusion and Sintering modules allow operators almost unlimited freedom to combat severe fouling. They can use 5% caustic, strong nitric acid, and even solvents. In contrast, membranes with Surface Coating and Grafting require operators to strictly adhere to pH and concentration limits (often pH 2-11) to avoid stripping the anti-fouling layer off the membrane support.
• Training Demands: Managing systems based on Interfacial Polymerization (IP) (RO/NF) requires advanced operator training in normalization software to track salt passage and differential pressure, whereas standard UF/MF systems demand more mechanical focus on valve sequencing and backwash optimization.

Troubleshooting Overview by Subcategory

• Symptom: Rapid decline in RO salt rejection. Root Cause for IP Membranes: Chlorine breakthrough, or severe scaling. The ultra-thin layer formed by Interfacial Polymerization (IP) has been chemically oxidized or mechanically sheared by crystal formation.
• Symptom: Sudden loss of UF integrity (high particle counts in filtrate). Root Cause for NIPS Membranes: Fiber breakage. Often caused by exceeding the safe backwash pressure limit (typically >2 bar) or a failure in the air scour regulators sending violent air slugs through the weak macro-void structure formed by Nonsolvent Induced Phase Separation (NIPS).
• Symptom: Permeability will not recover after CIP in an MBR. Root Cause for Coated Membranes: If the membrane relied on Surface Coating and Grafting for hydrophilicity, an over-aggressive chemical clean may have oxidized the coating. The base hydrophobic polymer is now exposed, permanently altering the permeability profile.

Design Details & Standards

Bridging the gap between membrane manufacturing and plant design requires integrating fabrication constraints into the sizing models and regulatory compliance framework.

Sizing Methodology Impacted by Fabrication

The total membrane surface area required for a plant is calculated by dividing the design flow rate by the design flux (Liters per square meter per hour, LMH). The fabrication method directly informs the safe design flux:

• NIPS vs TIPS Sizing: Due to higher initial porosity, a pristine UF membrane made via Nonsolvent Induced Phase Separation (NIPS) might support a peak flux of 80-100 LMH in clean surface water. A heavily robust Thermally Induced Phase Separation (TIPS) membrane in the same water might be sized conservatively at 60-80 LMH. The trade-off is required surface area (CAPEX) vs. long-term robustness.
• Hollow Fiber Sizing Parameters: When designing modules derived from Hollow Fiber Spinning, the internal diameter (ID) determines the pressure drop down the lumen (bore). For “inside-out” filtration, too high a flux in a long, narrow fiber will cause severe pressure gradients, leading to uneven fouling and potential fiber rupture at the potting line.

Key Design Parameters That Differ by Subcategory

Engineers must carefully specify the operating boundaries. For example, the maximum Transmembrane Pressure (TMP) for a polymeric hollow fiber is usually limited to 1.5 – 2.5 bar to prevent physical compaction of the pore structure. However, Ceramic Extrusion and Sintering membranes can easily operate at TMPs of 4.0 to 8.0+ bar without any structural deformation, allowing for the processing of highly viscous fluids.

At the upper end of the pressure range, the constraint shifts from the membrane to everything around it. Guidance on high-pressure membrane systems covers the pump selection, energy recovery devices, vessel ratings, and array staging that govern RO and NF installations — where the fabrication question becomes whether the polyamide layer and its support can survive sustained compaction at 60 to 80 bar without permanent permeability loss.

Applicable Standards & Compliance

NSF/ANSI 61 & NSF/ANSI 419: Any polymeric or ceramic membrane utilized for municipal drinking water must comply with NSF/ANSI 61 (preventing harmful leaching of solvents or polymers into the water). Furthermore, NSF/ANSI 419 regulates the performance testing for UF/MF technologies, specifically validating the log removal values (LRV) for Cryptosporidium based on specific integrity testing parameters.

Additional applicable frameworks: Pathogen removal credit and the direct integrity testing requirements that support it derive from the Long Term 2 Enhanced Surface Water Treatment Rule at 40 CFR Part 141 Subpart W, with EPA’s Membrane Filtration Guidance Manual providing the implementing detail. Analytical compliance follows 40 CFR Part 136, integrity test methods follow ASTM D6908, and NSF/ANSI 372 governs lead content in wetted components. Pressure vessels follow ASME Boiler and Pressure Vessel Code Section X for fiber-reinforced plastic housings, with electrical installation under NFPA 70. Manufacturing-side solvent handling for phase inversion and interfacial polymerization falls under OSHA 29 CFR 1910.1000 and the applicable hazard communication requirements.

Engineers must ensure that the residual solvents used in Nonsolvent Induced Phase Separation (NIPS) or Interfacial Polymerization (IP) are fully flushed and validated under NSF/ANSI 61 protocols.

Specification Checklist by Subcategory

• For All Membranes: Specify nominal and absolute pore size/MWCO, maximum operating TMP, maximum backwash pressure, temperature limits, and acceptable pH range for CIP.
• For Hollow Fiber Spinning (UF/MBR): Specify fiber outer diameter, internal diameter, flow configuration (inside-out vs outside-in), and minimum tensile strength (e.g., >5 N/fiber for MBR).
• For Interfacial Polymerization (RO/NF): Specify active area per element, feed spacer thickness (e.g., 34 mil vs 28 mil), required salt rejection %, and maximum free chlorine exposure limit (typically <0.1 ppm).
• For Ceramic Extrusion: Specify module housing material, gasket/O-ring materials (critical for harsh chemicals), and channel diameter.
• Fabrication Route Stated Explicitly: Require the manufacturing method by name rather than accepting the polymer designation alone, since NIPS and TIPS PVDF differ by a factor of three in tensile strength under identical ratings.
• Surface Modification Durability: Where a coating or graft provides the hydrophilicity, require documented permeability retention after a stated number of CIP cycles at the specified chemistry.

FAQ Section

What are the different types of membrane fabrication methods used in water treatment?

The major manufacturing types include Nonsolvent Induced Phase Separation (NIPS) and Thermally Induced Phase Separation (TIPS) for polymeric UF/MF; Interfacial Polymerization (IP) for producing thin-film composite RO/NF membranes; Hollow Fiber Spinning for creating macroscopic fiber geometries; Ceramic Extrusion and Sintering for robust inorganic membranes; Polymer Stretching (Film Extrusion) for PTFE; Electrospinning for nanofiber webs; Track Etching for precision laboratory filters; and Surface Coating and Grafting for altering membrane surface chemistry.

How do you choose between a membrane made via NIPS and one made via TIPS?

The choice depends on the aggression of the application. Choose Nonsolvent Induced Phase Separation (NIPS) for lower-solids applications like municipal drinking water or RO pretreatment, where its high flux and lower cost are advantageous. Choose Thermally Induced Phase Separation (TIPS) for abrasive, high-solids applications like industrial MBRs, where its sponge-like, macro-void-free structure provides the necessary mechanical strength to prevent fiber breakage during intense air scouring.

Why are RO membranes strictly manufactured using interfacial polymerization?

Interfacial Polymerization (IP) allows manufacturers to decouple the support structure from the active separation layer. They can use a sturdy, porous sub-layer (often PSf) and chemically react an ultra-thin (0.1 micron) polyamide layer precisely on top. This ultra-thin layer is dense enough to reject dissolved salt ions (>99%) while remaining thin enough to allow viable water permeation (flux) under high pressure, a balance impossible to achieve with a single bulk material.

What is the most cost-effective membrane fabrication type for a small municipal drinking water plant?

For standard surface water treatment, ultrafiltration modules produced via Nonsolvent Induced Phase Separation (NIPS) utilizing Hollow Fiber Spinning are generally the most cost-effective. They offer a highly favorable balance of low initial CAPEX, excellent log removal values (LRV) for pathogens, and sufficiently long lifespans (5-10 years) when operated under conservative transmembrane pressures and standard automated backwashing controls.

When should an engineer specify ceramic extrusion and sintering?

Ceramic Extrusion and Sintering should be specified when polymeric membranes would rapidly fail due to extreme operating conditions. This includes continuous operating temperatures above 50°C (up to steam sterilization temperatures), pH extremes (0 to 14), high concentrations of abrasive suspended solids, or the presence of organic solvents and hydrocarbons (like oil and gas produced water) that would dissolve standard polymers.

Can you tell how a membrane was manufactured from its datasheet?

Often not directly, which is why it should be asked for explicitly. Datasheets reliably state polymer, rating, dimensions, and operating limits, but many omit the fabrication route entirely — and the operating limits are where the route reveals itself. A maximum backwash pressure of 2 bar or below on a PVDF hollow fiber points strongly to nonsolvent phase separation; a rating of 3 bar or more, or a stated tensile strength above 5 N per fiber, points to a thermal route. Similarly, a stated maximum operating temperature near 40°C suggests a polymeric support with a coating that will not survive higher, while tolerance to steam indicates ceramic.

The reliable approach is to request the manufacturing method by name in the bid documents and to treat any reluctance to state it as informative in itself. A manufacturer confident in a TIPS process will say so, because it is the basis of the price premium being asked for.

Conclusion

The domain of Membrane Fabrication Methods: Manufacturing Techniques for Water Treatment is complex, merging the subtleties of polymer chemistry with macro-scale hydraulic engineering. By stepping back from simple catalog specifications (like nominal pore size and surface area) and examining the foundational manufacturing techniques, water treatment engineers can fundamentally derisk their designs. The decision methodology requires evaluating the feedwater aggression, balancing CAPEX against O&M realities, and matching the mechanical strength of the fabrication type to the required cleaning regimens. When faced with novel industrial effluents or exceptionally challenging process waters, engineers should involve membrane specialists early to determine if standard polymeric extrusion is sufficient, or if advanced techniques like surface grafting or ceramic sintering are required to achieve reliable, long-term lifecycle performance.
