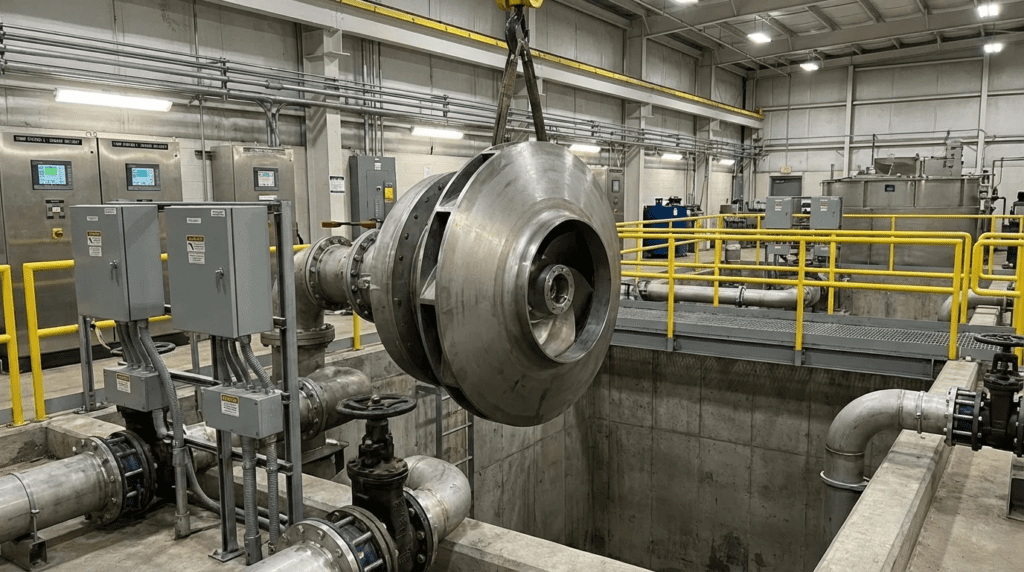

Introduction

For municipal and industrial engineers, the pump is often treated as a singular asset, yet the success or failure of a pumping station frequently hinges on a single component: the impeller. The rise of non-dispersible solids and the demand for higher energy efficiency have created a paradox in modern wastewater design. High-efficiency geometries are often prone to clogging, while traditional open-channel non-clog designs may consume excessive power. This article analyzes the pump manufacturers that engineer specific impeller geometries to solve these fluid dynamics challenges.

In water and wastewater treatment, impellers are rarely commodity items; they are the heart of the hydraulic end, dictating head, flow, efficiency, and solids handling capability. Consulting engineers and plant directors must navigate a marketplace filled with proprietary designs, from screw centrifugal to semi-open chopper configurations. Selecting the wrong impeller type for a specific sludge profile or raw influent stream can lead to catastrophic ragging events, motor overloads, and reduced mean time between failures.

This guide moves beyond marketing claims to evaluate the engineering principles behind leading impeller technologies. We examine how to specify these components for maximum reliability, compare the major manufacturers based on application fit, and explore the lifecycle cost implications of hydraulic selection.

A clarification of what this list actually is, because the original title was misleading. There is no such thing as an impeller manufacturer as a distinct supplier category. An impeller is a component of a pump, designed and cast by the pump manufacturer for its own hydraulic ends. Nobody sells impellers as their business to the municipal market; you buy a pump, and the impeller geometry comes with it. The companies listed below are pump manufacturers, ranked here by the distinctiveness of their impeller engineering.

That distinction changes how the page should be used. You do not specify an impeller vendor; you specify a pump with a defined hydraulic geometry — screw centrifugal, recessed vortex, self-cleaning semi-open, chopper — and a defined material of construction. Write the geometry and the metallurgy into the specification, and the manufacturers capable of supplying it will identify themselves.

One correction to the list: the vortex and solids-handling pump line previously attributed to a named parent company has changed corporate hands, and the attribution could not be verified. Confirm current ownership and aftermarket parts support before specifying any legacy pump line.

This guide sits within our coverage of wastewater pump manufacturers. See also our guides to conventional dry pit pump manufacturers and emergency bypass and temporary pumping systems.

How to Select / Specify

Selecting the correct hydraulic end requires a rigorous analysis of the intersection between fluid properties and mechanical design. Engineers must look past the pump curve to understand the underlying geometry and its interaction with the process media.

Duty Conditions & Operating Envelope

The foundation of impeller specification lies in the system curve. While flow and head determine the best efficiency point, the operating envelope in wastewater is rarely static.

• Variable Flow Profiles: Wastewater influent follows diurnal patterns. An impeller selected for peak wet weather flow may operate efficiently for only a small fraction of the year. It is critical to analyze performance at minimum flows where recirculation and cavitation risks increase.
• Solids Loading: Solids handling is a vague specification term. Engineers must define the nature of the solids: stringy fibrous material requiring shear or self-cleaning action, abrasive grit requiring hardened materials, or heavy sludge requiring screw centrifugal or recessed designs.
• Drive Turndown: When pairing impellers with variable frequency drives, verify that the minimum scouring velocity, typically 2 to 3 ft/s in the discharge piping, is maintained at low speeds to prevent sedimentation.

Materials & Compatibility

The material of construction for the impeller is often the first line of defense against erosion and corrosion. Standard cast iron is frequently insufficient for modern wastewater streams.

• High Chrome Iron (ASTM A532): Essential for grit chambers and primary sludge applications where abrasion is the primary failure mode. Hardness levels often exceed 600 Brinell.
• Duplex Stainless Steel (CD4MCu): The standard upgrade for resistance to both abrasion and chemical corrosion. It offers superior tensile strength compared to 316 stainless.
• Hardening Processes: Some manufacturers offer flame hardening or proprietary coatings on the leading edges of vanes to maintain cutting capability in chopper pumps.

Hydraulics & Process Performance

Balancing hydraulic efficiency with passage size is the central trade-off in impeller design.

• Sphere Passing Size: A critical specification parameter. However, a 3-inch sphere requirement does not guarantee the ability to pass a 3-foot rag.
• Suction Head Margin: Required net positive suction head varies significantly by impeller type. Vortex impellers typically require lower suction head but offer lower efficiency compared to enclosed channel impellers.
• Steep vs. Flat Curves: For applications with variable static head, a steep head-capacity curve is desirable to minimize flow variation.

Installation Environment & Constructability

• Suction Conditions: Poor wet well design, including lack of baffles or air entrainment, will destroy even the best-designed impeller. Screw centrifugal impellers are generally more tolerant of poor inlet conditions than high-speed multi-vane impellers.
• Clearance Adjustment: How is the clearance between the impeller and the wear plate or volute maintained? Designs that allow external adjustment without disassembling the pump casing reduce maintenance labor hours significantly.

Reliability, Redundancy & Failure Modes

Reliability analysis should focus on the consequences of clogging. A clogged impeller creates imbalance, leading to:

• Radial Loading: Excessive radial forces deflect the shaft, destroying mechanical seals and bearings.
• Vibration: High vibration leads to structural fatigue in the piping supports and baseplates.
• Heat Buildup: In submersible applications, a stalled impeller can overheat the stator windings if thermal protection fails.

Controls & Automation Interfaces

• Anti-Clog Functionality: Many modern drives include algorithms that detect high torque and low flow conditions indicative of a rag ball forming. The drive can reverse the impeller rotation to clear the obstruction. This requires an impeller locking system capable of handling reverse torque.
• Power Monitoring: Constant power monitoring can detect wear ring degradation. As the recirculation gap increases, volumetric efficiency drops and specific energy rises.

Maintainability, Safety & Access

Safety is paramount when operators must access pumps to clear blockages. Impellers that require frequent de-ragging expose staff to confined space entry hazards, biohazards from raw sewage contact, and sharps and heavy lifting injuries. Specifying self-cleaning or chopper impellers reduces the frequency of these hazardous interventions.

Lifecycle Cost Drivers

• Efficiency vs. Reliability: An enclosed channel impeller may have high wire-to-water efficiency but clog weekly. A vortex impeller may have much lower efficiency but rarely clog. Once the labor cost of de-ragging is counted, the lower efficiency pump often yields a lower total cost of ownership.
• Wear Components: Evaluate the cost and lead time of wear rings and suction liners. Impellers that rely on tight clearances to maintain efficiency will incur higher parts costs over 20 years.

Comparison Tables

Table 1: Pump Manufacturer Impeller Engineering Profile

Table 2: Impeller Application Fit Matrix

Engineer & Operator Field Notes

Commissioning & Acceptance Testing

• Rotation Check: Running a three-phase pump in reverse is a common error. A centrifugal pump will still produce flow in reverse, at reduced capacity and head, often leading engineers to believe the pump is simply underperforming. Always verify rotation via bump test or phase rotation meter.
• Vibration Baselines: Establish a vibration baseline at the bearings immediately upon startup. This fingerprint is essential for detecting future impeller imbalance caused by uneven wear or rag accumulation.
• Amp Draw Analysis: Verify that the amp draw aligns with the curve at the operating point. High amps may indicate a higher specific gravity than anticipated or rubbing internal clearances.

Common Specification Mistakes

1. Over-specifying Efficiency: Mandating a high minimum efficiency for a raw sewage pump often forces manufacturers to offer tight-clearance enclosed impellers that are prone to clogging. Prioritize sustained efficiency over clean-water factory efficiency.
2. Ignoring Cable Entry: For submersible units, the cable entry is a weak point. Ensure the specification requires capillary barriers to prevent water wicking into the motor if the cable jacket is cut.
3. Vague Material Specs: Specifying “stainless steel” is insufficient. 304 stainless offers poor abrasion resistance. Specify duplex or hardened chrome iron for wastewater service.

O&M Burden & Strategy

• Clearance Adjustments: Semi-open and screw centrifugal impellers require periodic clearance adjustments to maintain head and efficiency. This should be scheduled annually or based on performance degradation.
• Chopper Maintenance: Chopper pumps require sharpening or replacement of the cutter bar and anvil. Dull cutters increase motor load and reduce effectiveness.
• Predictive Maintenance: Use SCADA trends. A gradual increase in power consumption for the same flow rate indicates wear. A sudden increase in vibration typically indicates a rag ball caught on a vane or a chipped impeller.

Troubleshooting Guide

• Symptom: High amps or trip.
  Possible cause: Ragging, high specific gravity, or rubbing wear rings.
  Action: De-rag pump; check clearances; verify fluid density.
• Symptom: Low flow or head.
  Possible cause: Reverse rotation, excessive wear ring clearance, air binding.
  Action: Check phase rotation; adjust liner gap; check wet well levels for vortexing.
• Symptom: Excessive vibration.
  Possible cause: Imbalanced impeller from erosion or clogging, bent shaft, resonance.
  Action: Inspect impeller for missing mass; check alignment; perform vibration spectrum analysis.

Design Details / Calculations

Sizing Logic & Methodology

Impeller sizing is governed by the specific speed of the application. Specific speed is calculated as the pump speed in revolutions per minute multiplied by the square root of the flow at the best efficiency point, divided by the head at that point raised to the power of 0.75. Using US customary units of rpm, gallons per minute and feet:

• Low specific speed (roughly 500 to 1,000): Radial flow impellers. High head, low flow, narrow channels. High risk of clogging in small sizes.
• Medium specific speed (roughly 2,000 to 4,000): Mixed flow impellers. The usual range for municipal sewage applications, with a good balance of solids handling and efficiency.
• High specific speed (above roughly 5,000): Axial flow propellers. High flow, low head. Used for flood control and recirculation.

Why the Impeller Cannot Be Specified Alone

Everything above concerns the rotating element, but a pump’s clog resistance is set by a chain of components, and the impeller is only the first link. Specifying a self-cleaning impeller into a station with a badly shaped wet well buys very little.

Three things outside the pump determine whether it clogs:

• Wet well geometry and cycling. A wet well with a large flat floor and long fill cycles grows a floating grease and rag mat between pump starts. The next start draws that mat straight into the suction. A sloped or benched floor, a smaller active volume with more frequent starts, and a periodic pump-down below normal low level all do more for clog resistance than an impeller upgrade.
• Suction and discharge piping. Rags reassemble wherever velocity drops. A discharge line sized for a future peak flow runs below scouring velocity today, and the deposit that forms there returns as a slug. Check the velocity at present average flow, not design flow.
• Drive and control logic. Modern anti-clog routines that detect the torque signature of a forming rag ball and briefly reverse the impeller are genuinely effective, but they require an impeller retention arrangement rated for reverse torque. Specify the logic and the mechanical capability together, or the feature cannot be enabled.

Where a station clogs repeatedly, work through those three before changing the hydraulic end. The impeller is frequently blamed for a wet well problem.

Specification Checklist

• Design Operating Point: Flow and head.
• Secondary Operating Points: Minimum flow and runout flow.
• Available Suction Head: Calculated at the lowest wet well level.
• Max Solid Size: Required sphere passing diameter.
• Fluid Characteristics: Temperature, pH, specific gravity, abrasiveness.
• Impeller Type Preference: For example, single-vane screw centrifugal or two-vane semi-open non-clog.
• Balancing Standard: ISO 1940-1 Grade G6.3 is typical for wastewater impellers.

Standards & Compliance

• Hydraulic Institute Standards: Reference HI 1.1-1.2 for nomenclature and HI 1.3 for testing. Acceptance grade 1U or 1B is standard for municipal pumps.
• AWWA Standards: Ensure compliance with applicable AWWA standards for coatings and materials.
• Hazardous Location: If the environment is classified, the pump and impeller assembly must be part of a hazardous location rated system.

Frequently Asked Questions

What is the difference between a vortex impeller and a channel impeller?

A channel impeller, enclosed or semi-open, directs flow through defined vane passages, physically pushing the liquid. It offers higher efficiency but tighter clearances where solids can lodge. A vortex or recessed impeller sits back in the volute housing, creating a swirling fluid mass that pulls the liquid through. The impeller rarely touches the solids, making it excellent for grit and large debris, but it is significantly less energy-efficient.

How do I select the right impeller material for abrasive grit?

Standard cast iron wears quickly in grit applications. High chrome iron is the standard for abrasion resistance due to its high hardness. However, high chrome is brittle and hard to machine. If corrosion is also a concern, duplex stainless steel provides a balanced compromise between hardness and chemical resistance.

Why are screw centrifugal impellers popular for sludge?

Screw centrifugal impellers combine the properties of a positive displacement screw and a centrifugal impeller. They have a single spiral vane with a long, open channel. This design handles high-viscosity sludge and large solids gently without the turbulence that damages biological floc or emulsifies oil and grease. They also have a steep head curve, which helps maintain flow as line pressure varies.

Can I trim a wastewater impeller to change performance?

It depends on the design. Enclosed channel impellers can often be trimmed to lower head and power consumption, similar to clean water pumps. However, single-vane, screw centrifugal, and some vortex impellers generally cannot be trimmed easily without altering the hydraulic geometry or unbalancing the unit. Variable frequency drives are the preferred method for adjusting performance in wastewater applications.

What is the best impeller for non-dispersible wipes?

There is no single best impeller, but self-cleaning semi-open designs with backswept leading edges and relief grooves are specifically engineered for this. Chopper pumps are also effective but are generally used where the duty demands it, due to higher energy costs and maintenance needs. Avoid standard enclosed channel impellers in stations prone to heavy wipe loading.

How often should impeller clearances be adjusted?

Clearances should be checked annually or whenever a drop in pump performance is noticed. For severe service in grit or sand, checks may be needed quarterly. As the gap between the impeller and the suction liner increases, internal recirculation rises, causing a drop in efficiency and an increased risk of clogging. Most modern pumps allow external adjustment of this gap.

Conclusion

Specifying the right hydraulic end is an exercise in risk management. The engineer must balance the competing demands of energy efficiency, capital cost, and operational reliability. While manufacturers such as Xylem, Sulzer, and KSB offer broad portfolios covering most applications, specialists such as Vaughan and Hidrostal provide critical solutions for extreme process conditions.

Successful selection requires moving beyond the catalog curve. It demands a thorough understanding of the specific wastewater matrix, whether fibrous influent, abrasive grit, or delicate floc. By prioritizing the hydraulic geometry’s ability to handle the specific solid profile and ensuring the materials of construction match the chemical and physical environment, engineers can design pumping systems that deliver decades of reliable service rather than constant maintenance headaches.
