Understanding Double Block and Bleed Ball Valves: A Comprehensive Overview

In the domain of process engineering and fluid control, valves play a pivotal role in the efficient management of fluids and gases. Among the various types of valves employed in the industry, double block and bleed ball valves stand out for their unique design and functionality. This article delves into the intricacies of double block and bleed (DBB) ball valves, elucidating their construction, mechanisms, applications, advantages, and maintenance considerations.

Ball valves occupy a central position in the isolation hierarchy of any treatment plant, pump station, or chemical feed skid, and the double block and bleed configuration represents the most safety-critical expression of that valve family. As part of the broader family of valves used in water treatment plants, ball valves are specified wherever tight shutoff, low pressure drop, and rapid quarter-turn operation matter more than throttling capability. This page serves as the category hub for ball valves: it covers the double block and bleed configuration in depth, then maps the wider ball valve landscape — construction types, actuation methods, and supplier options — so that engineers and operators can navigate from a general isolation requirement to a specific, defensible valve tag.

Table of Contents

1. Introduction to Double Block and Bleed Valves
2. Design and Construction of DBB Ball Valves
   • 2.1 Types of DBB Valves
   • 2.2 Comparing DBB Ball Valves with Other Valve Types
   • 2.3 DBB vs. DIB — What API 6D Actually Defines
3. Mechanics of Double Block and Bleed Ball Valves
4. Ball Valve Category Overview
5. Applications of DBB Ball Valves
6. Advantages and Limitations of Using DBB Ball Valves
7. Comparison Tables
8. Selection and Specification Framework
9. Maintenance and Inspection of DBB Ball Valves
10. Field Notes
11. Design Details and Standards
12. Future Trends in Valve Technology
13. Frequently Asked Questions
14. Conclusion

1. Introduction to Double Block and Bleed Valves

Double block and bleed valves are essential components used in various industries, including oil and gas, chemical processing, and water management. They are designed to provide a high level of safety and reliability by isolating a section of piping from the system while allowing for monitoring and drainage. DBB valves facilitate maintenance, testing, and servicing of upstream equipment without the risk of fluid leaks or pressure blowouts.

Definition: A double block and bleed valve is a valve assembly that incorporates two block valves and a bleed port. The two block valves prevent the flow of media, while the bleed port enables the safe dissipation of any residual pressure in the sealed section.

The operational logic behind that definition is verification. Any single closure element can leak — a scored ball, a nicked seat, a piece of grit carried in from an upstream basin. A single valve gives the operator no way to know whether it is holding. Two closure elements in series with a vent between them turn isolation into a measurable condition: close both, open the bleed, and observe. A dry bleed with no pressure buildup confirms that at least the upstream seat is sealing. A steady weep or a rising cavity pressure tells the operator that the isolation is compromised before anyone breaks a flange. In water and wastewater service this matters most on chemical feed systems, where the media may be sodium hypochlorite, ferric chloride, sulfuric acid, or ammonia, and where a failed isolation during a pump rebuild becomes a personnel exposure event rather than a housekeeping problem.

2. Design and Construction of DBB Ball Valves

DBB ball valves are a specific type of valve featuring a ball-shaped closure element. The design of these valves is crucial for their effective function.

2.1 Types of DBB Valves

There are several types of DBB valve configurations:

• Single Body DBB Valves: In this design, both ball valves are integrated into a single casting. This offers compactness and reduced potential for leakage paths.
• Two-Piece DBB Valves: This configuration includes two separate valve bodies that are bolted together. It allows for easier maintenance and repair as each valve can be serviced individually.
• Three-Piece DBB Valves: This involves three sections (two end pieces and one central body). This design facilitates easier access to the ball and seat for maintenance purposes.

Two further construction distinctions drive most of the specification decisions on a DBB tag. The first is ball support. In a floating design, the ball is held only by the seats, and line pressure pushes it downstream into the outboard seat to create the seal; this is simple, economical, and typical of smaller sizes and lower classes, but seating torque climbs quickly with diameter and differential pressure. In a trunnion-mounted design, the ball is anchored top and bottom by bearings, and spring-energized seats are pressed against the ball rather than the ball being pushed against a seat. Trunnion construction dominates larger sizes and ASME Class 300 and above because operating torque stays comparatively flat as pressure rises, and because each seat can be engineered independently — which is precisely what a true double-isolation assembly requires.

The second distinction is seat behavior under cavity pressure. Single-piston-effect (SPE) seats are self-relieving: if pressure builds in the body cavity between the two seats, the upstream seat lifts and vents that pressure back into the line. Double-piston-effect (DPE) seats do not relieve; they are pushed harder against the ball as cavity pressure rises, which produces genuine bidirectional blocking but makes an external cavity relief path mandatory. Assemblies are commonly furnished as DIB-1 (both seats double-piston-effect) or DIB-2 (one DPE seat and one SPE seat), and the choice is a safety decision rather than a catalog preference. Instrument-scale assemblies — monoflange and double-block-and-bleed manifolds in the roughly ½-inch to 2-inch range — condense the same logic into a single forged block with two isolation stems and an integral vent, eliminating the interconnecting piping that historically leaked.

2.2 Comparing DBB Ball Valves with Other Valve Types

DBB ball valves can be compared to other valve types such as gate valves and globe valves:

• Gate Valves: While gate valves are excellent for on/off services, they do not provide throttling capability and are not suitable for quick shut-off situations.
• Globe Valves: These valves offer good throttling properties but usually have higher pressure drops when fully open compared to ball valves and may not be ideal for applications requiring rapid operation.
• Plug Valves: Eccentric and lubricated plug valves are the closest functional competitor to a DBB ball assembly and are frequently specified for the same duty. Plug valves tolerate solids, rag, and grit far better than a soft-seated ball, which makes them the default on raw sewage, primary sludge, and grit slurry lines, and double block and bleed plug valve designs exist for the same isolation-verification purpose. The trade-off is higher operating torque, a larger actuator, and a seating surface that wipes rather than shears — acceptable on dirty water, less attractive on clean chemical feed where a ball valve’s near-zero pressure drop and lower torque win.

DBB valves combine the benefits of quick operation, tight sealing, and the ability to safely vent residual media, making them critical in applications where safety is paramount.

2.3 DBB vs. DIB — What API 6D Actually Defines

The single most consequential misunderstanding in this product category is the difference between what the industry calls a double block and bleed valve and what API 6D formally defines. In API 6D terminology, a double block and bleed valve is a single valve with two seating surfaces that, in the closed position, provides a seal against pressure from both ends of the valve, with a means of venting the cavity between those seats. Critically, that definition does not guarantee two independent barriers against pressure from one side — with self-relieving seats, the upstream seat can lift and pass pressure into the cavity, leaving only the downstream seat holding. Double isolation and bleed (DIB) is the term reserved for configurations in which each seat is independently capable of sealing against pressure from a single source.

The practical consequence is direct: if the intent is to break a line, enter a vessel, or place a system under a lockout/tagout permit, the specification needs to call out DIB with the appropriate seat arrangement, not simply “DBB.” Many plants have written “double block and bleed” into a mechanical integrity procedure and then purchased a valve that satisfies the catalog label while providing one true barrier. When personnel entry or line breaking is involved, two physically separate valves with an intervening bleed — or a properly specified DIB assembly — is the defensible arrangement.

3. Mechanics of Double Block and Bleed Ball Valves

A DBB ball valve operates as follows:

1. Fluid Flow Control: The ball valve incorporates a hollow, perforated sphere that rotates within the valve body. When the valve is opened, the ball is rotated so that the hole aligns with the flow path, allowing fluids to pass through. Conversely, when closed, the solid side of the ball blocks the flow.
2. Double Block Functionality: The two block valves create a double barrier. When initiating service or maintenance, both valves must be closed, effectively isolating the section of the system.
3. Bleed Function: The bleed port, which is located between the two block valves, allows any trapped fluid to be safely vented. If there is any leakage through the ball, the bleed port provides a means to relieve pressure and monitor the integrity of the isolation.

This combination of functionalities ensures that DBB ball valves offer superior safety measures in any application.

The sequence in which those three functions are exercised is what converts the hardware into a safety function. The accepted field procedure is to close the upstream block first, close the downstream block second, then crack the bleed and hold it open long enough to observe steady-state behavior rather than the initial cavity dump. A cavity that vents once and stays dry indicates sealing; a cavity that repressurizes after being vented indicates seat bypass, and the magnitude of the repressurization rate is a rough proxy for how badly the seat is passing. Soft-seated assemblies specified to ISO 5208 Rate A are expected to show no visible leakage, so any persistent weep on a new soft-seated valve is a defect rather than a tolerance. Metal-seated assemblies are typically held to a looser rate and will show a measurable allowable leakage, which is why metal seats are chosen for abrasive and high-temperature service rather than for verification-critical isolation.

Torque behavior matters just as much as sealing. Break-to-open torque on a soft-seated ball valve rises with differential pressure, sits idle in one position for months at a time, and increases further as the seat takes a compression set or as scale forms at the ball-to-seat interface. This is why stuck valves in water and wastewater service are so often discovered during an emergency rather than during normal operation, and why exercise programs are the single highest-value maintenance activity for isolation valves that spend their lives in one position.

4. Ball Valve Category Overview

Double block and bleed is one configuration within a much larger ball valve category. The three areas below define how ball valve specifications are actually built in practice: what the valve is made of and how it seals, how it is operated, and who supplies it.

Ball Valve Types

The construction variants that make up ball valve types determine sealing behavior, torque, maintainability, and cost far more than nominal size or pressure class do. Floating ball designs suit smaller lines and lower differential pressures, while trunnion-mounted designs carry the ball on bearings and keep torque manageable at larger diameters and higher classes. Body construction varies from one-piece and two-piece designs, which are economical but must be removed from the line for seat replacement, through three-piece and split-body designs that allow in-line servicing, to fully welded bodies used where a leak-free envelope outweighs any need to open the valve. Port geometry adds another axis: full-port balls preserve line diameter and allow pigging or rodding, reduced-port balls cost less and impose modest additional headloss, and V-port balls trade tight shutoff for a characterized flow curve suitable for modulating duty. Multi-port configurations such as three-way and four-way balls replace two or three separate valves in diverting service, which is common on filter influent headers and chemical carrier-water arrangements.

Ball Valve Actuation

How a ball valve is driven is a separate specification discipline from how it is built, and ball valve actuation covers the pneumatic, electric, hydraulic, and manual options available for quarter-turn service. Pneumatic rack-and-pinion and scotch-yoke actuators dominate where instrument air is already distributed and where fast stroke times or spring-return fail-safe action are required; a spring-return pneumatic actuator will typically stroke a small isolation valve in a few seconds and drive it to a defined position on air loss. Electric multi-turn and part-turn actuators suit remote sites without air, offer precise position control and modulating capability, and integrate readily with SCADA over hardwired or fieldbus connections, at the cost of slower stroke times and the need for a fail-safe battery or capacitor pack. Manual operation remains entirely appropriate for infrequently exercised isolation duty, with gear operators specified once handle torque exceeds what an operator can reasonably apply. Whatever the driver, actuator sizing should apply a safety factor over the valve’s rated break torque — a factor in the range of 1.25 to 1.5 is a common design margin — because the published torque assumes a clean, new valve rather than one that has sat closed in scaling water for two years.

Ball Valve Manufacturers

Supplier selection carries real technical weight in this category, and the landscape of ball valve manufacturers spans general industrial producers, waterworks specialists, and severe-service houses with very different strengths. Waterworks-oriented manufacturers build to AWWA design and testing requirements and carry the certifications that municipal potable systems demand, including NSF/ANSI/CAN 61 for material safety and NSF/ANSI 372 for low-lead content. Industrial and process manufacturers compete on pressure class, fire-safe certification, and fugitive-emission stem packing qualified to standards such as ISO 15848 or API 622 and 624. Severe-service suppliers focus on metal-seated and coated-ball designs for abrasive, high-temperature, or high-cycle duty. Practical differentiators worth resolving before award include spare-seat lead times, whether the seats and stem packing are field-replaceable without cutting the valve out, availability of certified material test reports, and whether the manufacturer’s actuation packages are factory-mounted and tested or assembled by a third party.

5. Applications of DBB Ball Valves

Double block and bleed ball valves are utilized across numerous industries. Typical applications include:

• Oil and Gas Industry: Used for isolating sections of pipelines, facilitating maintenance without shutting down entire systems.
• Chemical Processing: Providing isolation for reactors and holding tanks while allowing for safe venting.
• Water and Wastewater Management: Used in valve stations to manage flow while allowing safe maintenance.
• Power Generation: Employed in steam lines and feedwater systems for efficient flow control.
• Pharmaceuticals: Ensuring cleanliness and sterility by isolating and venting during maintenance.

Their versatility and reliability make them an ideal choice for critical applications across these industries.

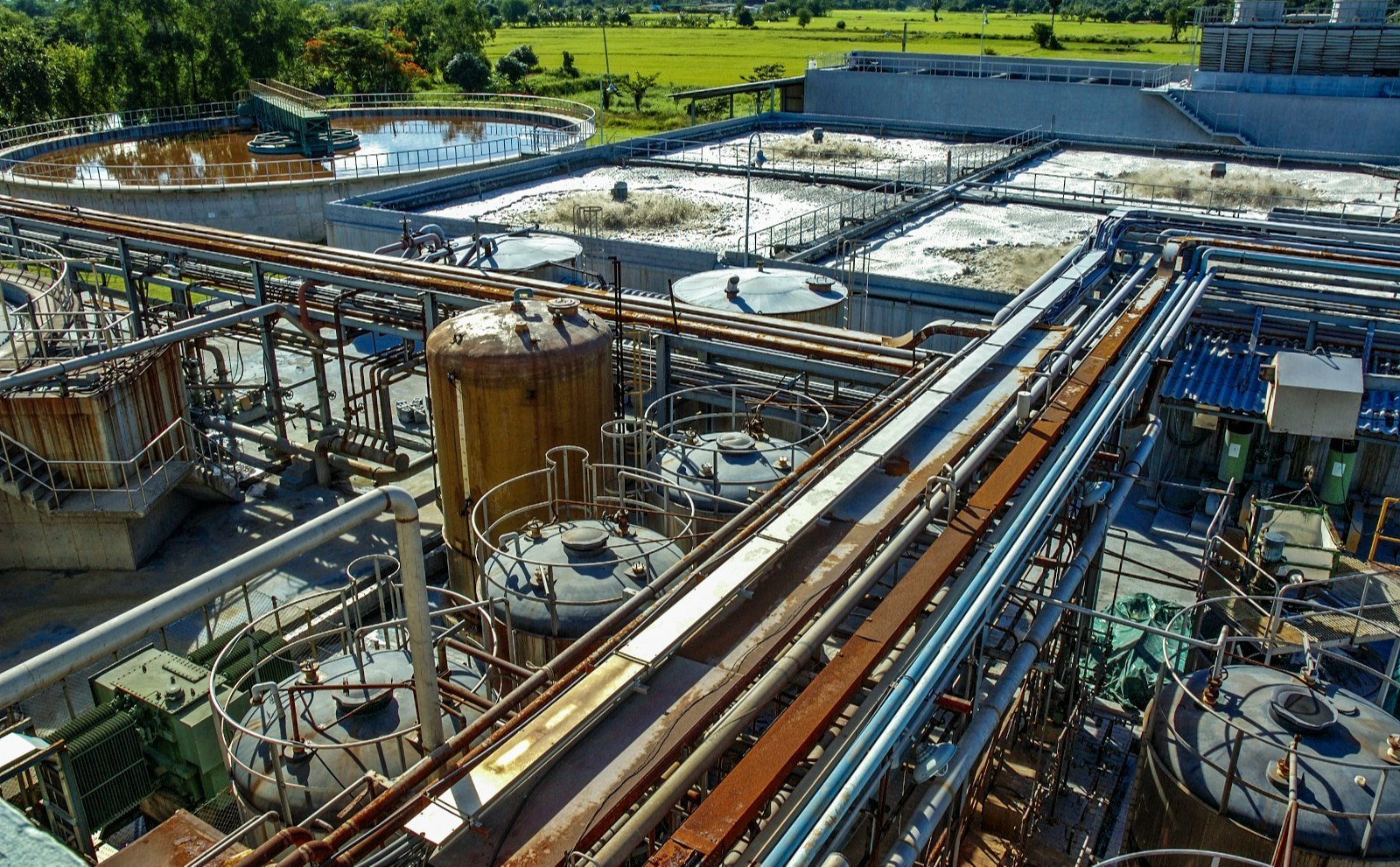

Where DBB Assemblies Earn Their Cost in Water and Wastewater Plants

Within a treatment plant the DBB configuration is not applied uniformly; it is concentrated where the consequence of a failed isolation is exposure, contamination, or an unplanned confined-space condition. Chemical feed is the primary case. Sodium hypochlorite, ferric chloride, sodium hydroxide, polymer, and sulfuric acid lines all require pump and injector service on a routine cycle, and each one presents a personnel hazard if a single isolation valve passes while a technician has the line open. A DBB assembly at the pump suction and discharge lets the crew verify isolation with the bleed before dismantling anything, and the bleed itself provides a controlled drain point for the residual chemical in the spool.

Instrument isolation is the second high-value case. Pressure transmitters, differential-pressure cells on filter beds, and analyzer sample taps are routinely removed for calibration and replacement, and DBB monoflanges or two-valve and five-valve manifolds mounted directly to the process connection eliminate the tubing and fittings that would otherwise form the leak path. Digester gas and biogas service is the third: methane collection, condensate traps, and flare headers benefit from verified isolation for the obvious reason that the trapped medium is flammable, and the bleed provides a purge point before hot work.

Other recurring placements include sample connections on process and finished-water lines where cross-connection control is a regulatory concern, meter and pressure-reducing station bypasses where a leaking isolation valve corrupts the measurement, and battery-limit connections between a plant and a contract operator’s or industrial customer’s piping, where a documented double isolation defines the boundary of responsibility. What all of these share is not high pressure but high consequence — the reason a DBB assembly is justified is almost never hydraulics.

6. Advantages and Limitations of Using DBB Ball Valves

There are multiple reasons why DBB ball valves are preferred in various applications:

• Safety: By providing a reliable means for isolating equipment without leakage, these valves reduce the risk of accidents during maintenance.
• Efficiency: The quick operation of ball valves enables rapid opening and closing, which is essential in dynamic processes.
• Reduced Maintenance Costs: The ability to isolate sections of pipe reduces downtime and the associated costs of extensive system shutdowns.
• Compact Design: The single-body DBB design minimizes space requirements compared to traditional setups, making them ideal for limited spaces.
• Multi-Functionality: Their design allows for multiple functions—blocking, bleeding, and verifying leak integrity—within one assembly.
• Reduced Leak Paths: A single-body assembly replaces two valves, two sets of flanges or welds, and an interconnecting spool with one pressure envelope, removing several potential leak points and a meaningful amount of installed weight.

Limitations and Honest Trade-Offs

The configuration is not free, and specifying it indiscriminately wastes capital. A DBB assembly typically costs a multiple of a single equivalent ball valve, and the price gap widens sharply with size, pressure class, and exotic materials. Soft-seated ball valves handle solids poorly: rag, grit, and fibrous material score the seat and the ball surface, which is why eccentric plug and knife gate valves remain dominant on raw sewage and sludge while ball valves concentrate on clean water, chemical, gas, and instrument service. Cavity pressure is a genuine hazard rather than a footnote — a soft-seated valve closed on a liquid that then warms will build cavity pressure, and if the seats are double-piston-effect with no external relief the body can be overstressed. Torque and actuator cost scale unfavorably with size, so above roughly 8 to 12 inches the economics often favor two separate valves with a bleed spool between them rather than an integral assembly. Finally, the DBB label itself is a limitation when it is trusted without verifying the seat configuration, as covered in section 2.3.

7. Comparison Tables

8. Selection and Specification Framework

Selecting a DBB ball valve is a sequence of decisions, and taking them in the wrong order is what produces valves that meet the datasheet and fail the duty.

Step 1 — Define the isolation intent before the valve

Establish first what the isolation must accomplish. Routine operational shutoff, where nobody opens the line, is satisfied by a conventional DBB assembly. Line breaking, equipment removal, or vessel entry under a lockout/tagout permit requires two verified independent barriers, which points to a DIB seat arrangement or two separate valves with an intervening bleed. Write the intent into the specification in plain language, because the catalog term alone will not carry it.

Step 2 — Screen the media

Solids content is the first disqualifier. If the line carries rag, grit, fibrous solids, or thickened sludge, a soft-seated ball assembly will not survive a normal service interval, and the correct answer is usually an eccentric plug or knife gate arrangement instead. If the media is clean water, treated effluent, a chemical solution, or a gas, a ball assembly is appropriate and the remaining questions are material compatibility and temperature. Sodium hypochlorite, for example, attacks many elastomers and some stainless grades; PTFE or PVDF wetted surfaces and appropriate body materials are the usual answer, and the material selection should be confirmed against the actual solution strength rather than a generic compatibility chart.

Step 3 — Set pressure class, port, and end connections

Establish design pressure and temperature and select the ASME class or AWWA pressure rating accordingly, remembering that soft seat materials derate with temperature well before the body does. Choose full port where pigging, rodding, or minimum headloss matters, and reduced port where cost and weight dominate. Match end connections to the piping standard already in place — flanged for serviceability, welded where a permanently leak-free envelope is preferred, threaded only in small instrument sizes.

Step 4 — Specify seat configuration and cavity relief explicitly

State whether seats are to be single-piston-effect or double-piston-effect and, where DPE seats are used, specify the cavity relief method — an external relief valve, a drilled ball, or a documented operating procedure. This single line item is the difference between an assembly that is safe to use for personnel protection and one that is not.

Step 5 — Select and size the actuation package

Decide the operating mode and fail position before sizing hardware. Fail-closed, fail-open, and fail-in-place each imply different equipment, and the choice should follow from a process hazard review rather than from what is easiest to buy. Pneumatic, electric, and hydraulic actuators each carry their own utility requirements, stroke speeds, and failure behavior, and the actuator commonly costs more than the valve it drives on small assemblies. Size to the valve’s rated break torque with a margin of roughly 1.25 to 1.5, confirm the mounting kit conforms to ISO 5211, and specify whether limit switches, position transmitters, and partial-stroke testing are required for the plant’s control and reliability strategy.

Step 6 — Confirm certifications and total cost of ownership

For potable water service, confirm NSF/ANSI/CAN 61 and NSF/ANSI 372 compliance for all wetted materials. For flammable service, confirm fire-safe testing to API 607 or API 6FA. For emissions-sensitive service, confirm stem packing qualification. Then compare lifecycle cost rather than purchase price: seat kit cost and lead time, whether the valve is field-repairable in place, actuator spares, and the labor hours associated with the expected service interval routinely outweigh the initial price difference between two competing assemblies over a fifteen-to-twenty-year plant life.

9. Maintenance and Inspection of DBB Ball Valves

Proper maintenance is crucial for ensuring the longevity and reliability of DBB ball valves. Here are some key maintenance practices:

• Regular Inspections: Routine checks should be conducted to inspect for leakage around the seals and connections. Leaks are often the first indicators of wear.
• Operational Testing: Periodic testing of the valve’s operational capabilities should be performed to ensure that it opens and closes smoothly and without resistance.
• Lubrication: Depending on the design, lubrication may be required for bearings and seals to reduce friction and wear.
• Documentation: Keeping records of maintenance practices ensures compliance with safety regulations and aids future troubleshooting.
• Replacement of Wear Parts: As with any machinery, parts such as seals and packing may eventually need replacement based on wear and operating conditions.

By adhering to these maintenance practices, operators can ensure optimal performance and extend the lifespan of DBB ball valves.

Building a Practical Inspection Interval

The most useful maintenance activity on an isolation valve is exercise. Valves that sit in one position for extended periods accumulate scale at the ball-to-seat interface, take a compression set in the seat material, and dry out the stem packing, all of which raise break torque and eventually produce a valve that will not move when it is needed. A quarterly to semi-annual full-stroke exercise cycle is a reasonable starting point for critical isolation tags in water and wastewater plants, tightened to monthly for chemical feed service and relaxed to annual for low-consequence duty.

The seat integrity check is equally valuable and takes almost no time: close both blocks, open the bleed, and record whether the cavity stays dry. Logging that observation on every exercise cycle turns a pass/fail inspection into a trend, and a seat that begins to weep months before it fails outright gives the plant time to buy a kit rather than react to an outage. Record break torque where an actuator with a torque readout is fitted, note stem packing weepage separately from seat leakage since the two have different remedies, and confirm that any cavity relief device is functional at the same visit. Documentation of these checks also supports the mechanical integrity requirements that apply wherever the assembly is credited as a personnel-protection barrier.

10. Field Notes

Commissioning Considerations

Verify the bleed discharge is routed somewhere safe before the system is pressurized. On chemical service this means a hard-piped drain to containment, not an open port at chest height in a walkway; on gas service it means a vent routed to a safe location. Confirm the assembly’s flow direction marking against the actual source side, since a DIB-2 assembly installed backwards provides no meaningful double isolation. Stroke the valve through its full range with the actuator before final tie-in, and confirm that the visual position indicator matches the actual ball position, because mismatched indicators are a common source of dangerous assumptions during a permit.

Common Specification Mistakes

Aside from confusing DBB with DIB, the recurring errors are specifying a soft-seated ball assembly on solids-bearing service, omitting cavity relief on a DPE arrangement, sizing the actuator to nominal rather than break torque, and specifying an integral assembly in a size where two separate valves and a bleed spool would be cheaper, lighter to handle, and easier to repair. A fifth, quieter error is specifying an assembly with no accessible bleed — an isolation-verification device that cannot be reached from a walking surface will not be used.

Operations and Maintenance Comparison

Instrument-scale monoflanges are the least demanding of the configurations, needing little more than stem-seat kits and occasional packing adjustment. Three-piece assemblies sit in the middle, offering in-line seat replacement at the cost of more bolted joints to inspect. Integral single-body and trunnion DIB assemblies demand the most planning: seat work usually means removing the assembly, and DIB units carry the additional obligation to test the cavity relief path on a schedule.

11. Design Details and Standards

Applicable Standards

Ball valve design, testing, and marking in industrial and pipeline service are governed principally by API 6D for pipeline valves, API 608 for metal ball valves with flanged, threaded, and welding ends, and ASME B16.34 for pressure-temperature ratings and wall thickness. Pressure testing and inspection follow API 598, while seat leakage acceptance is classified under ISO 5208. Fire-safe qualification is addressed by API 607 and API 6FA, and fugitive-emission stem packing qualification by ISO 15848 or API 622 and 624. For municipal water works service, AWWA design and testing requirements apply, and wetted materials in potable systems must comply with NSF/ANSI/CAN 61 and the low-lead requirements of NSF/ANSI 372. Where the assembly is credited as an energy-isolating device during servicing, the requirements of OSHA 29 CFR 1910.147 govern how it is used.

Key Parameters That Differ by Configuration

Face-to-face dimension varies substantially between integral and bolted assemblies and should be confirmed against the available spool length before ordering. Seat material sets the temperature ceiling — conventional PTFE seats are generally limited to roughly 400 °F (about 204 °C), reinforced grades and PEEK extend that range, and metal seats are used above it or where abrasion dominates. Torque figures differ between floating and trunnion designs and between clean and fouled conditions, so actuator sizing should reference the manufacturer’s rated break torque rather than a generic table. Cavity relief pressure, where an external relief device is used, should be set below the body’s cavity rating with adequate margin.

Specification Checklist

1. State the isolation intent — operational shutoff, or personnel protection under a permit.
2. Specify DBB or DIB explicitly, including the seat arrangement (SPE, DIB-1, or DIB-2).
3. Define media, solids content, concentration, temperature range, and design pressure.
4. Select body, ball, stem, seat, and seal materials against the actual media and temperature.
5. Choose full or reduced port and fix the end connection type and rating.
6. Specify cavity relief method where DPE seats are used.
7. State seat leakage acceptance class and the required pressure test regime.
8. Define actuation type, fail position, sizing margin, ISO 5211 mounting, and required accessories.
9. List required certifications — potable water, fire-safe, fugitive emissions, material test reports.
10. Confirm bleed port size, orientation, and safe routing of the discharge.
11. Confirm accessibility of the bleed and the handle or actuator from a permanent walking surface.
12. Specify spare seat and seal kits and required delivery lead time.

12. Future Trends in Valve Technology

As industries evolve, so do the technologies associated with fluid control. Key trends impacting the future of DBB ball valves include:

• Smart Valves: The incorporation of sensors and IoT technologies allows for real-time monitoring and data analytics. Smart DBB valves can inform operators of their condition, greatly reducing the need for routine inspections.
• Enhanced Materials: Advances in materials science will lead to the development of more robust materials resistant to corrosion, temperature fluctuations, and pressure variations, thus improving valve longevity.
• Automation: The integration of automated systems in DBB valves will enhance operational efficiency. Automated valves can be controlled remotely, providing better reliability and safety.
• Regulatory Changes: As safety standards and environmental regulations evolve, valve designs and materials will adapt to meet new requirements.

Two developments are worth watching specifically in the isolation-verification context. The first is instrumented bleed monitoring, in which a small pressure transmitter on the cavity reports seat integrity continuously rather than at inspection intervals, turning a manual observation into a trended condition indicator. The second is partial-stroke testing on actuated assemblies, borrowed from emergency shutdown practice, which exercises the valve through a limited arc to confirm it will move without interrupting service — a direct answer to the stuck-valve failure mode that dominates isolation service in water and wastewater plants.

13. Frequently Asked Questions

What is the difference between a double block and bleed valve and a double isolation and bleed valve?

A double block and bleed valve, as defined in API 6D, has two seating surfaces that seal against pressure from both ends with a vent between them, but it does not necessarily provide two independent barriers against pressure from a single source. A double isolation and bleed (DIB) valve has seats that are each independently capable of sealing against pressure from one source. The distinction matters whenever the isolation supports line breaking or vessel entry, because only the DIB arrangement provides two verified barriers in that direction.

Are DBB ball valves suitable for raw sewage or sludge?

Generally no. Soft-seated ball valves are vulnerable to rag, grit, and fibrous solids, which score the ball and seat and destroy the tight shutoff the configuration exists to provide. Eccentric plug valves and knife gate valves are the conventional choices for solids-bearing lines. Ball-based DBB assemblies belong on clean water, treated effluent, chemical solutions, gases, and instrument connections.

What size and pressure range do DBB ball valve assemblies cover?

Instrument-scale monoflanges and manifolds typically cover roughly ½ inch through 2 inches, while piping-scale assemblies extend well beyond that in both flanged and welded configurations across ASME Class 150 through Class 2500 in industrial service. In water and wastewater plants, most DBB tags sit in the small to mid range on chemical feed and instrument service; above roughly 8 to 12 inches, two separate valves with a bleed spool between them are usually more economical and easier to maintain than an integral assembly.

Do double block and bleed valves need cavity pressure relief?

It depends on the seat configuration. Single-piston-effect seats are self-relieving and vent cavity pressure back into the line automatically. Double-piston-effect seats do not relieve, so an external relief path — a relief valve on the cavity, a drilled ball, or a documented venting procedure — is required. Omitting cavity relief on a DPE arrangement is one of the most common and most serious specification errors in this product category.

How often should a DBB assembly be exercised and tested?

A quarterly to semi-annual full-stroke exercise is a reasonable baseline for critical isolation tags, tightened toward monthly on chemical feed service where a stuck valve creates an immediate exposure hazard. The seat integrity check — close both blocks, open the bleed, observe for repressurization — should be performed at every exercise cycle and logged, so that a gradually degrading seat is caught as a trend rather than discovered during an emergency.

Does a DBB valve satisfy lockout/tagout requirements on its own?

Not automatically. Whether a valve arrangement qualifies as an acceptable energy-isolating device depends on the plant’s written energy control procedure and the applicable OSHA requirements, not on the product label. A properly specified DIB assembly with a verified bleed and a lockable operator is commonly credited, while a self-relieving DBB valve often is not. The isolation intent should be established during specification and reflected in the procedure, rather than assumed at the point of use.

14. Conclusion

Double block and bleed ball valves are essential devices in managing fluid control and ensuring safety in various industries. Their unique design, which incorporates two isolation barriers and a bleeding mechanism, offers unparalleled safety and efficiency for maintenance operations. As technology develops, DBB ball valves will likely continue to improve, showcasing advancements in automation, material science, and data analytics.

In a world increasingly focused on safety, reliability, and efficiency, the relevance of DBB ball valves will remain paramount. Understanding their construction, operation, and maintenance can empower engineers and operators to deploy these vital components effectively and securely in an ever-evolving industrial landscape.

The decision framework reduces to a short sequence: define what the isolation must accomplish, screen the media for solids and chemical compatibility, set the pressure class and port, specify the seat arrangement and cavity relief explicitly, then size the actuation and confirm the certifications the service demands. Applied in that order, the specification follows from the duty rather than from the catalog.

With this detailed overview, readers should now possess a comprehensive understanding of double block and bleed ball valves, their importance, functionalities, and future outlook within the realm of fluid control technology.
